Fuel Filter: Service and Repair

FUEL FILTER

FUEL SENDER AND FUEL FILTER REPLACEMENT

1. Remove the fuel tank cap to lower the tank's internal pressure.

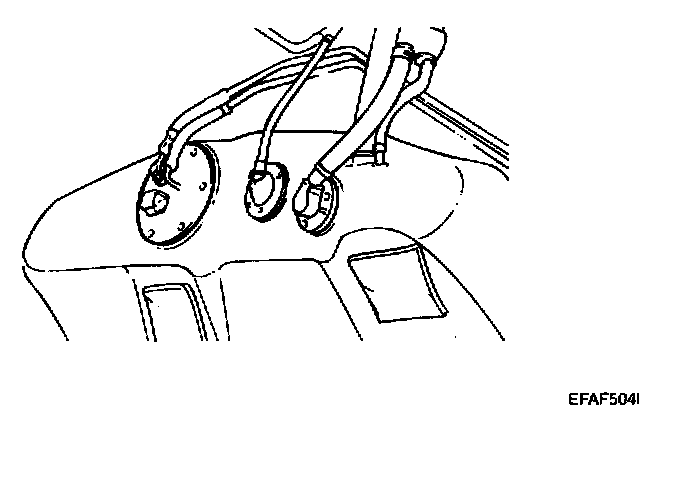

2. Disconnect the harness connector from the fuel sender.

3. Remove the fuel tank module installation screws, and then remove the fuel sender assembly from the fuel tank.
