Fuel Tank Pressure Sensor: Testing and Inspection

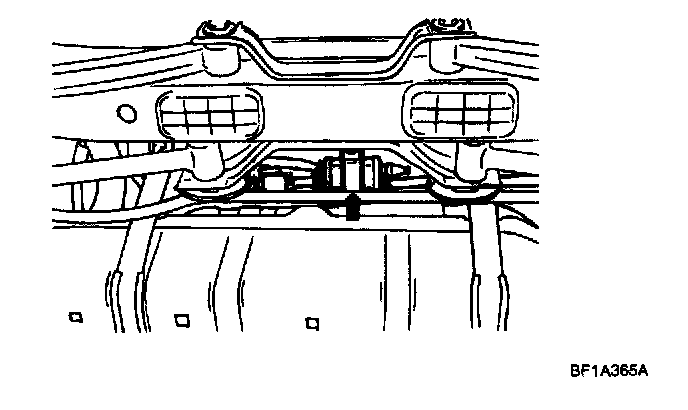

FUEL TANK PRESSURE SENSOR (FTPS)
The fuel tank pressure sensor is a pressure sensitive variable resistor that measures the change of pressure in the fuel tank to monitor for leaks It is used in the EVAP leak test monitoring with the canister close and purge solenoid valves.

Fuel Tank Pressure Sensor: Testing and Inspection

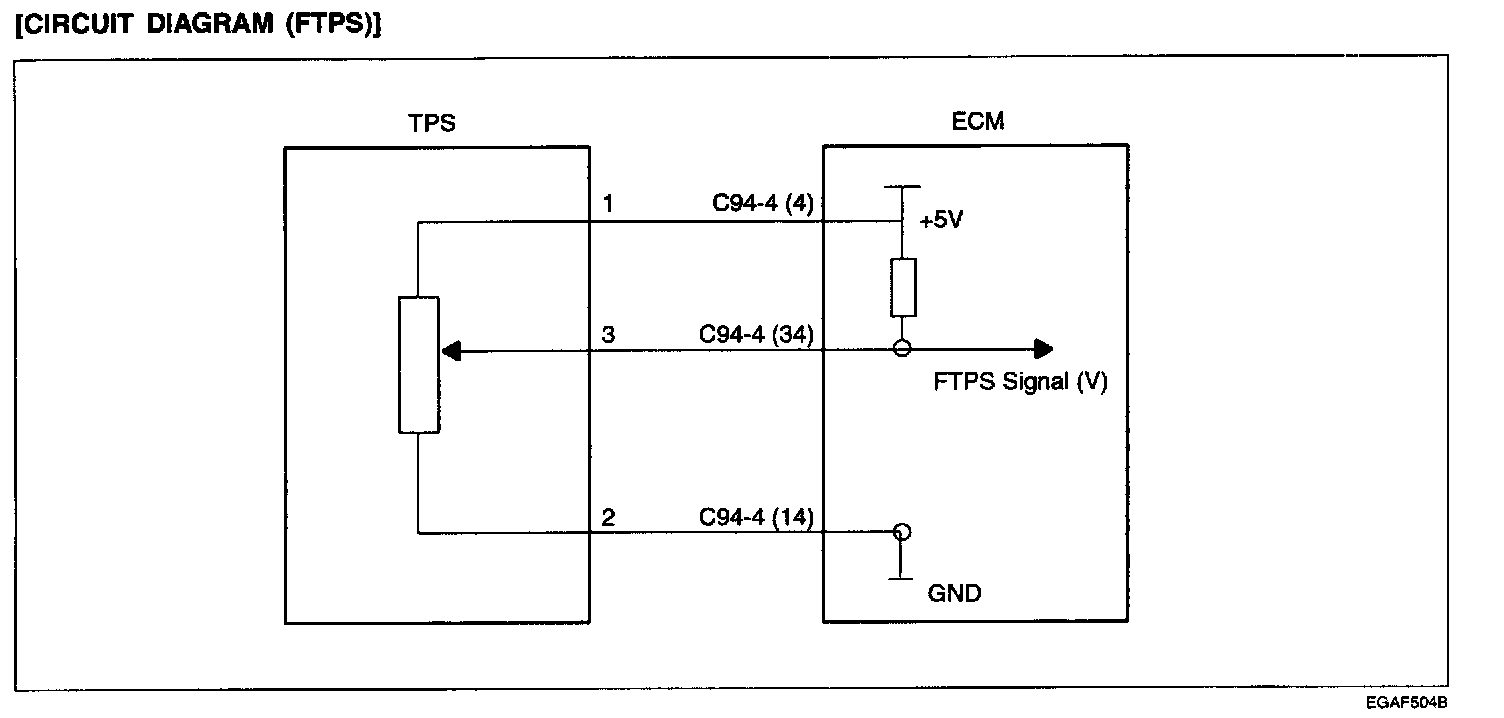

Circuit Diagram (FTPS):

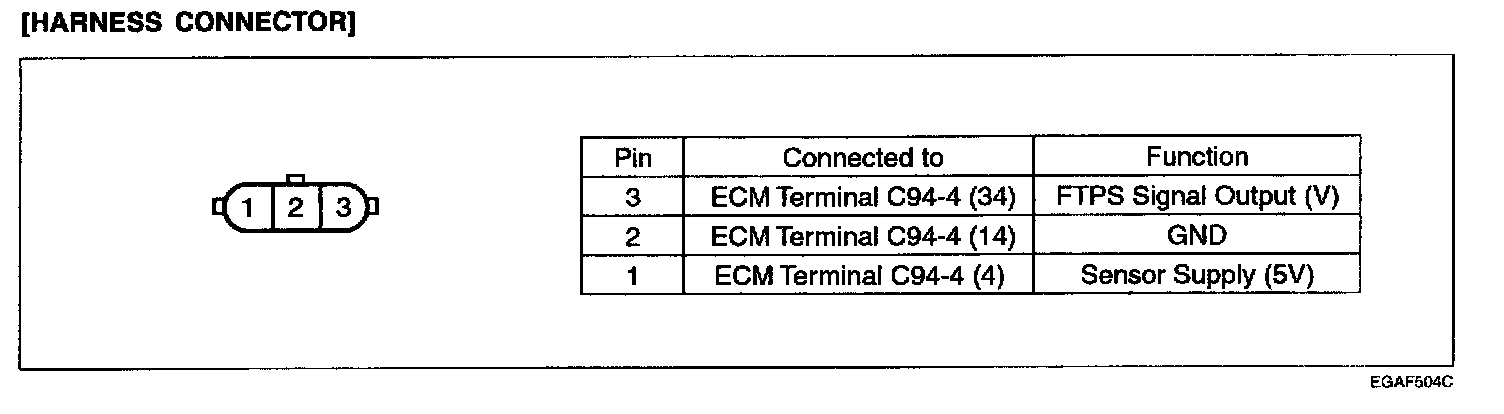

Harness Connector:

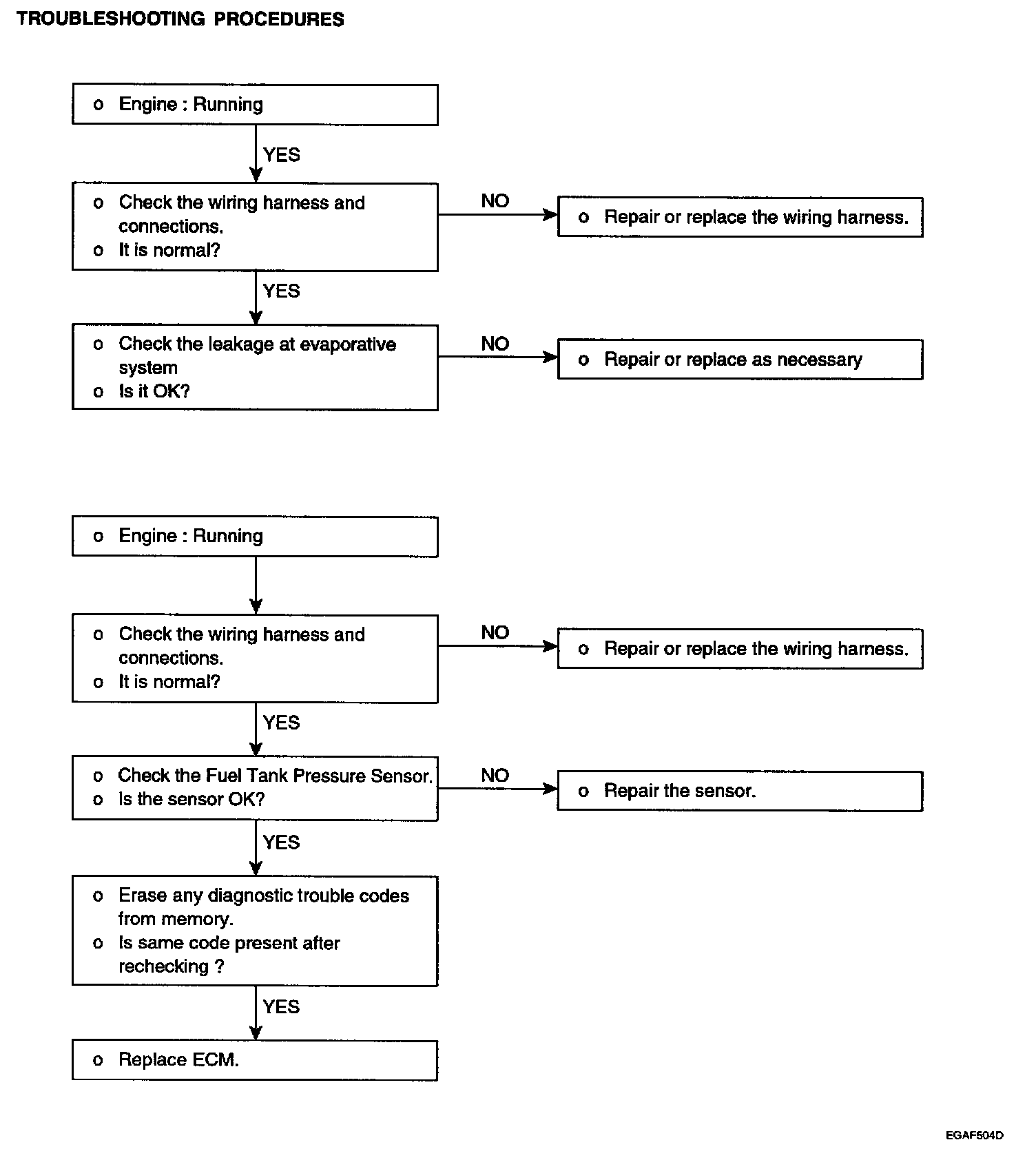

Troubleshooting Procedures:

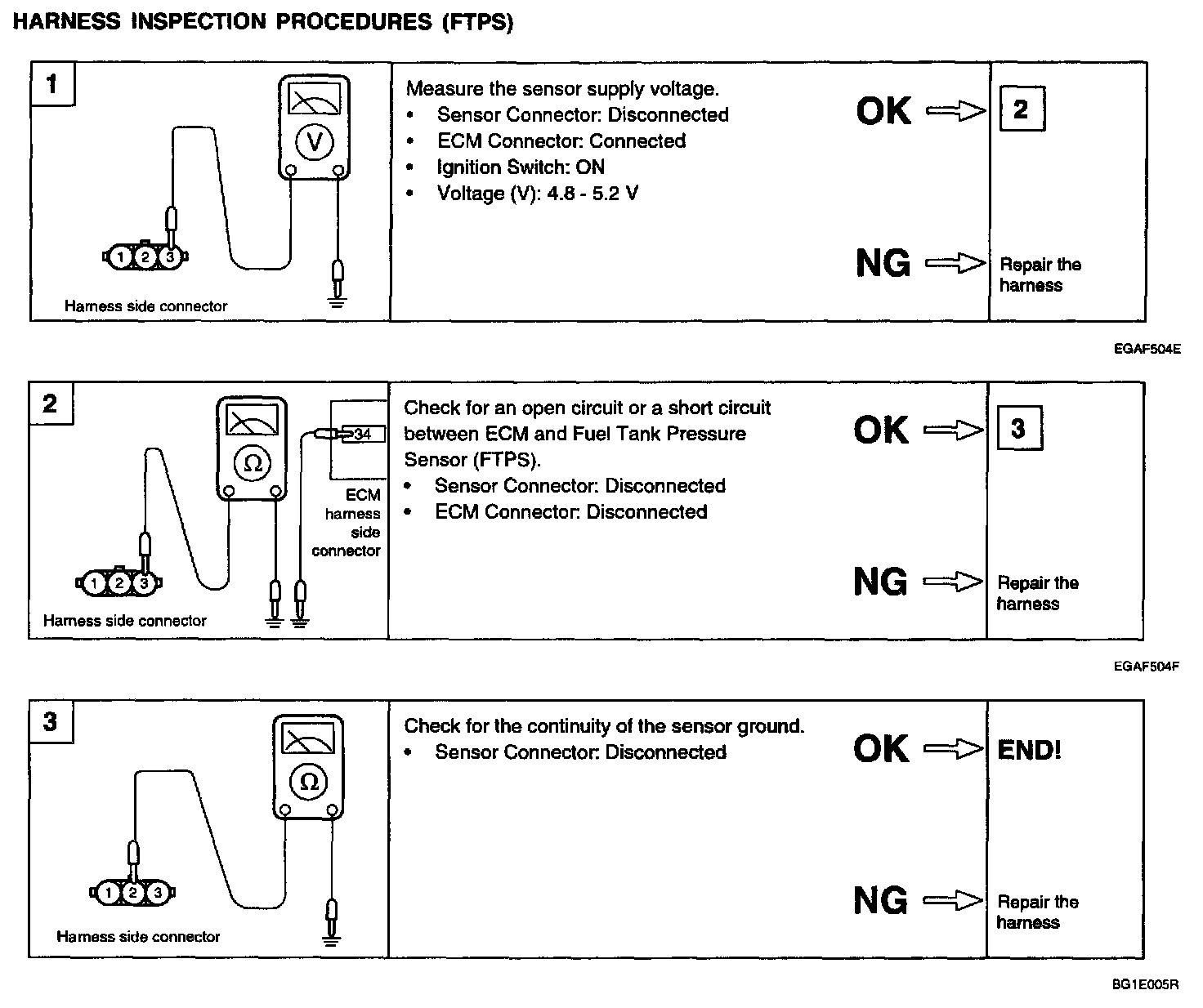

Harness Inspection Procedures (FTPS):
