Audible Warning Device Control Module: Service and Repair

ETACS MODULE INPUT SIGNAL TEST - 2

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the lower crash pad.

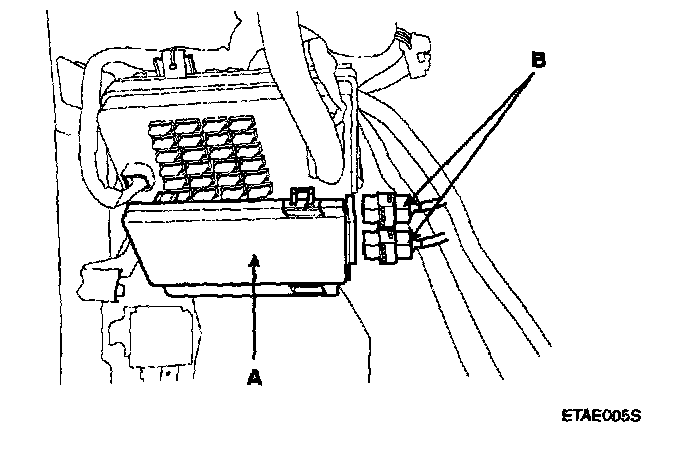

3. Remove the bolts holding the ETACS module(A) and disconnect the connectors(B).

4. Installation is the reverse of removal.
