Power Window Switch: Testing and Inspection

INSPECTION

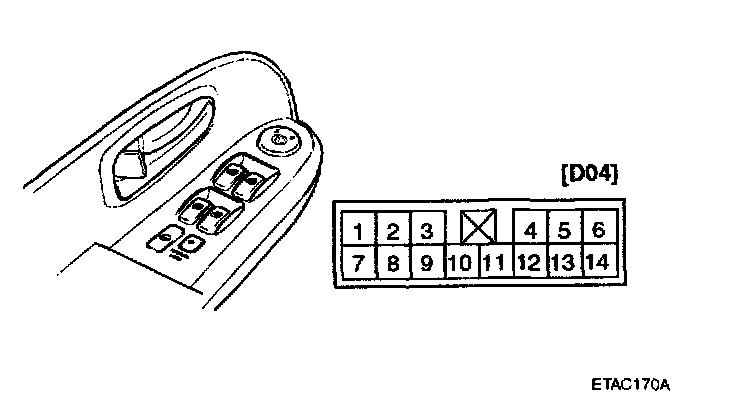

1. Remove the switch from the door trim panel.

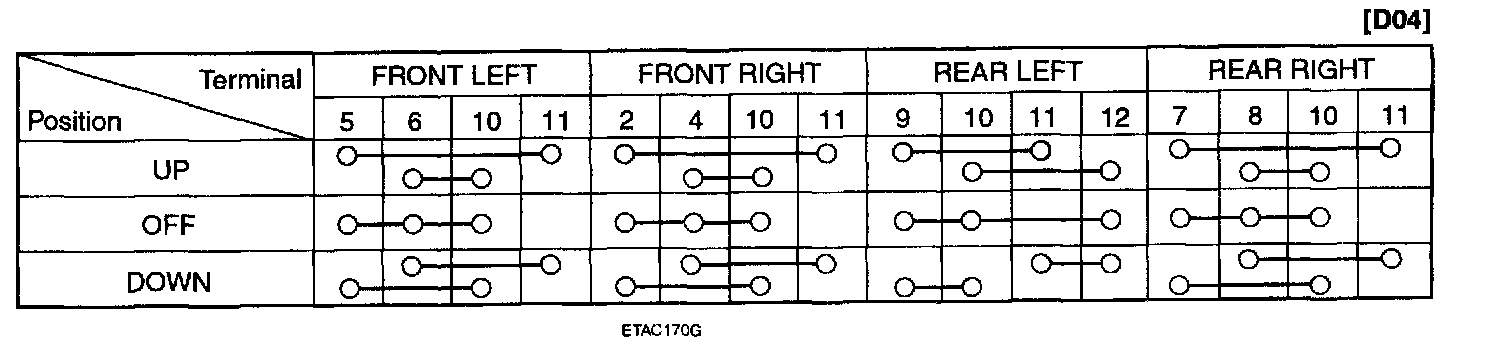

2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

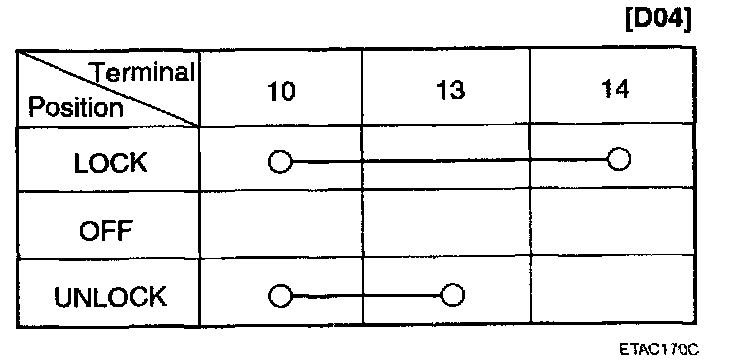

DOOR LOCK SWITCH

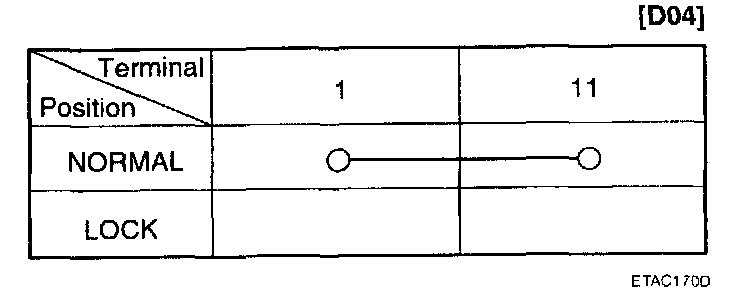

WINDOW LOCK SWITCH

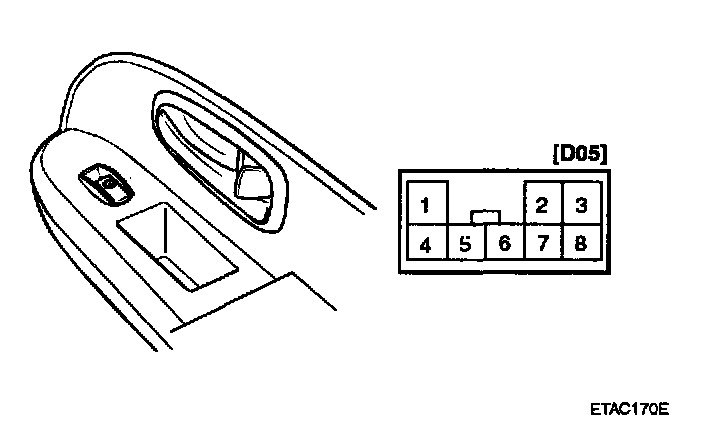

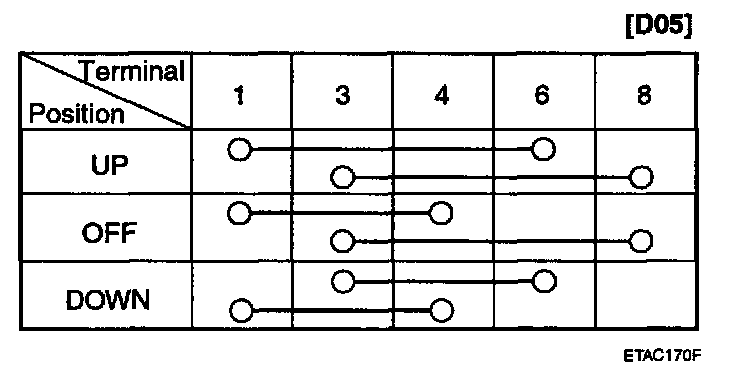

POWER WINDOW SUB SWITCH
