P0032
DTC P0032 HO2S Heater Circuit High (Bank 1 / Sensor 1)

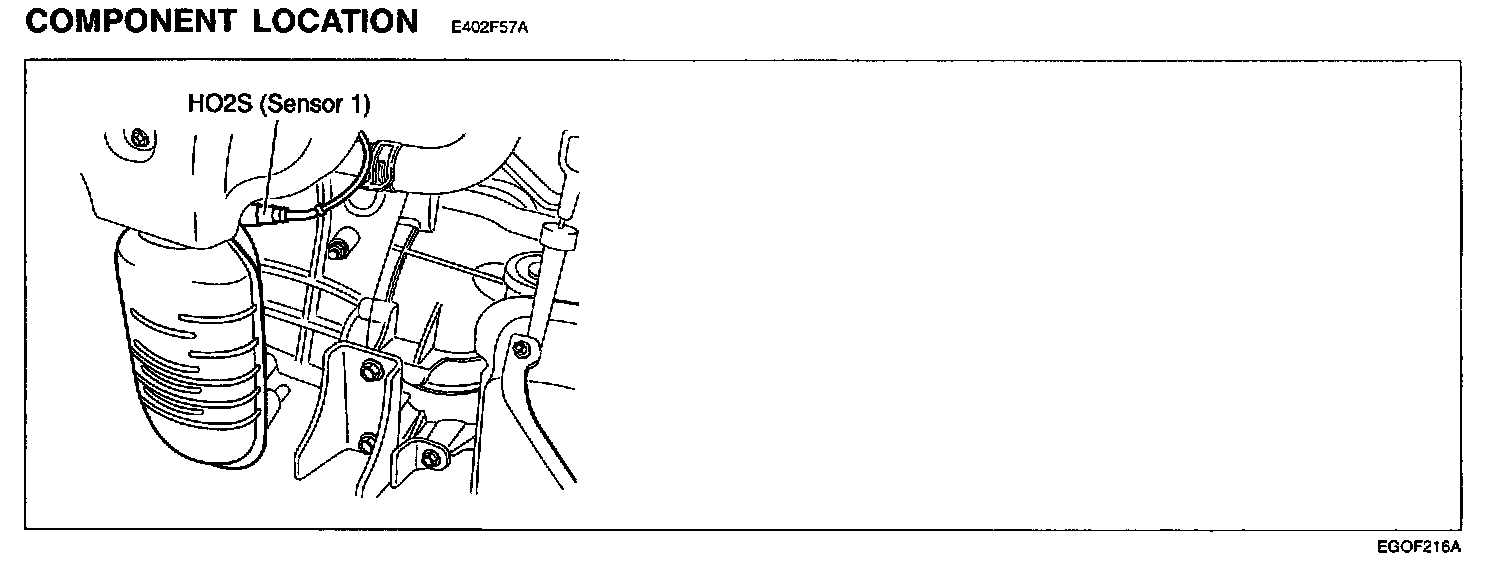

COMPONENT LOCATION
GENERAL DESCRIPTION
The normal operating temperature of the HO2S(Heated Oxygen Sensor) ranges from 350 to 850 °C (662 to 1562 °F). The HO2S heater greatly decreases the amount of time required for fuel control to become active. The PCM provides a pulse width modulated control circuit to adjust current through the heater. When the HO2S is cold, the value of the resistance is low and the current in the circuit is high. On the contrary, if the temperature in the resistor of the sensor rises, the current drops gradually.
DTC DESCRIPTION
PCM seats DTC P0032 if the PCM detects that the front HO2S heater control line is open or short to battery circuit.

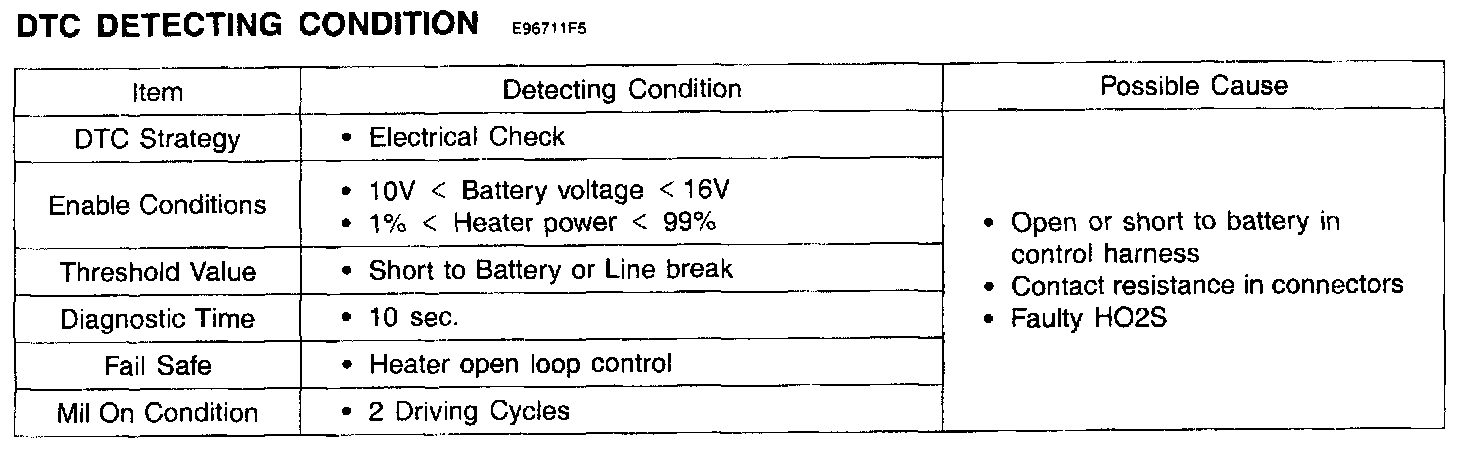

DTC Detecting Condition:

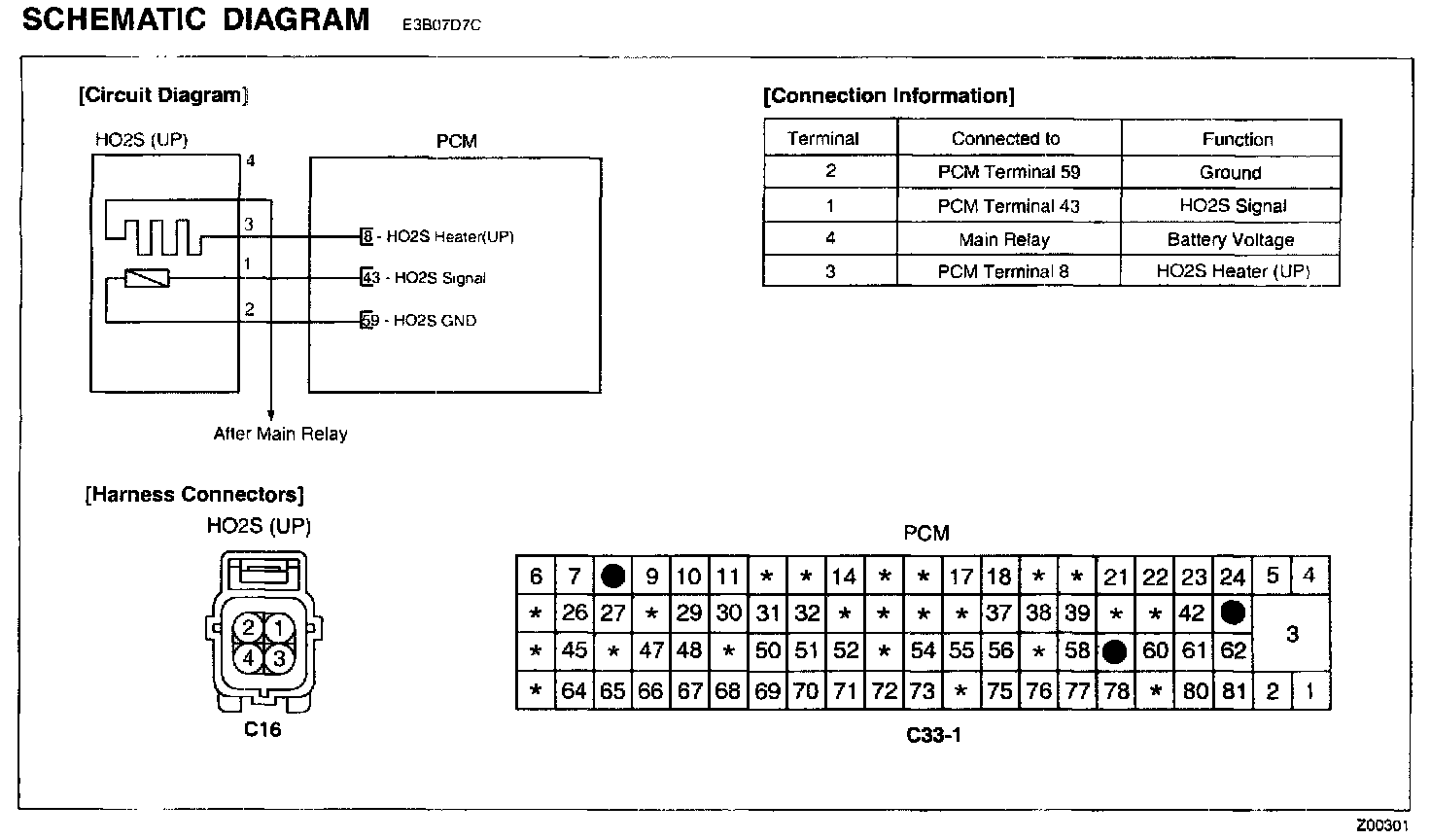

Schematic Diagram:

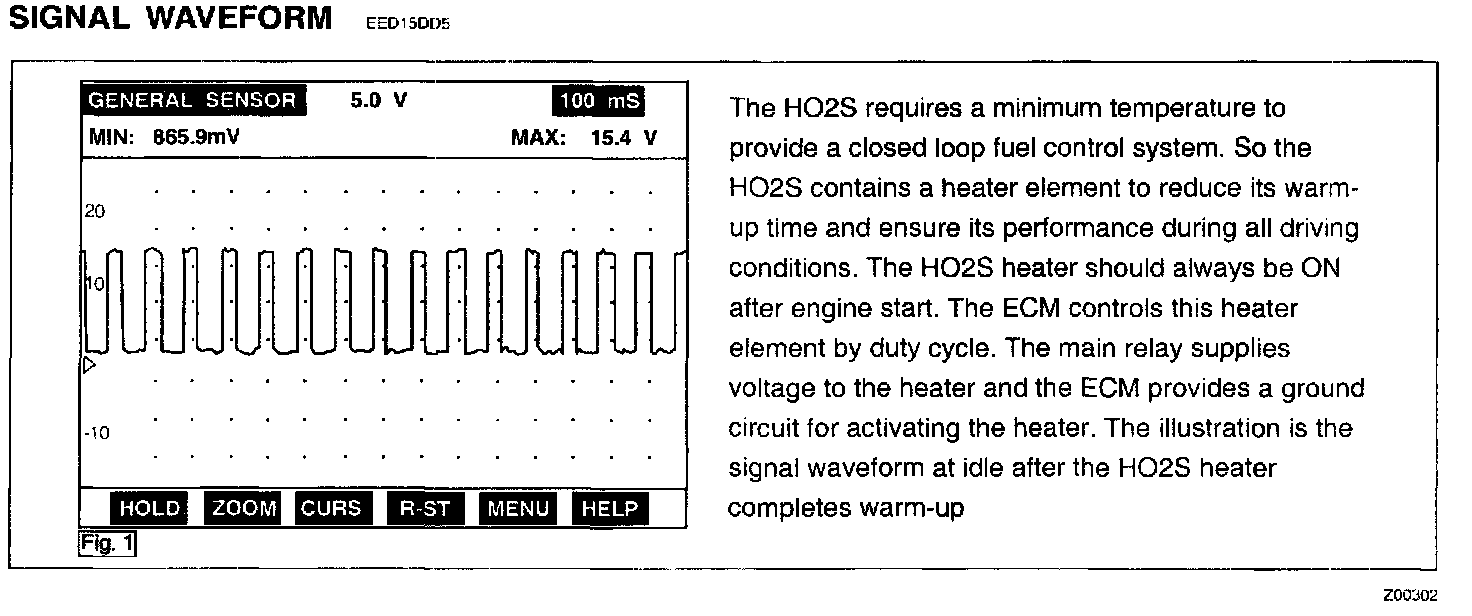

Signal Waveform:
MONITOR DTC STATUS

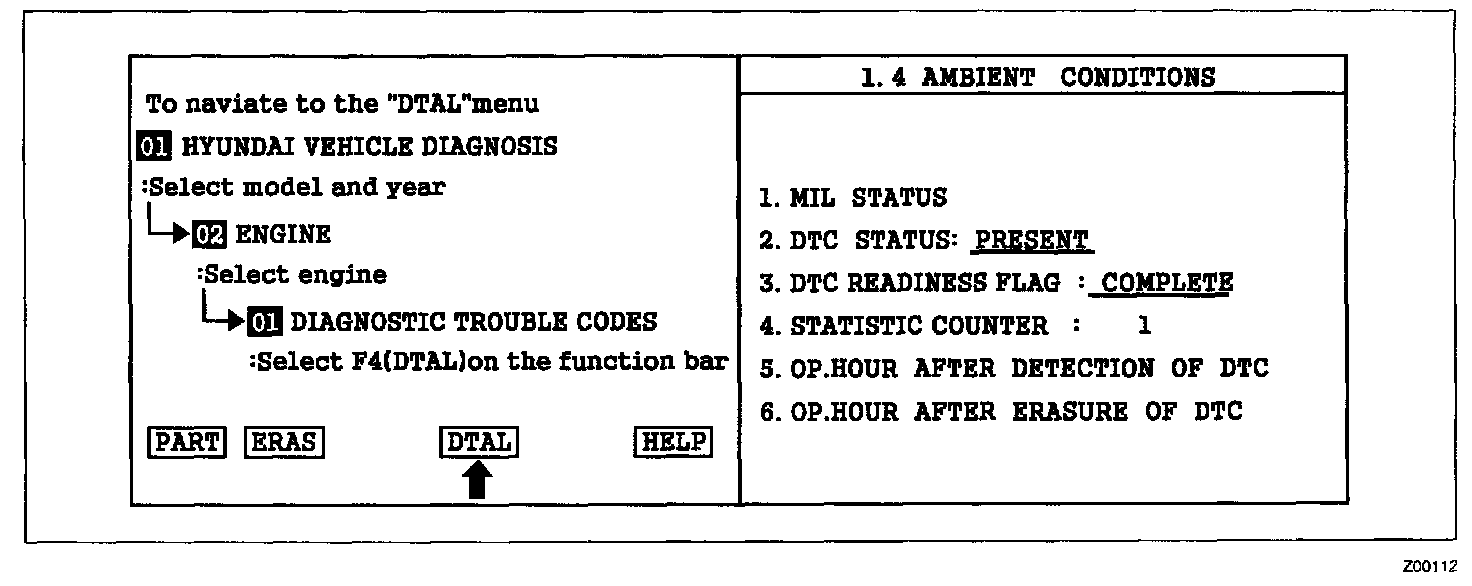

1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Press F4(DTAL) to select DTC information from the DTCs menu
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
4. Read "DTC Status" parameter
5. Is parameter displayed "History (Not Present) fault"?
NOTE:
1. History (Not Present) fault: DTC occurred but has been cleared.
2. Present fault: DTC is occuring at present time.
YES: Fault is intermittent caused by poor contact in the sensor's and/or PCM'S connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure
NO: Go to next step as below.
TERMINAL AND CONNECTOR INSPECTION
1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES: Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO: Go to "Power Supply Circuit Inspection" procedure.
CONTROL CIRCUIT INSPECTION
1. Check for open in control harness.
1. Ignition "OFF".
2. Disconnect HO2S and PCM connectors.
3. Measure resistance between terminals 3 of the HO2S heater harness connector and B of the PCM harness connector.
Specification: Approx 0 ohms
4. Is resistance within the specification?
YES: Go to next step as below
NO: Repair as necessary and go to "Verification of Vehicle Repair" procedure.
2. Check for short to battery in control circuit.
1. Reconnect the PCM connector.
2. Ignition "ON" & Engine "OFF"
3. Measure voltage between terminal 3 of the HO2S heater harness connector and chassis ground.
Specification: Approx 0 V
4. Is voltage within the specification?
YES: Go to "Component Inspection" procedure
NO: Repair as necessary and go to "Verification of Vehicle Repair" procedure.
COMPONENT INSPECTION
1. Ignition "OFF".

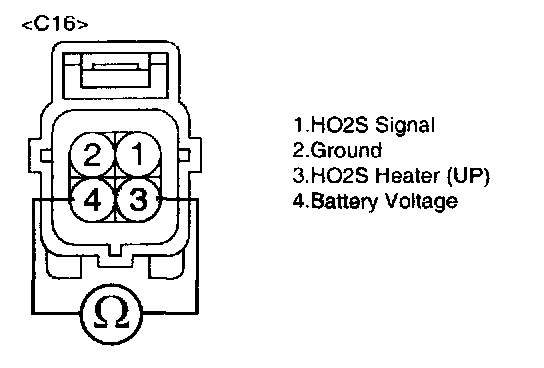

2. Measure resistance between terminals 3 and 4 of the sensor connector (Component side).

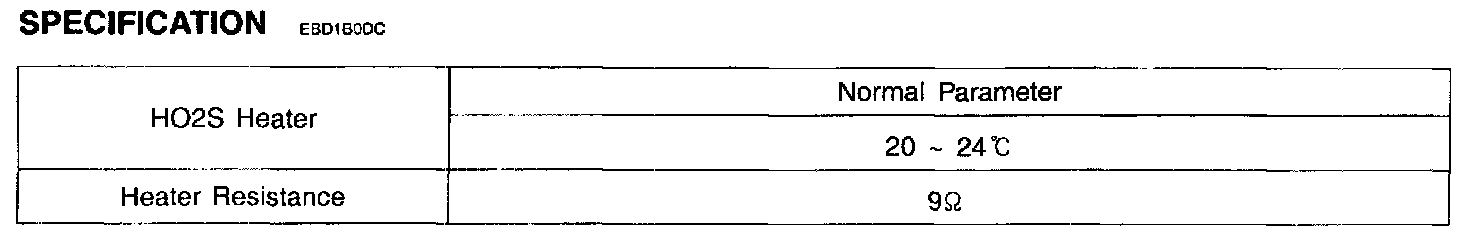

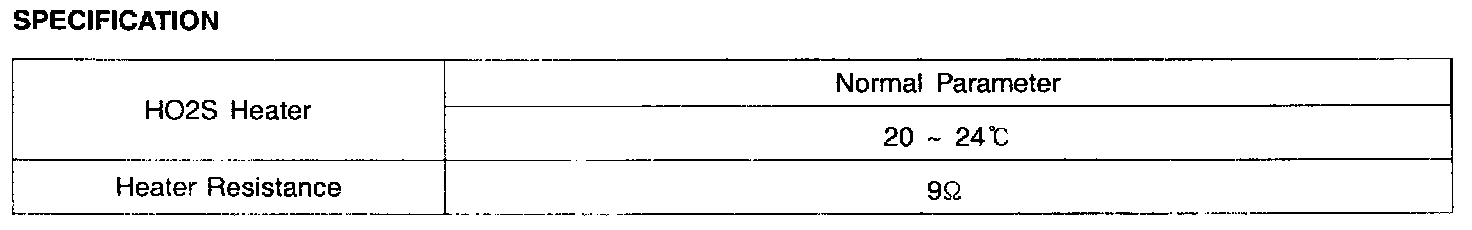

3. Is HO2S heater resistance display near the specified value?
YES: Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO: Check HO2S for contamination, deterioration, or damage. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to "Verification of Vehicle Repair" procedure.
VERIFICATION OF VEHICLE REPAIR
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Press F4(DTAL) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
3. Read "DTC Status" parameter
4. Is parameter displayed "History (Not Present) fault"?
YES: System performing to specification at this time. Clear the DTC
NO: Go to the applicable troubleshooting procedure.
