Hood: Adjustments
HOOD HINGE1. Loosen the hood hinge mounting bolt.
2. Adjust the longitudinal and lateral positions of the hood by utilizing the holes in the hinge.

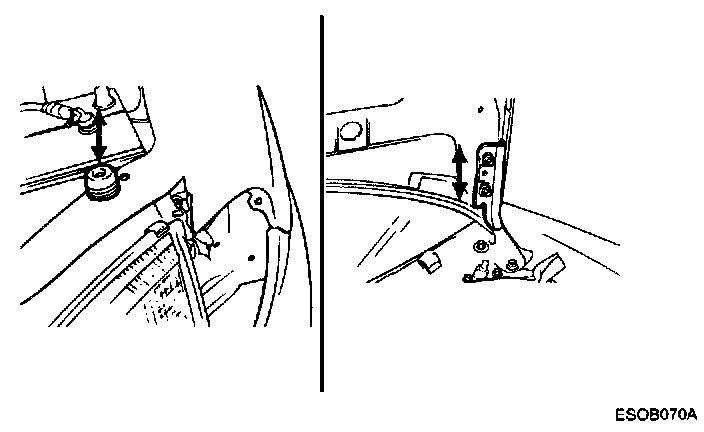

3. Adjust front edge of hood in vertical direction by adjusting the hood stop and adjusting bumpers.

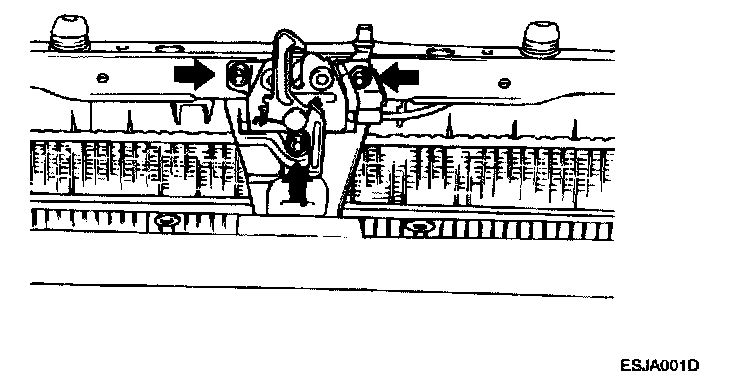

HOOD LATCH
1. Loosen the hood lock mounting bolts.
2. Adjust the alignment of the hood latch by adjusting the vertical and lateral position of the lock and by adjusting the height of the hood.
