Removal

REAR HUB / CARRIER

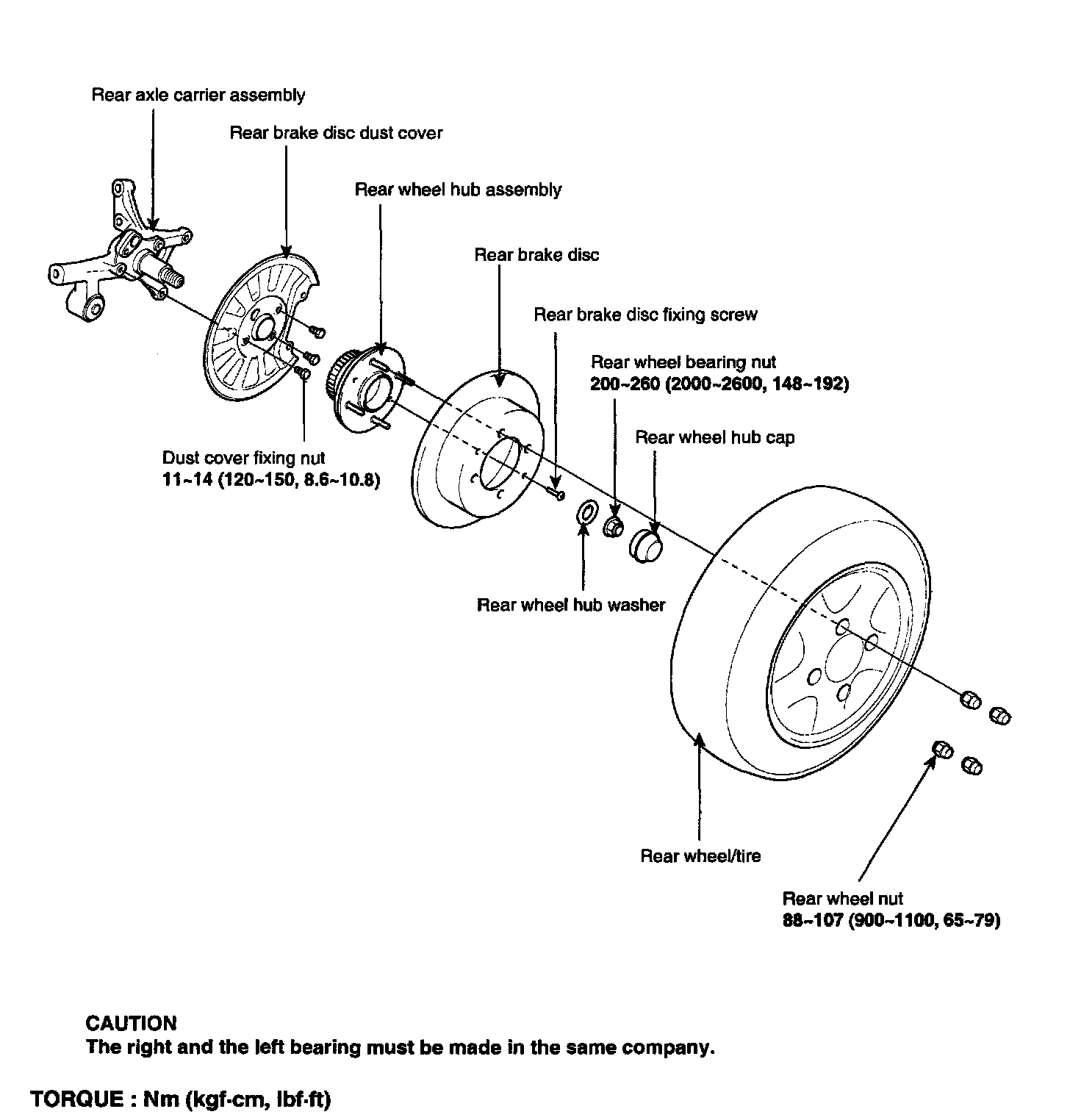

COMPONENTS

REMOVAL
1. Remove the rear wheel speed sensor (for vehicles equipped with ABS (Anti-lock Brake System)).

CAUTION: When removing the speed sensor from the adapter, be careful so that the end of the pole piece doesn't strike teeth on the rotor or other components.

2. Remove the caliper assembly and suspend it with a wire.
3. Remove the brake disc.
4. Remove the hub cap, wheel bearing nut and tongue washer.





5. Remove the hub assembly.

CAUTION:

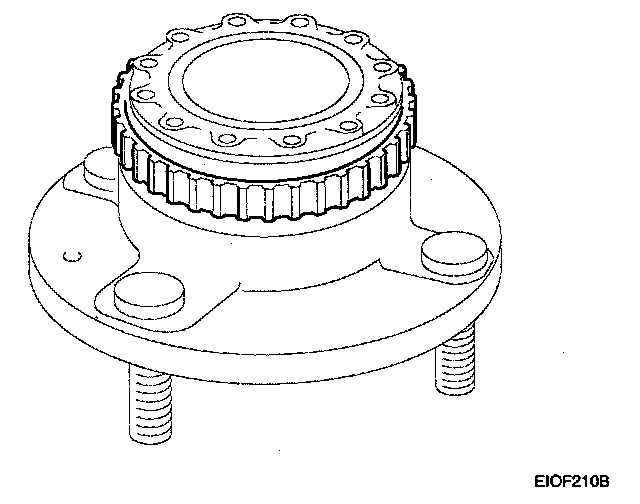

^ The rear hub assembly should not be disassembled.
^ (For vehicles equipped with ABS (Anti-lock Brake System))
Care must be taken not to scratch or damage the teeth of the rotor. The rotor must never be dropped. If the teeth of the rotor are chipped, it results in deformation of the rotor. It will make it impossible to detect the wheel rotation speed accurately and to operate the system normally.
