Air Register: Service and Repair

AIR VENT REPLACEMENT

1. Wrap a flat-tip screwdriver with protective tape, and apply protective tape around the related parts to prevent damage. Take care not to scratch the crash pad and related parts.

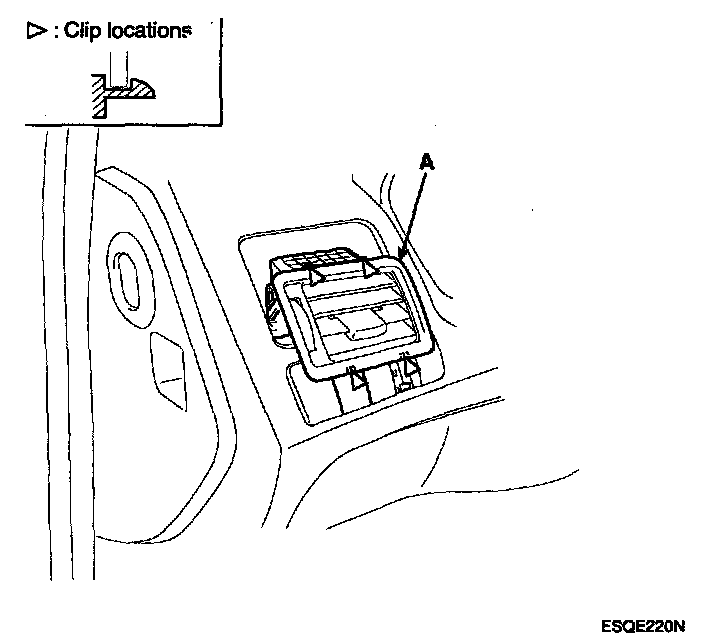

2. Remove the air vent (A) by detaching the clips.






3. Reinstall the hook portions of the vent first, then push the clip portions into place securely.
