Automatic Transmission/Transaxle

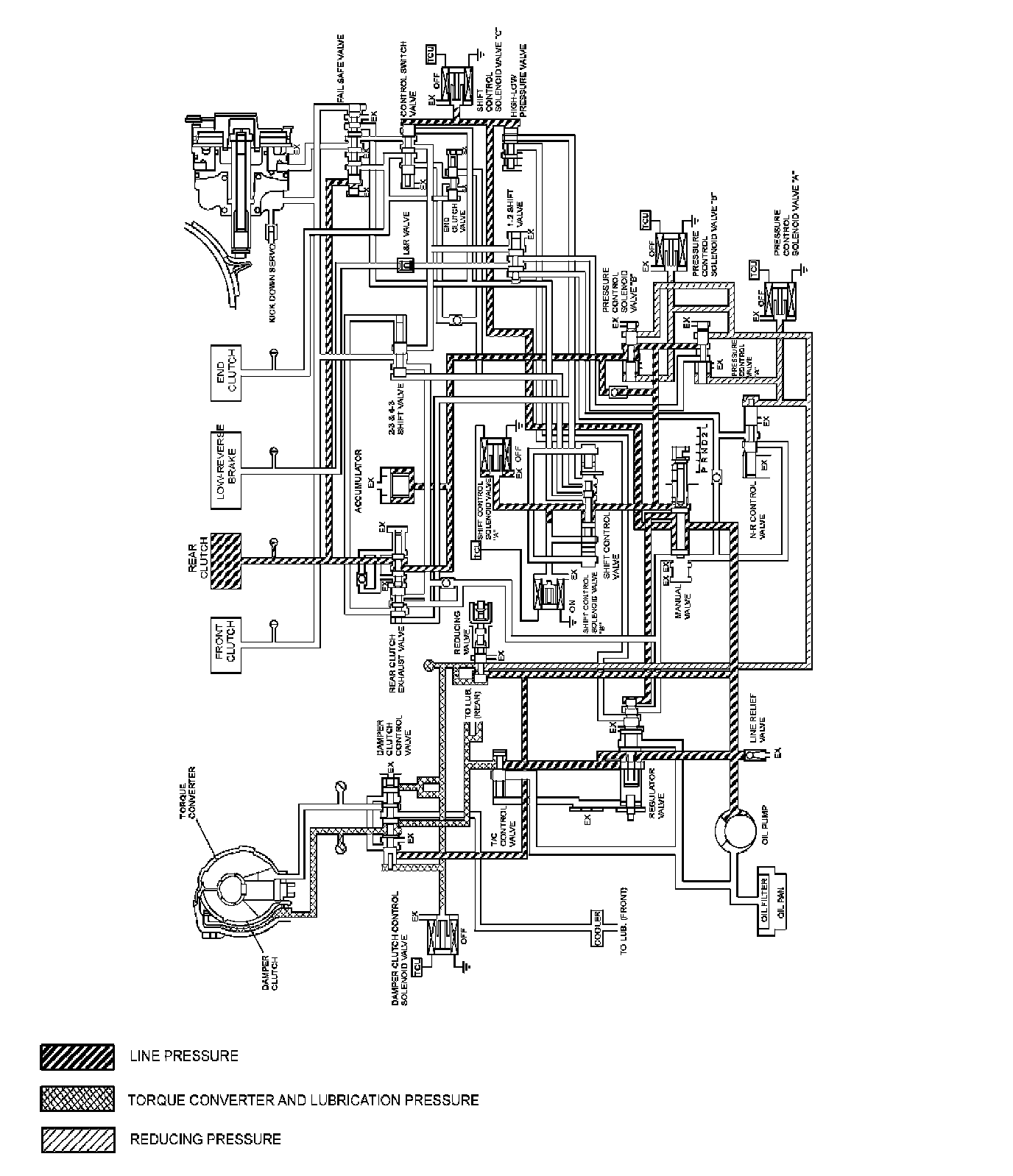

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT
PARKING AND NEUTRAL:
D RANGE (1ST):
D RANGE (2ND):
D RANGE (3RD):
D RANGE (4TH):
LOCK:
REVERSE:
