Body Control Module: Service and Repair

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

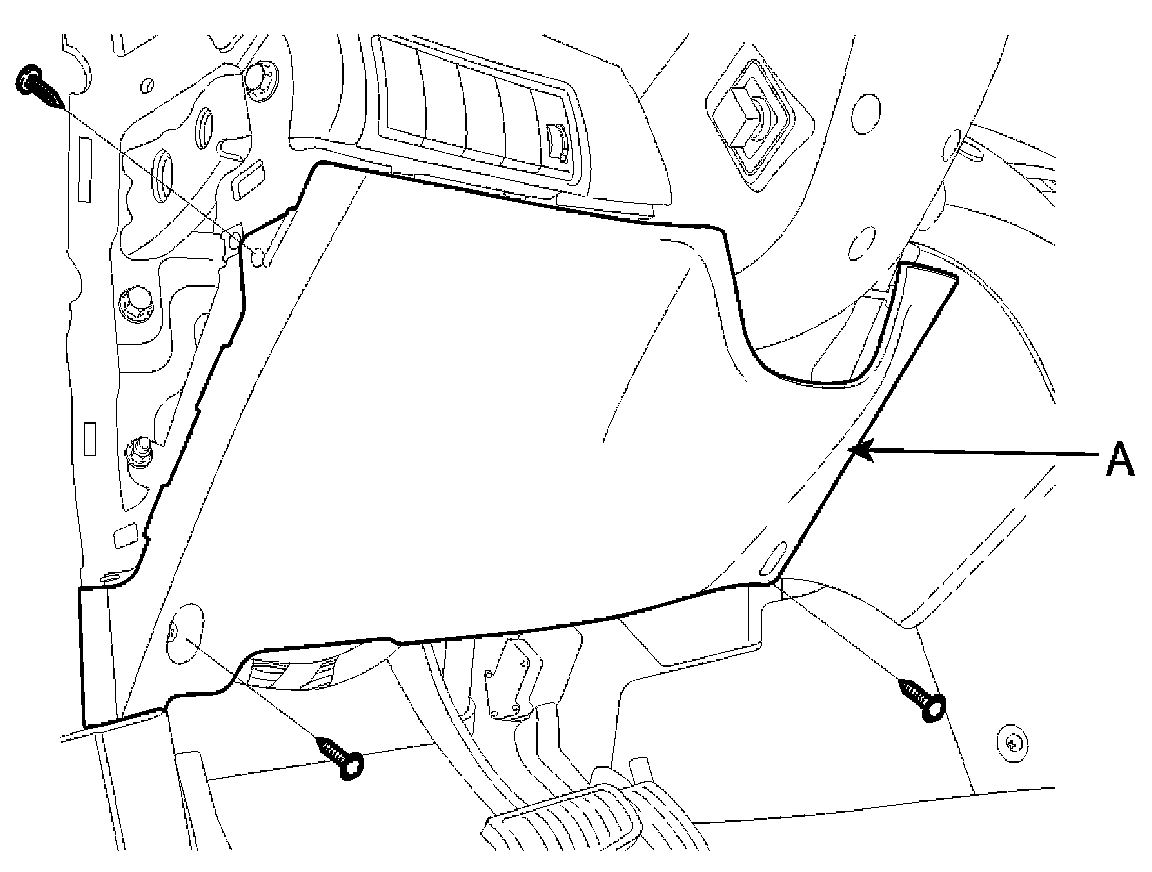

2. Remove the crash pad lower panel (A). Avoid damaging retaining clip.

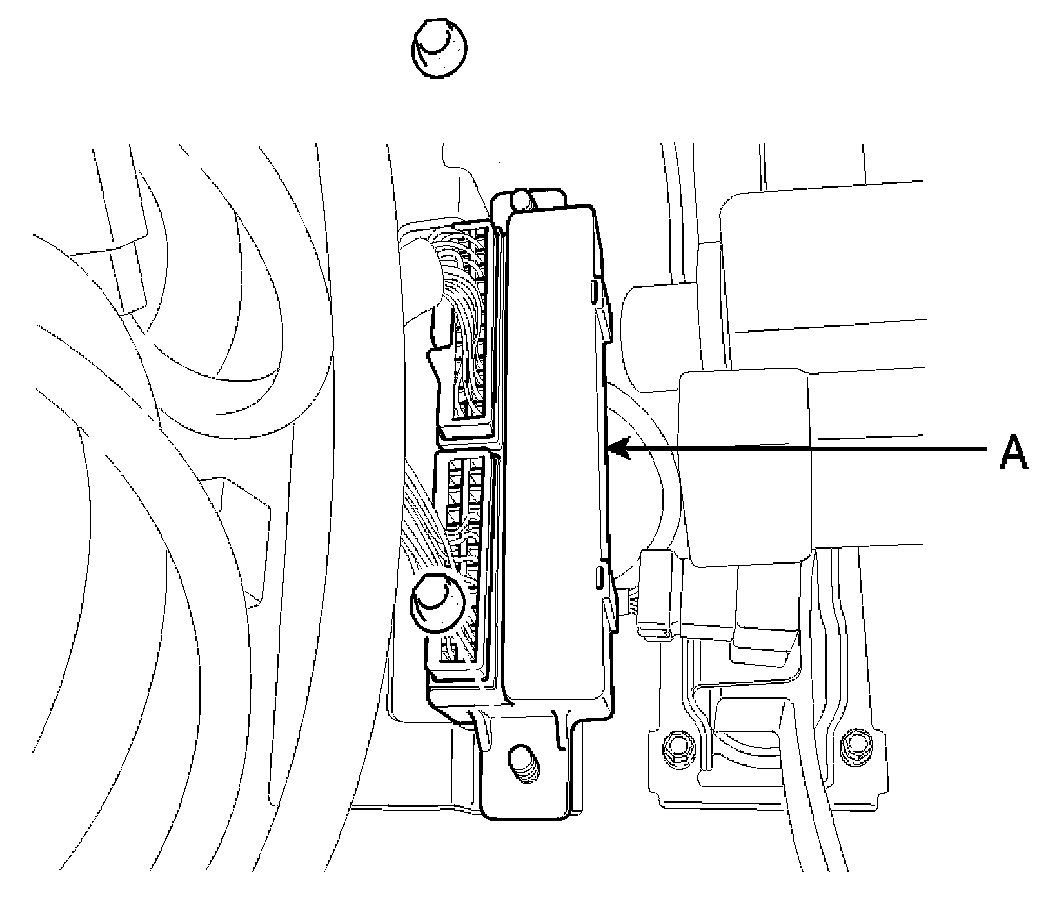

3. Remove ICM relay connector and 2 nuts.

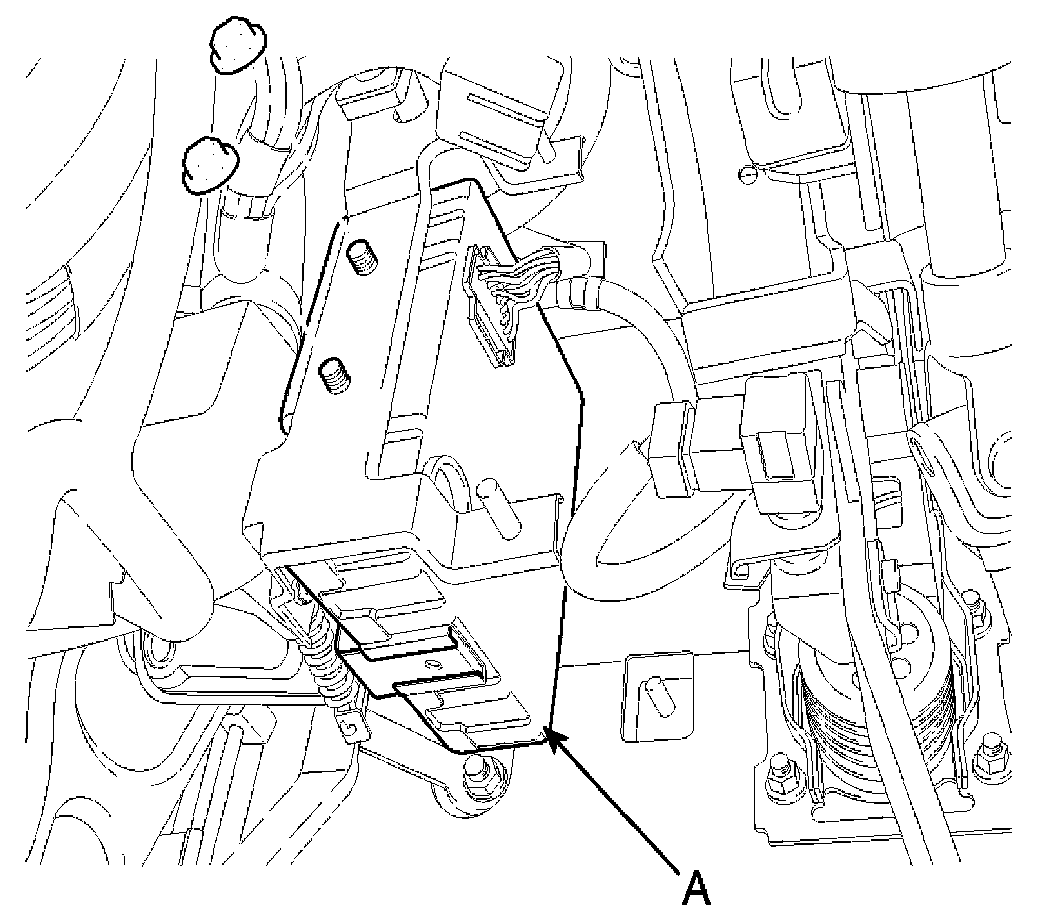

4. Remove the body control module (A) and tilt & telescope unit after loosening 2 nuts and disconnecting connector.

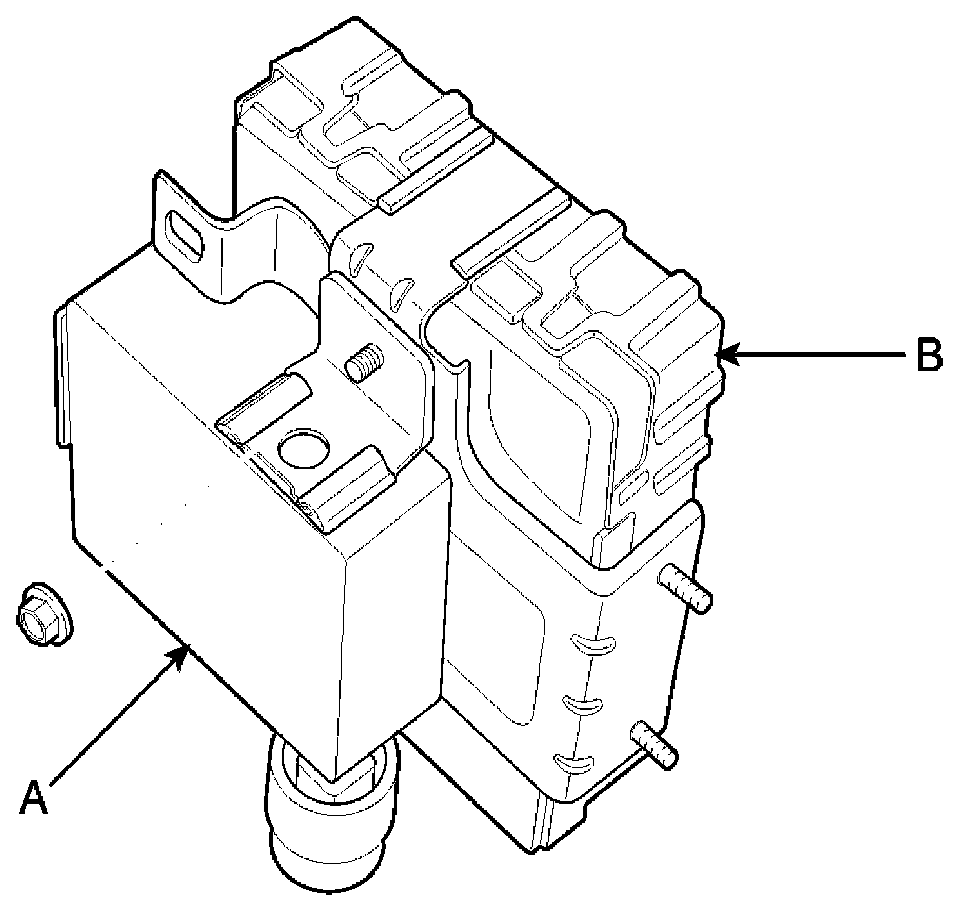

5. Remove the body control module (B) from the tilt & telescope unit (A) after loosening a bolt.
6. Installation is the reverse of removal.
