Automatic-Dimming Function
AUTOMATIC-DIMMING FUNCTIONREPLACEMENT 1.

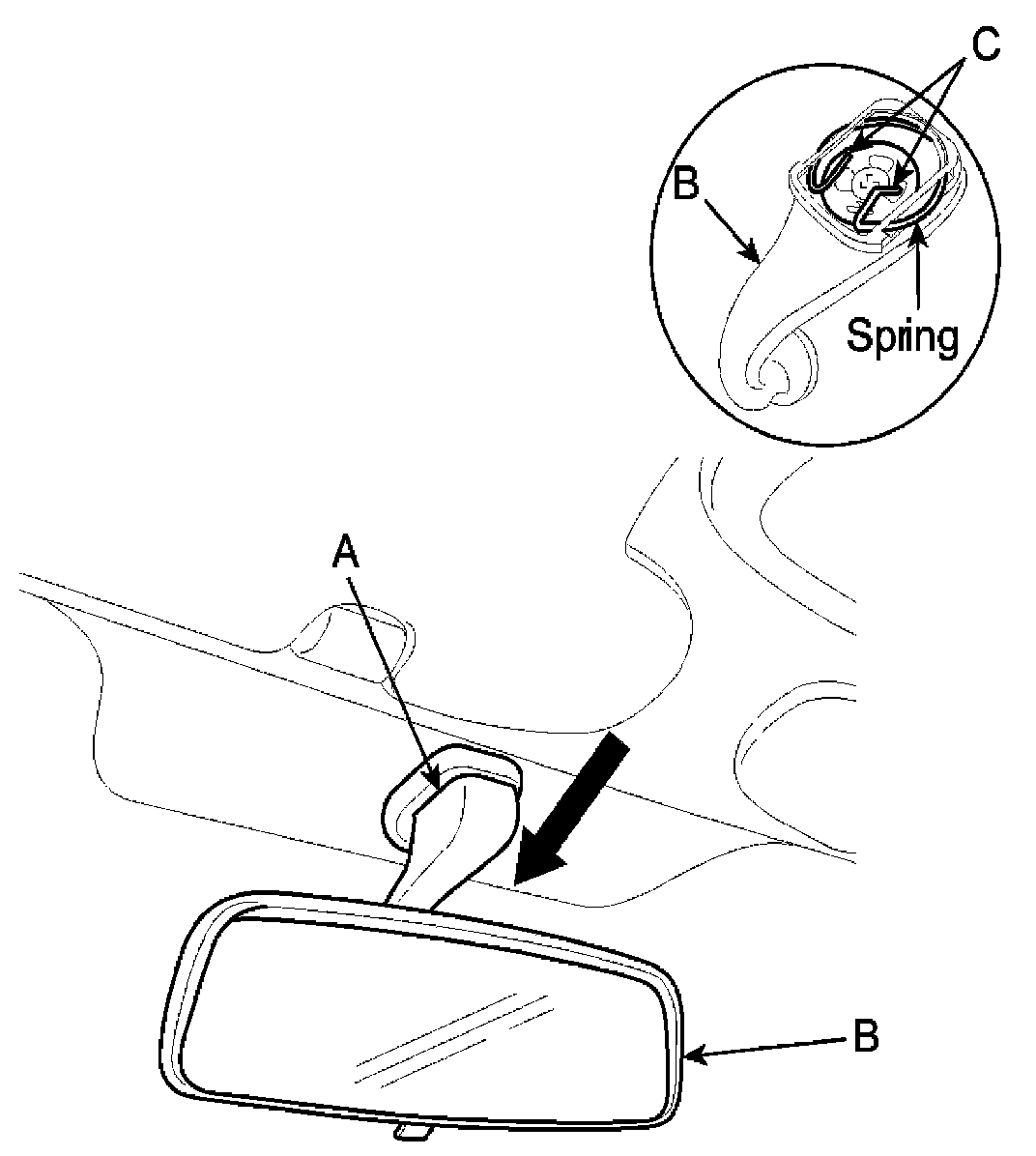

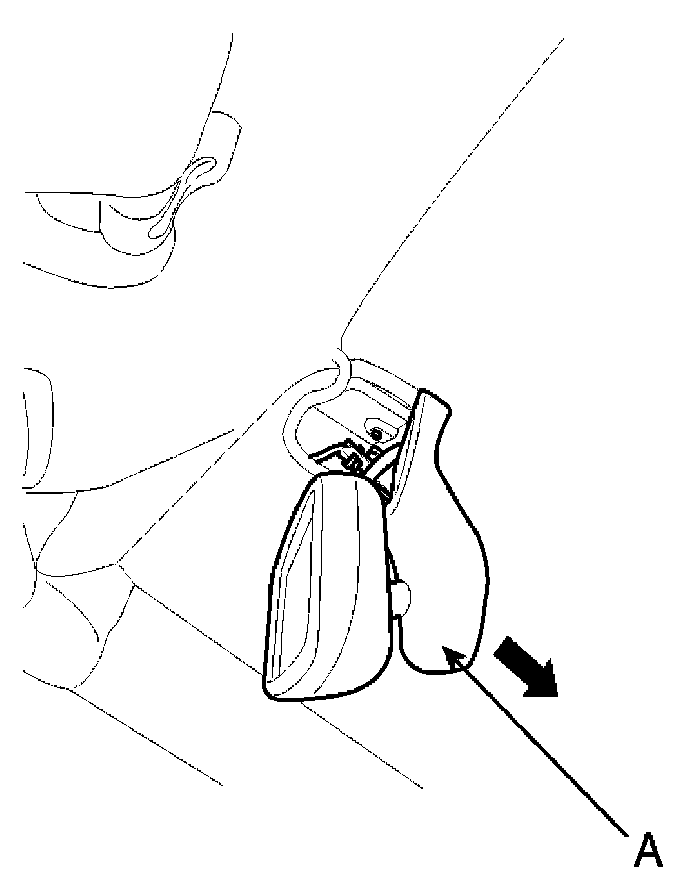

Push the inside rear view mirror base down to remove the inside rear view mirror assembly (A) after removing the mirror wire cover.
NOTE: Mirror it adheres closely in the mirror base (A) and it separates while removing the mirror (B). Make sure the spring mounting bracket (C) of the mirror not to be damaged.
2.
Installation is the reverse of removal.
