ABS Control

ABS CONTROL

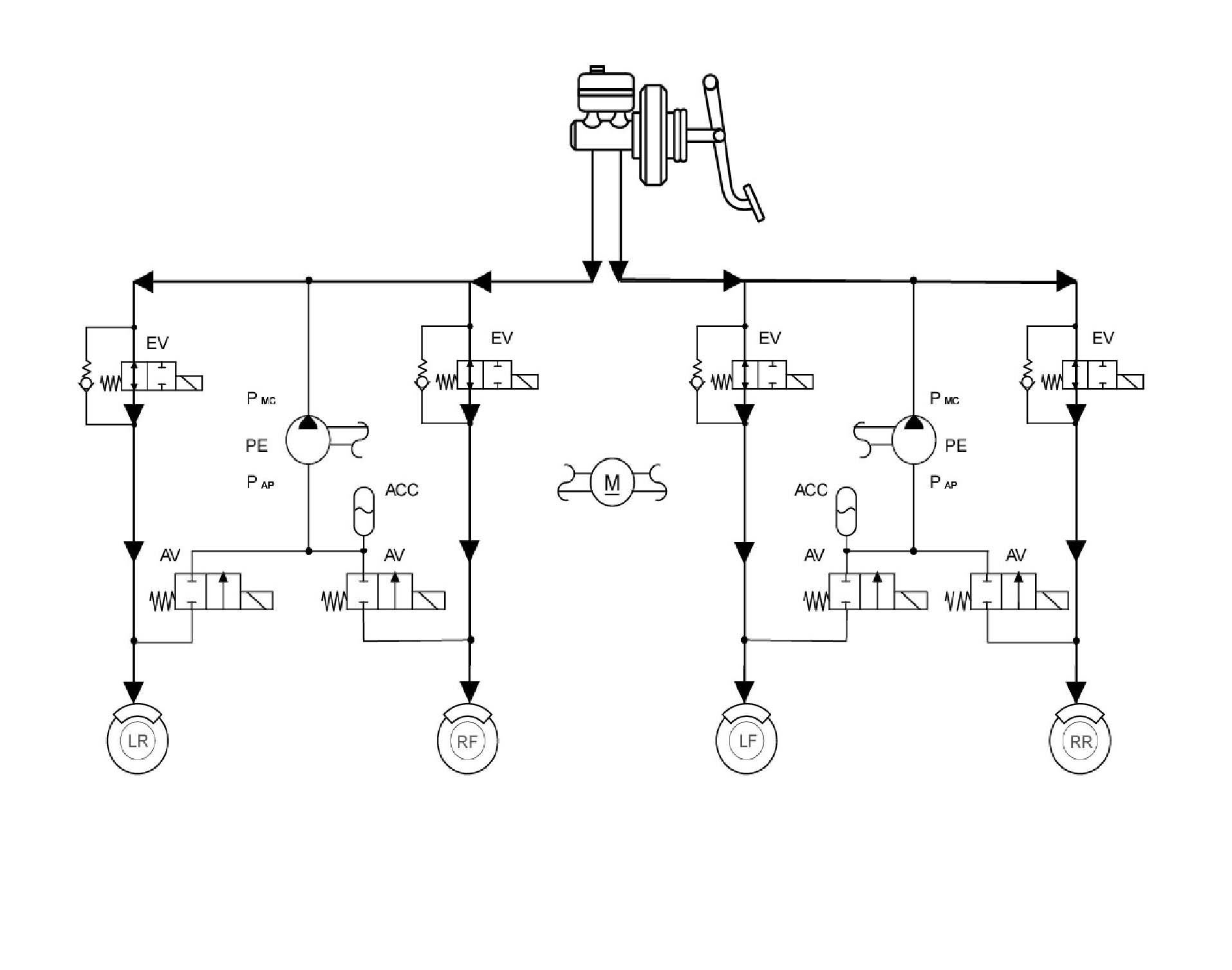

1. NORMAL BRAKING without ABS








NOTE: EV: Inlet Valve AV: Outlet Valve LR: Rear left wheel RF: Front right wheel LF: Front left wheel RR: Rear right wheel PE: Pump motor

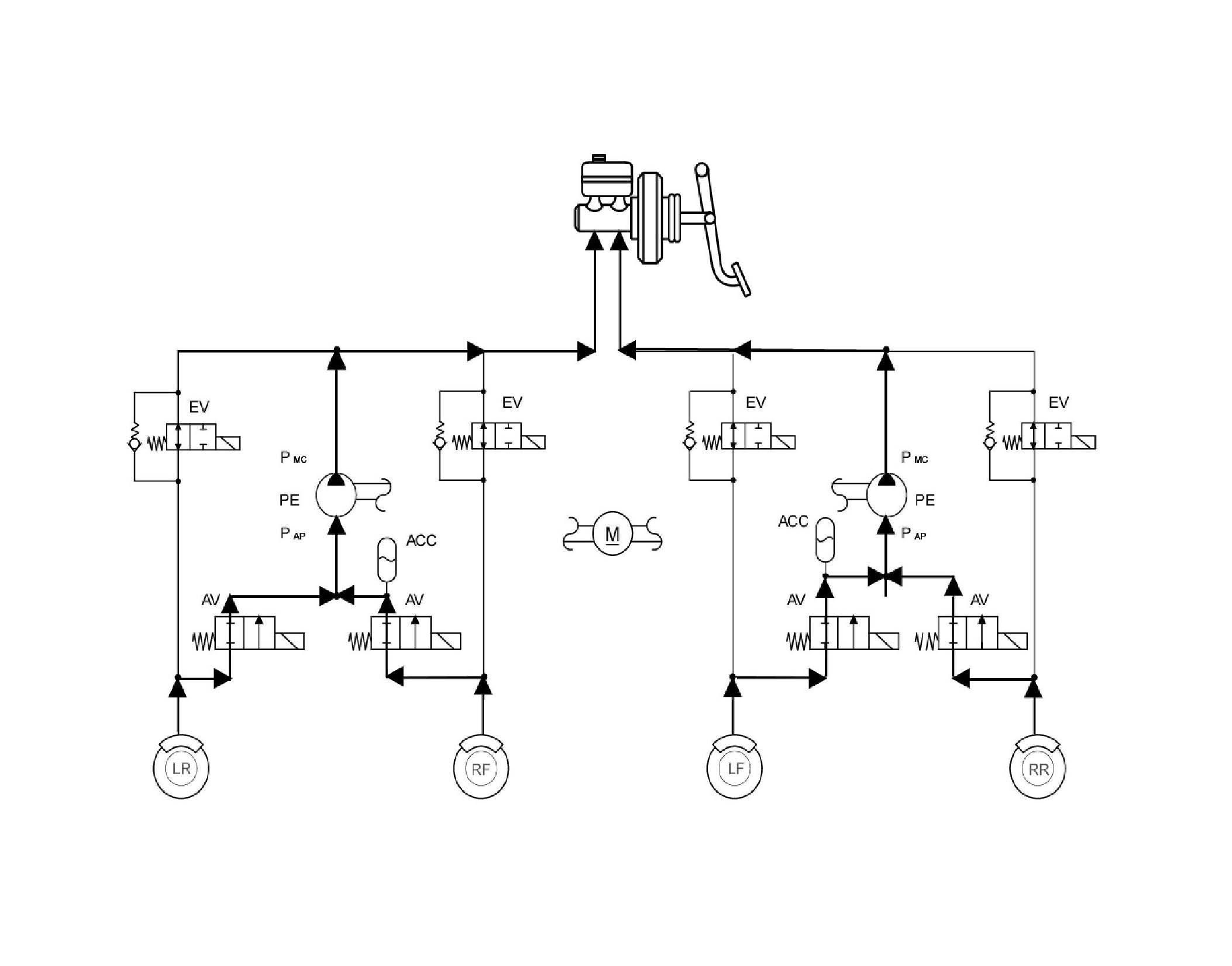

2. DECREASE MODE








NOTE: EV: Inlet Valve AV: Outlet Valve LR: Rear left wheel RF: Front right wheel LF: Front left wheel RR: Rear right wheel PE: Pump motor

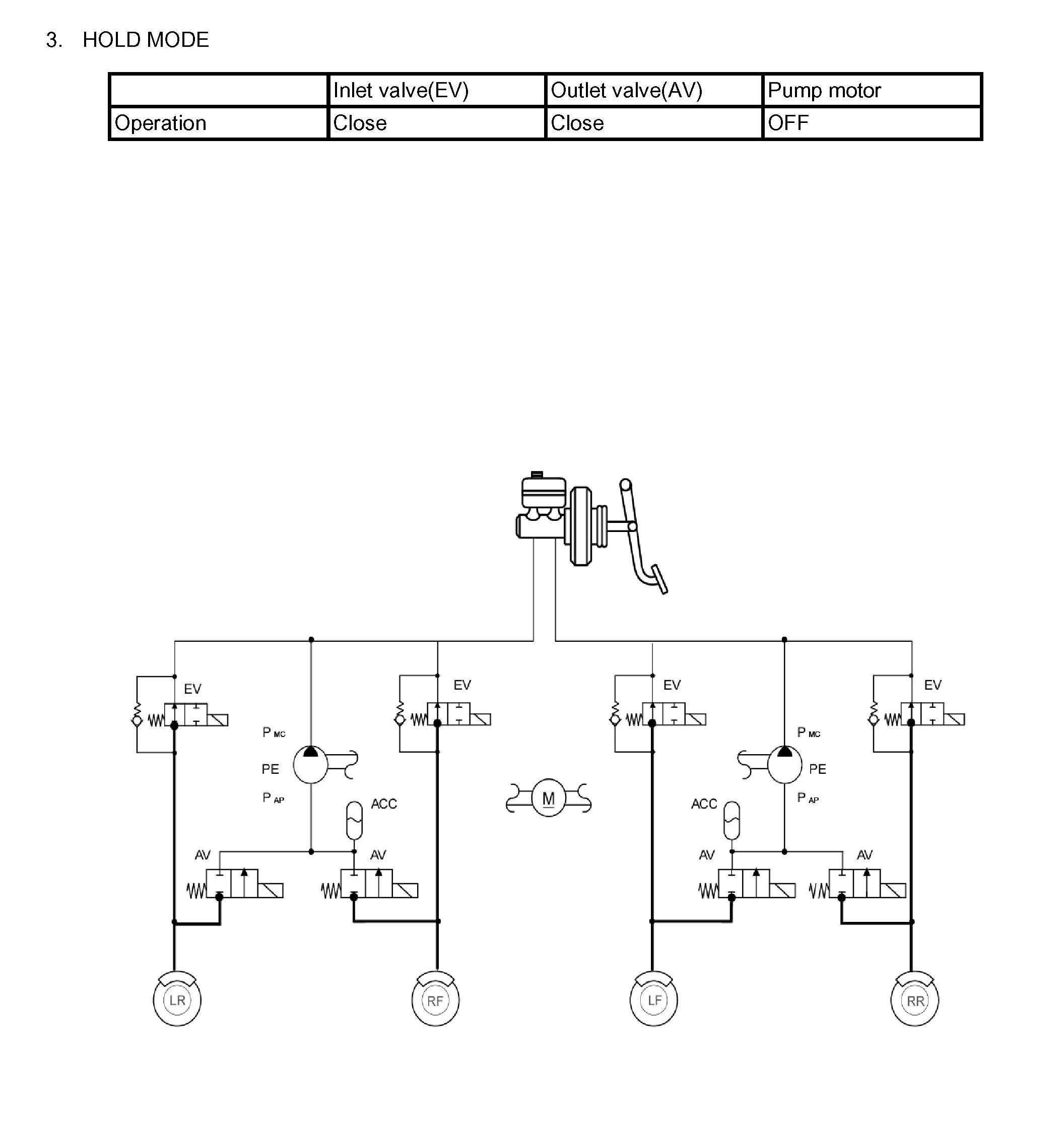

3. HOLD MODE





NOTE: EV: Inlet Valve AV: Outlet Valve LR: Rear left wheel RF: Front right wheel LF: Front left wheel RR: Rear right wheel PE: Pump motor

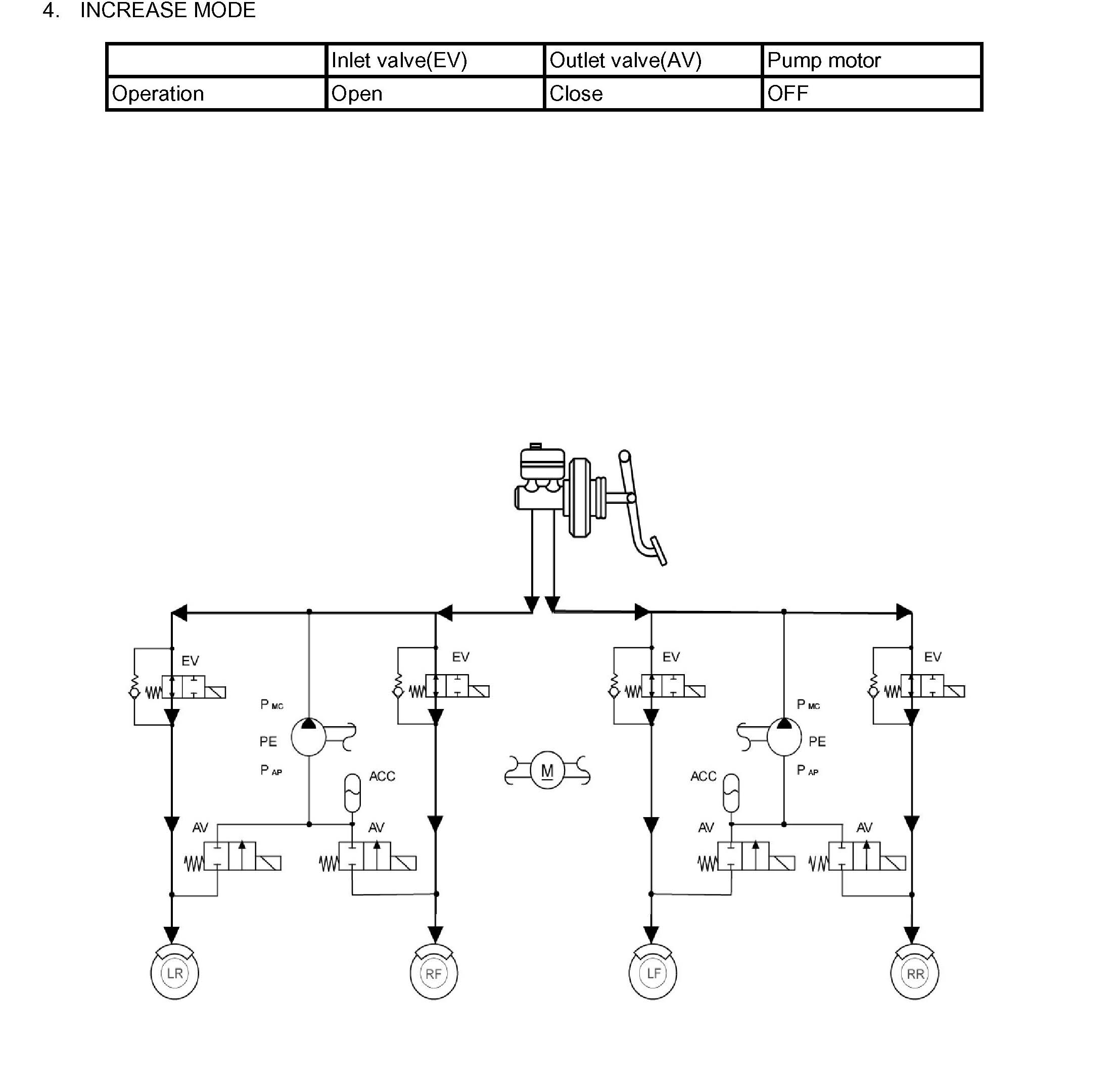

4. INCREASE MODE





NOTE: EV: Inlet Valve AV: Outlet Valve LR: Rear left wheel RF: Front right wheel LF: Front left wheel RR: Rear right wheel PE: Pump motor
