Communication With Any System Is Not Possible

Communication with Hi-scan (pro) is not possible
(Communication with any system is not possible)

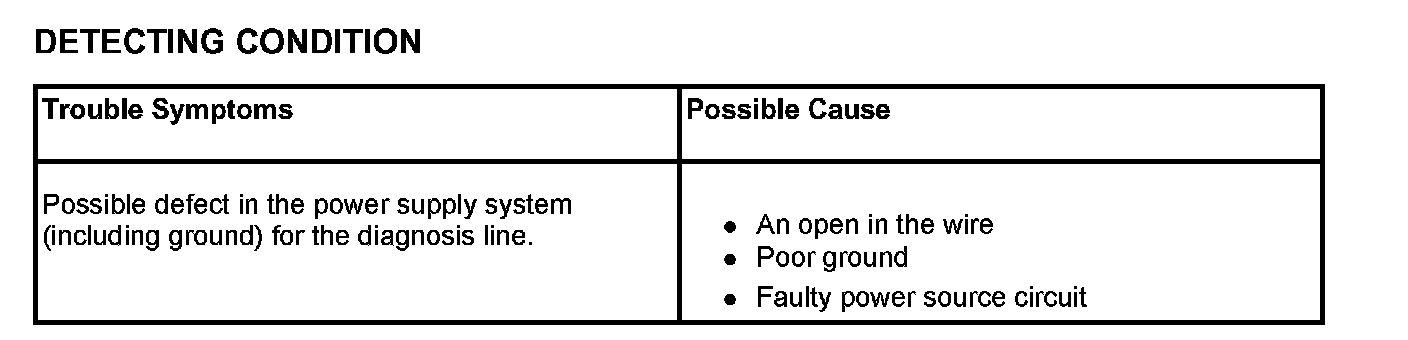

DETECTING CONDITION:

INSPECTION PROCEDURES

CHECK THE POWER SUPPLY CIRCUIT FOR THE DIAGNOSIS

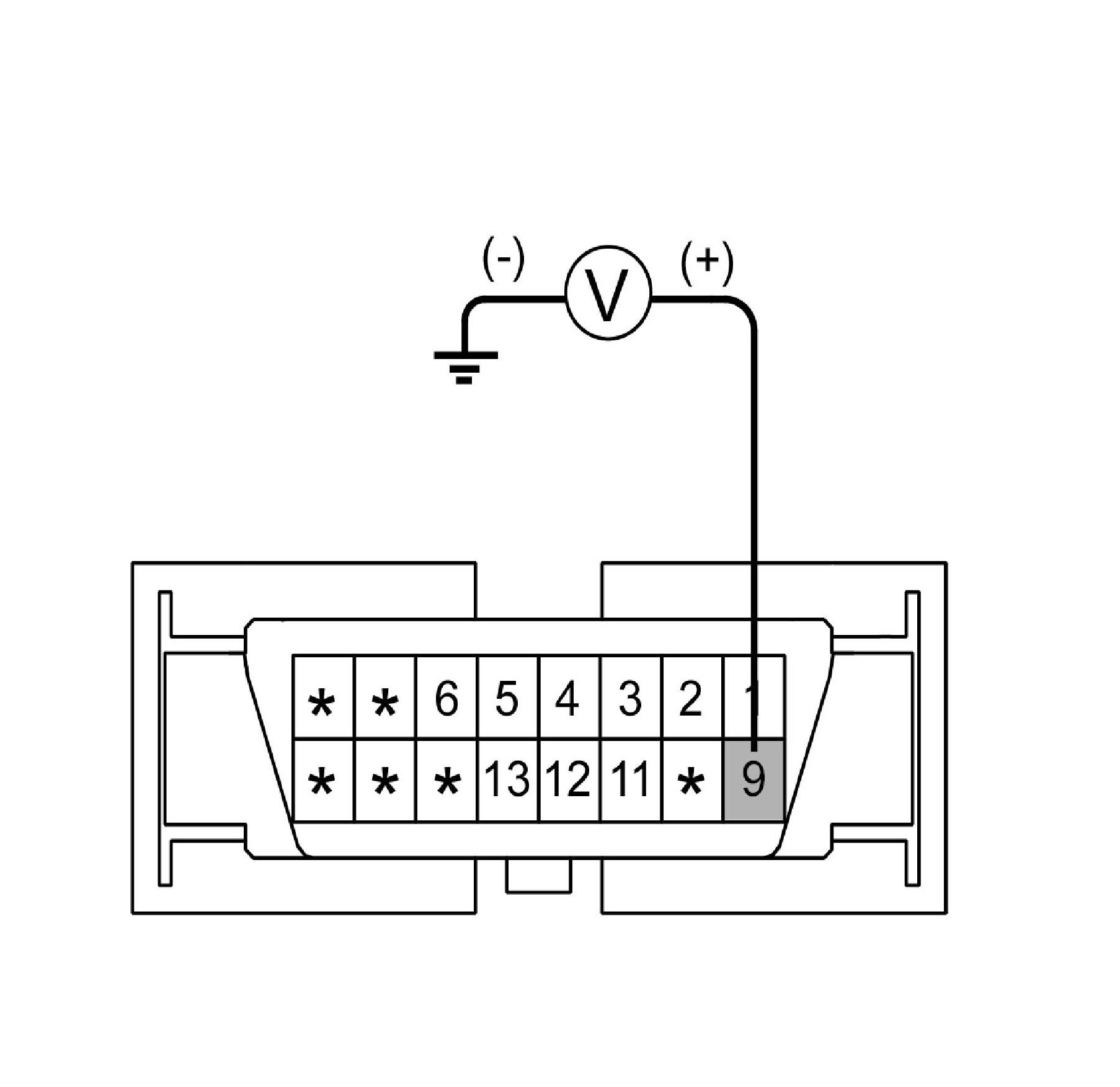

Measure the voltage between terminal 9 of the data link connector and body ground.
Specification: approximately B+
Is voltage within specification?
YES
Check the ground circuit for the diagnosis.
NO
Repair an open in the wire. Check and replace fuse (15A) from the engine compartment junction block.





CHECK THE GROUND CIRCUIT FOR THE DIAGNOSIS
Check for continuity between terminal 5 of the data link connector and body ground.
Is there continuity?
NO
Repair an open in the wire between terminal 5 of the data link connector and ground point.
