Brake Fluid Pressure Sensor/Switch: Testing and Inspection
BRAKE FLUID LEVEL WARNING SWITCH 1.

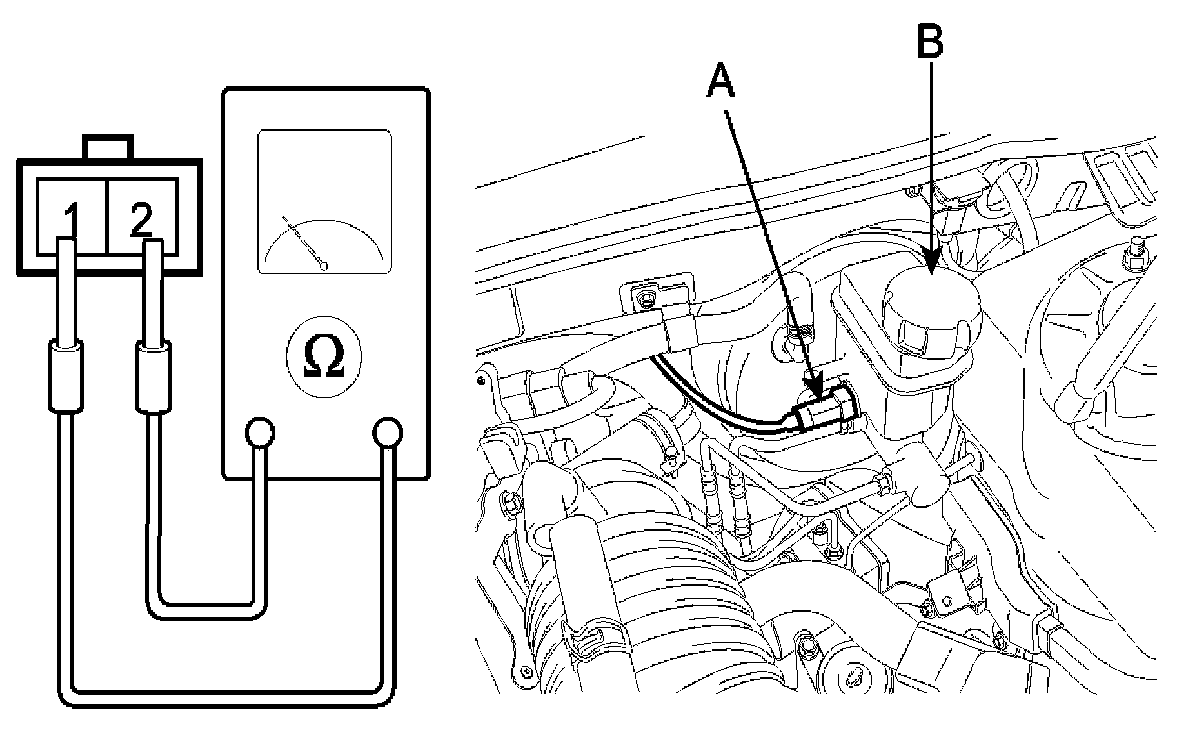

Remove the connector (A) from the switch located at the brake fluid reservoir (B).
2.
Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.
