Service Standard

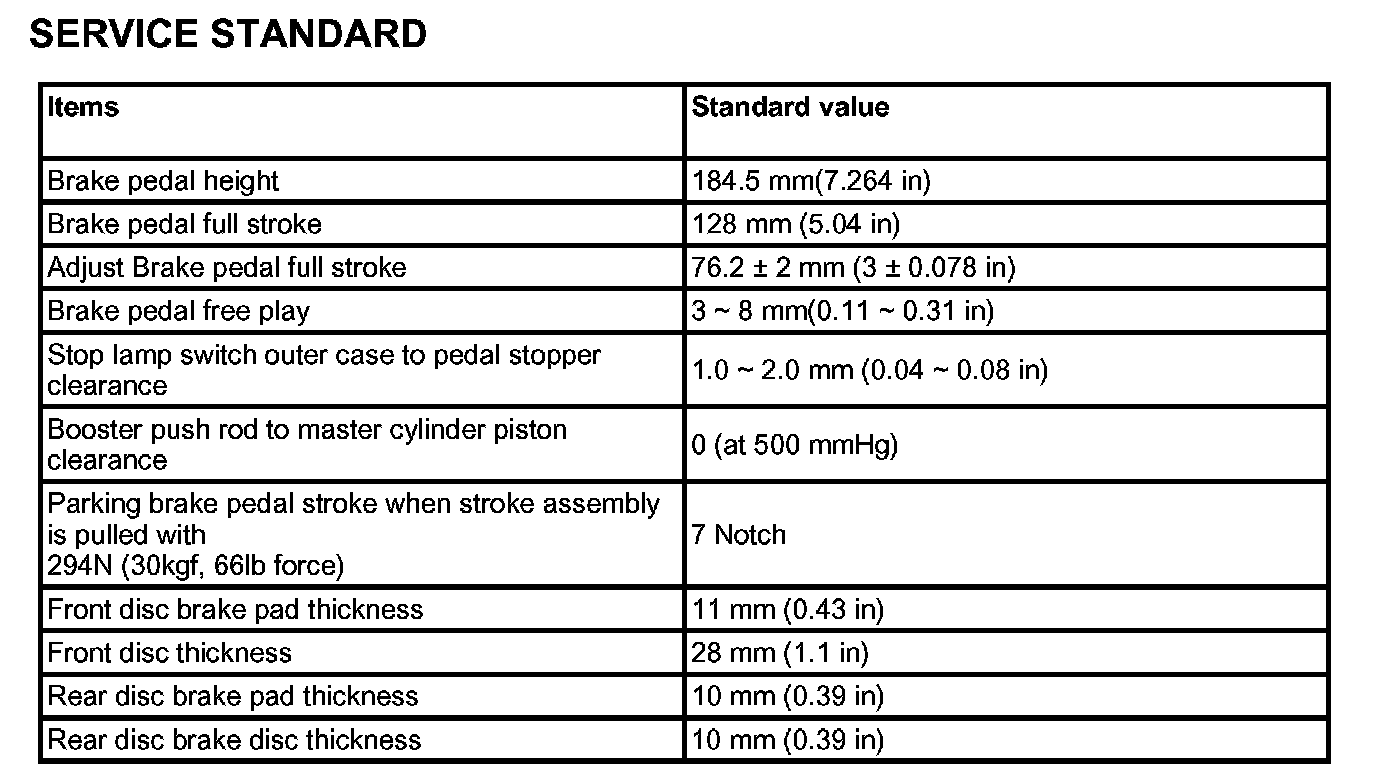

Service StandardSERVICE STANDARD:
Front disc thickness 28 mm (1.1 in)
Limit 26.4 mm (1.04 in)
Thickness variation limit 0.005 mm (0.0002 in)
Run out Limit 0.04 mm (0.0016 in.) or less
Rear disc brake disc thickness 10 mm (0.39 in)
Limit 8.0 mm (0.31 in)
Thickness variation limit 0.01 mm (0.0004 in)
Run out Limit 0.05 mm (0.002 in) or less
Front disc brake pad thickness 11 mm (0.43 in)
Service limit 2.0 mm (0.0787 in)
Rear disc brake pad thickness 10 mm (0.39 in)
Service limit 2.0 mm (0.0787 in.)
