Cruise Control: Service and Repair

REMOVAL

1. Disconnect the battery (-) terminal.

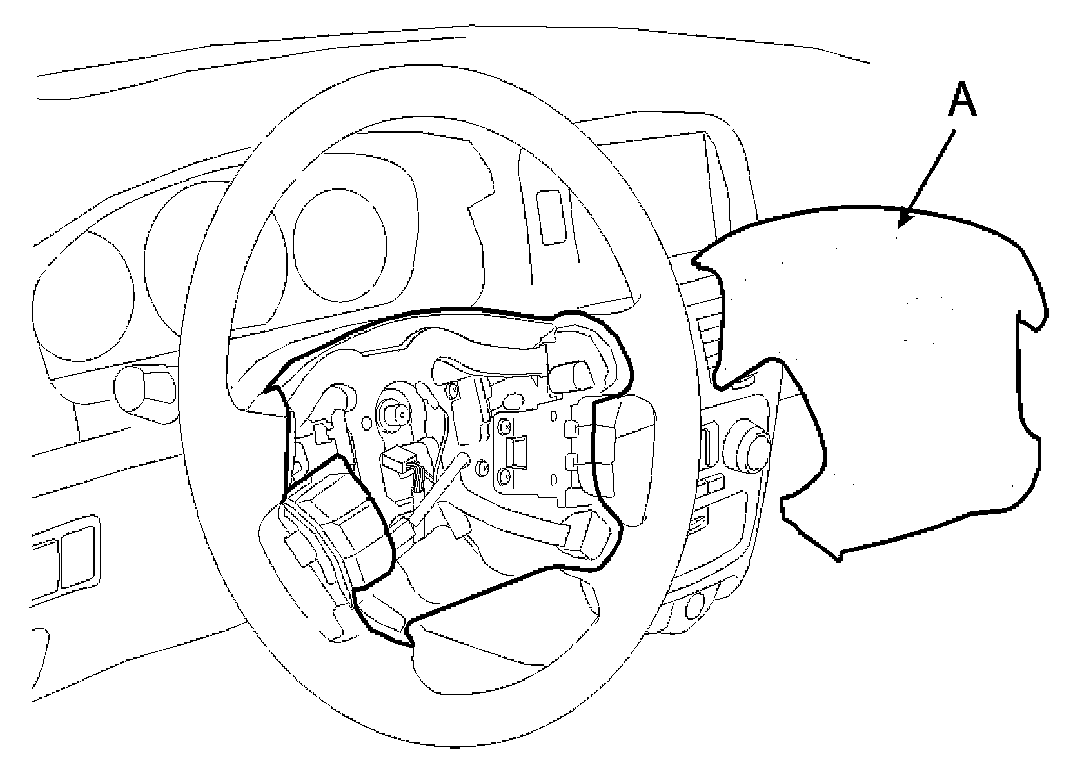

2. Remove the driver side air bag module (A).

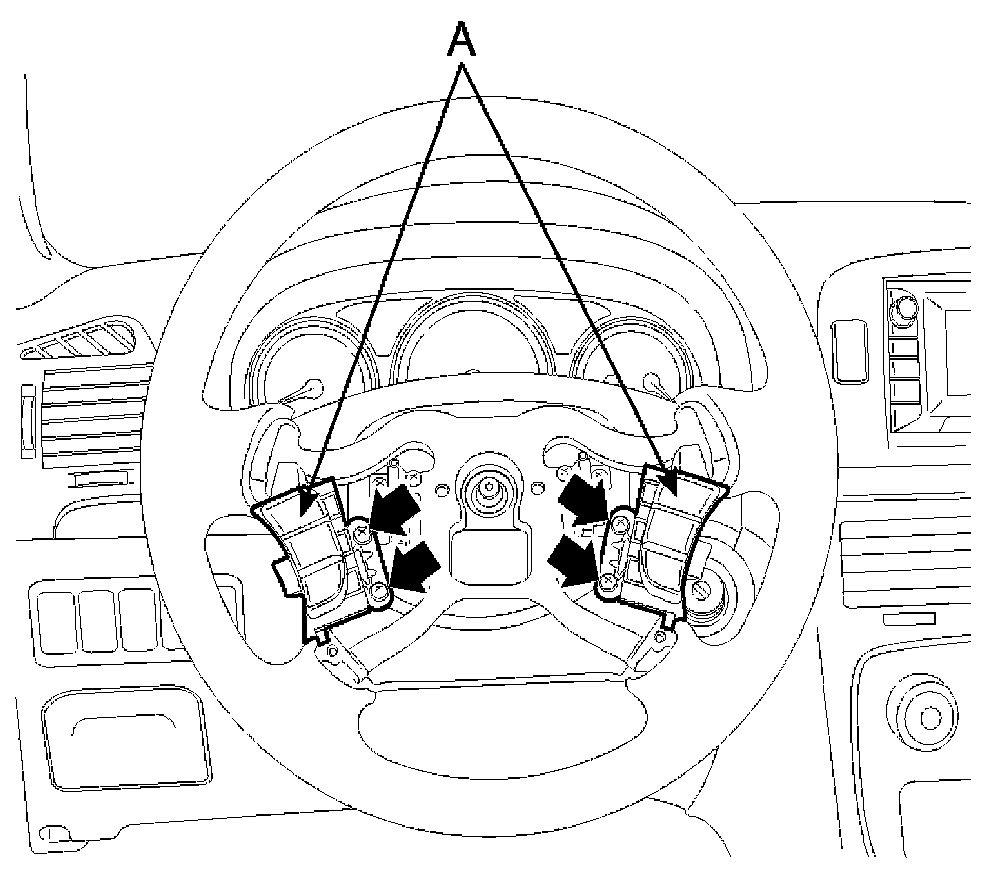

3. Disconnect the cruise control switch connector and then remove the cruise control switch (A) with two screws.
4. Installation is the reverse of removal.
