Fuel Pump
This article has been updated by Technical Service Bulletin (TSB) 06-90-018 dated JUNE, 2006.
The 2006 Azera Electrical Troubleshooting Manual was printed with incorrect information related to the fuel sender and instrument cluster systems.
Fuel Pump And Sender Revision:

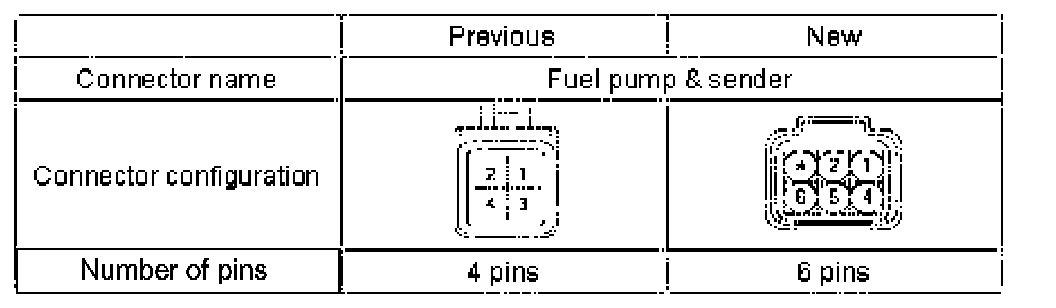

The fuel pump & sender connector has been changed from a 4-pin connector to a 6-pin connector as shown.
