Radiator: Service and Repair

RADIATOR

INSTALLATION

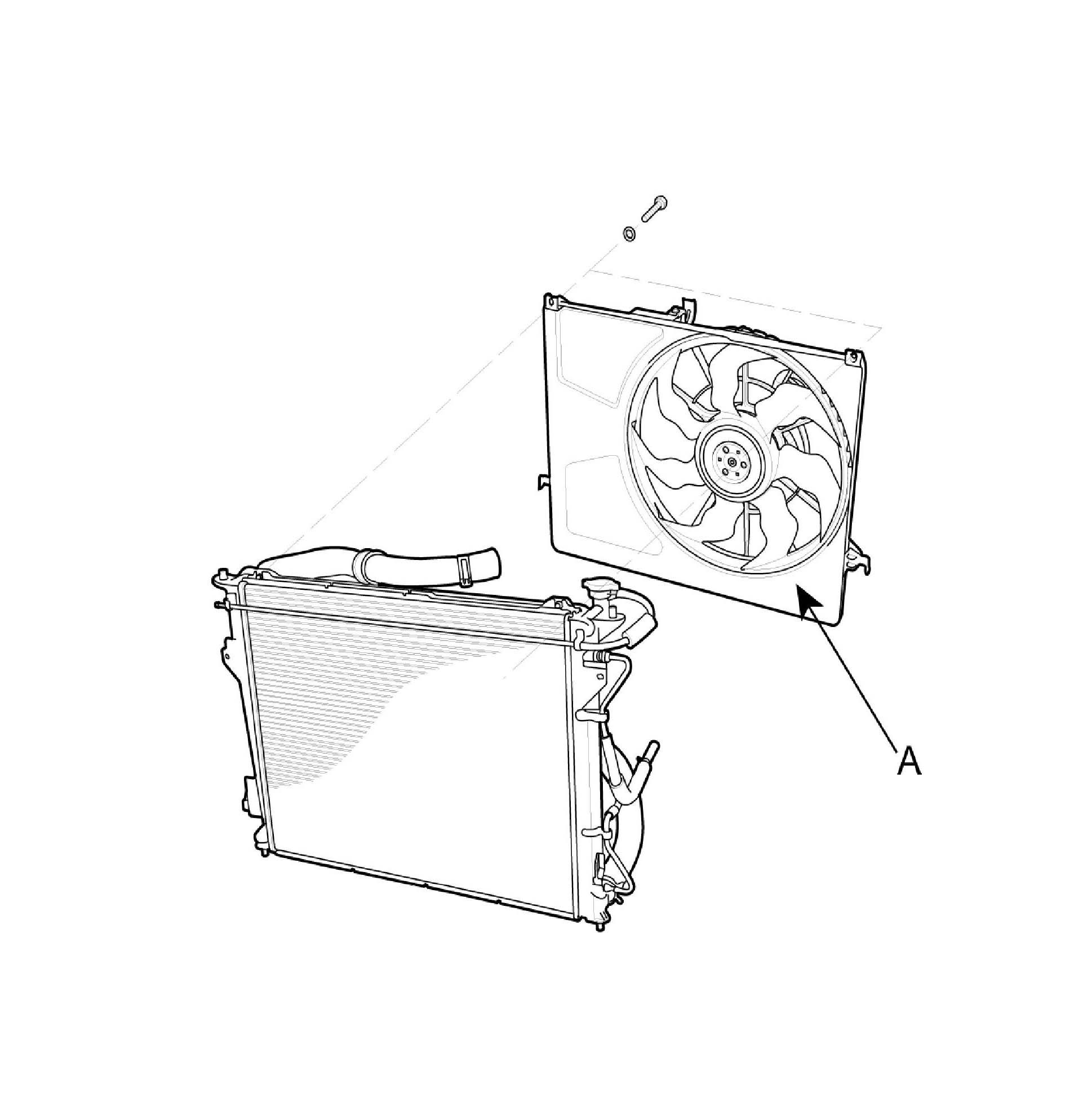

1. Install the radiator fan (A) to the radiator.





2. Install the radiator (A).





3. Install the radiator bracket (A).





4. Reconnect the radiator fan connector (A).





5. Connect transaxle oil cooler hoses.
6. Connect radiator upper and lower hoses (A).

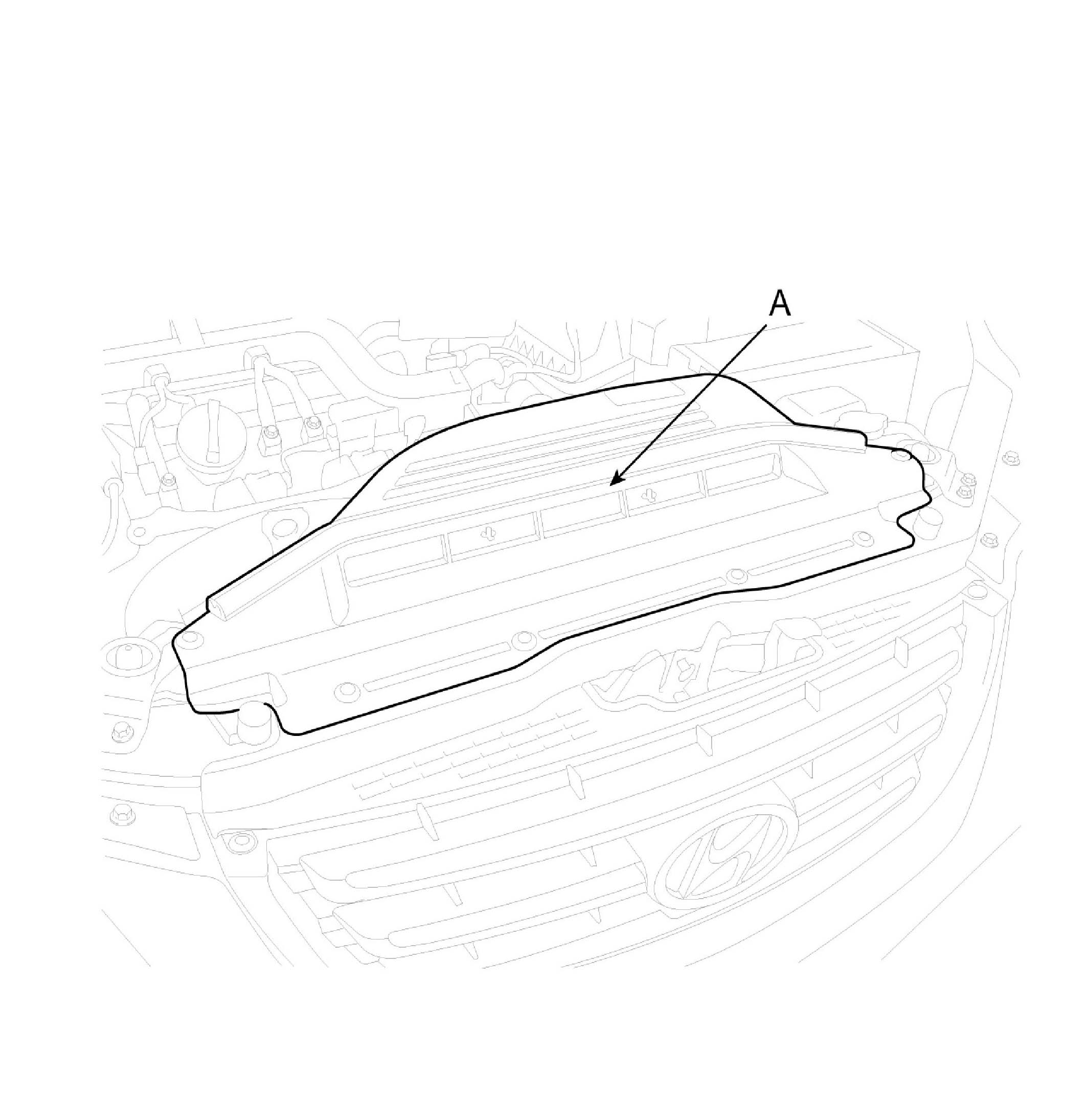

7. Install the air duct (A).





8. Fill with engine coolant.
9. Start engine and check for leaks.
10. Recheck engine coolant level.

REMOVAL
1. Drain the engine coolant.

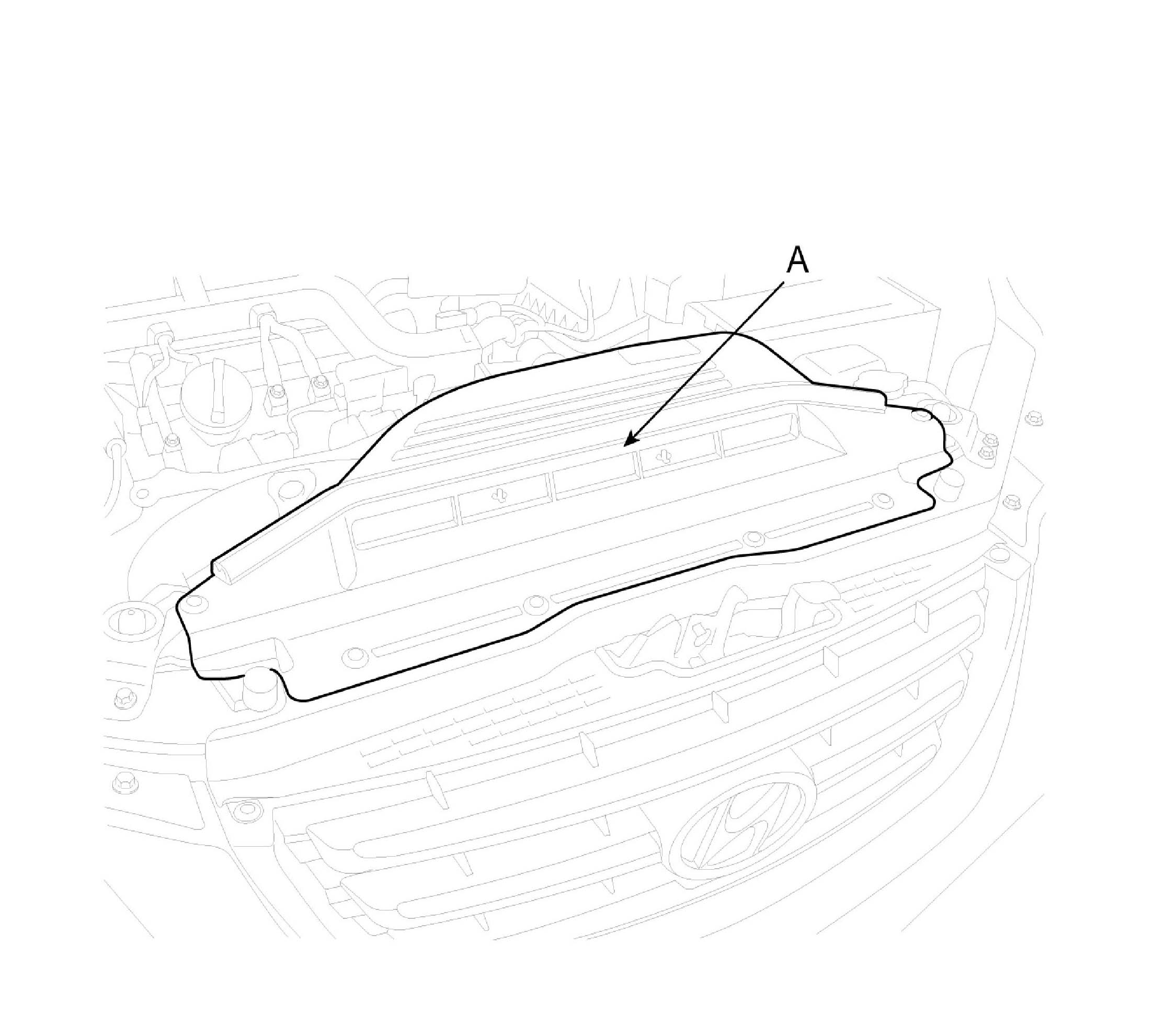

2. Remove the air duct (A).





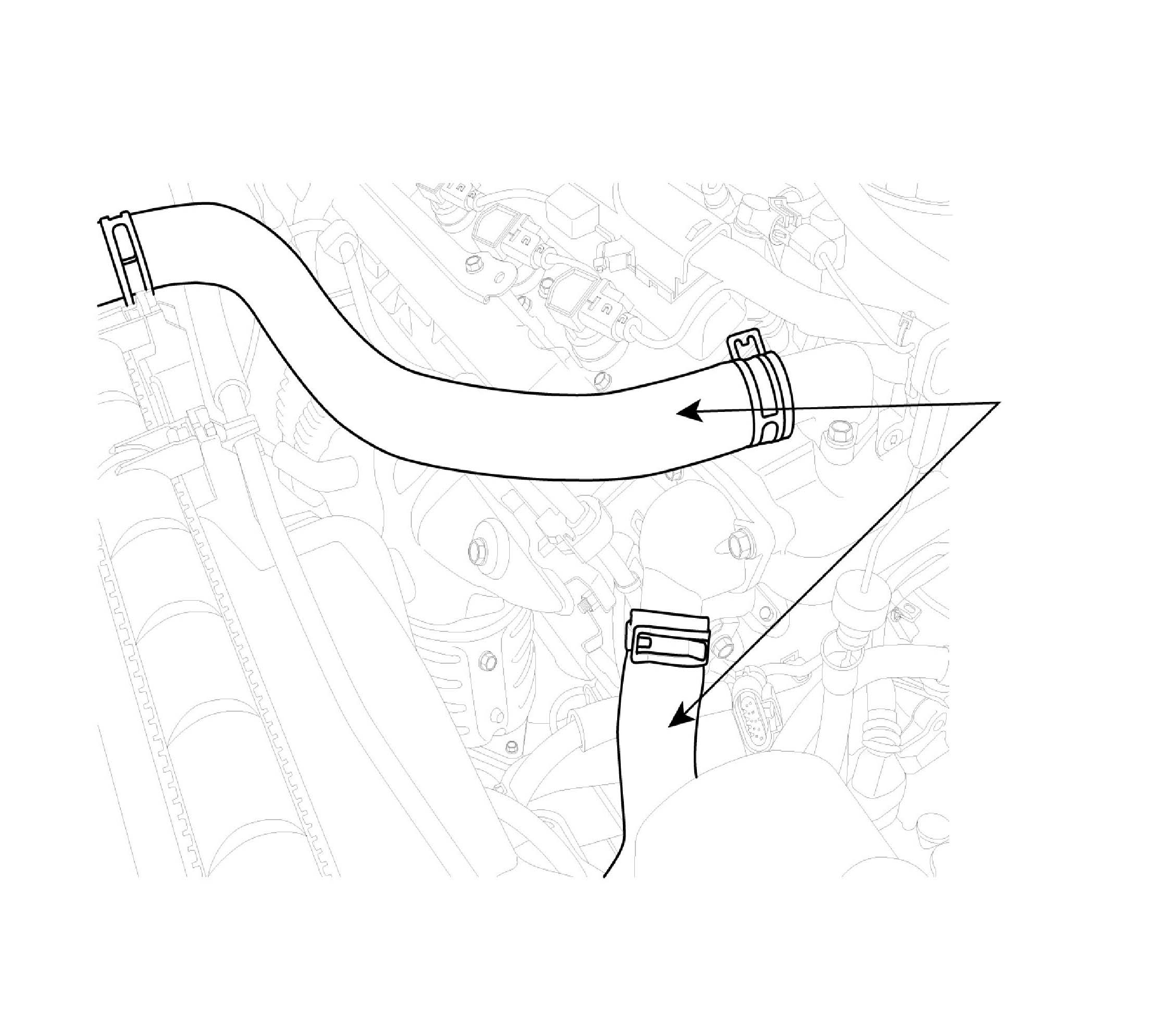

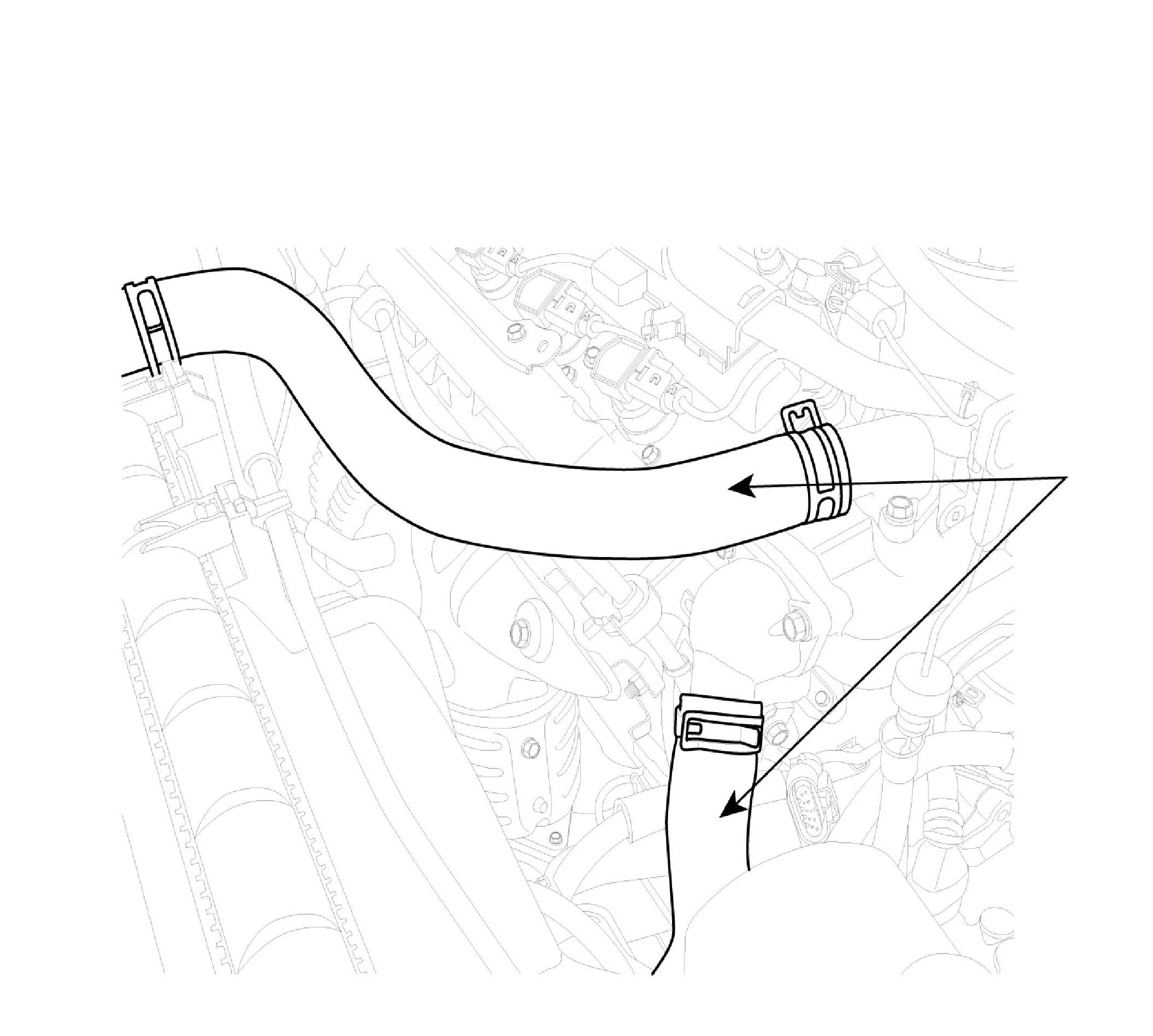

3. Disconnect radiator upper and lower hoses (A).





4. Disconnect transaxle oil cooler hoses.

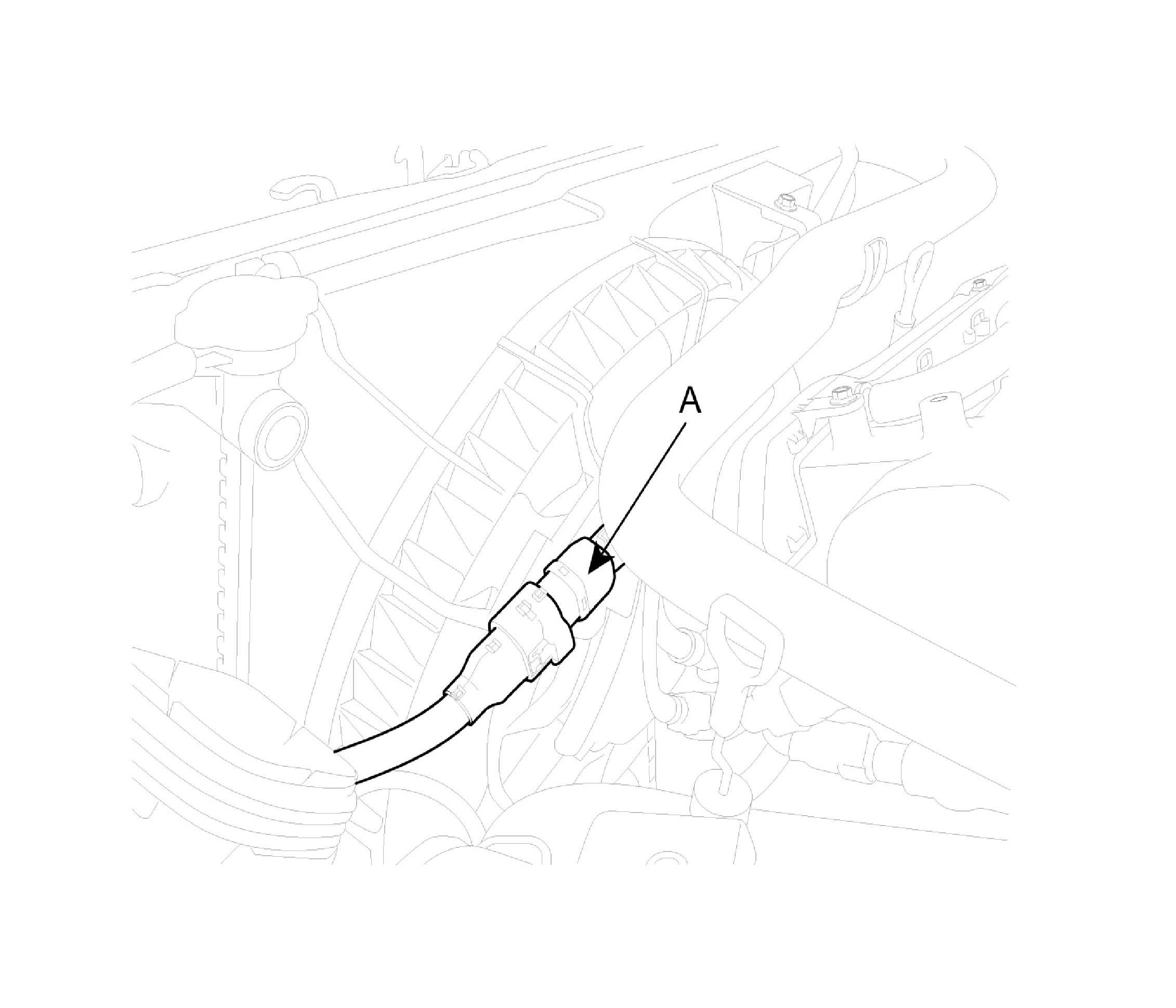

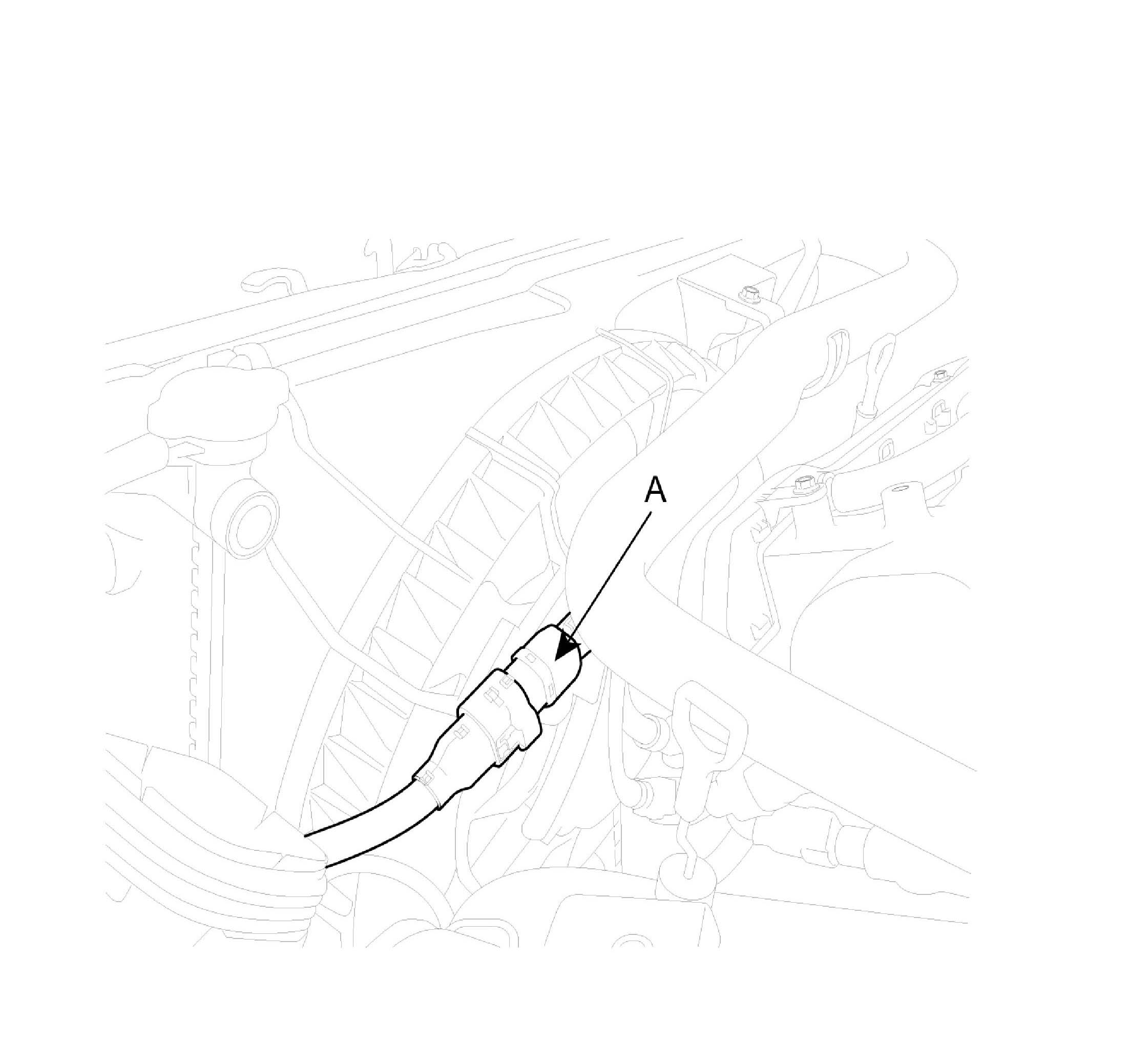

5. Disconnect the radiator fan connector (A).

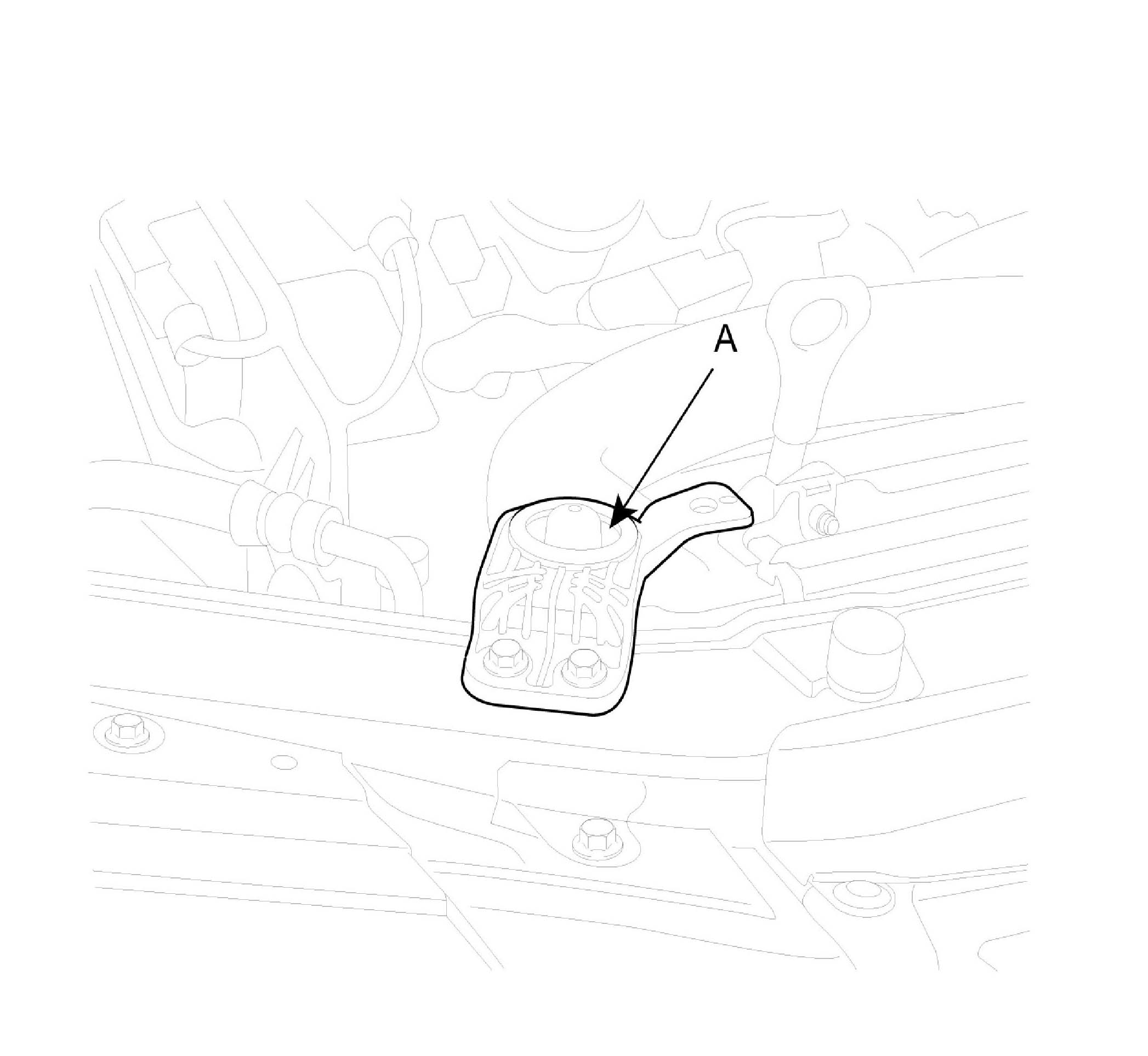

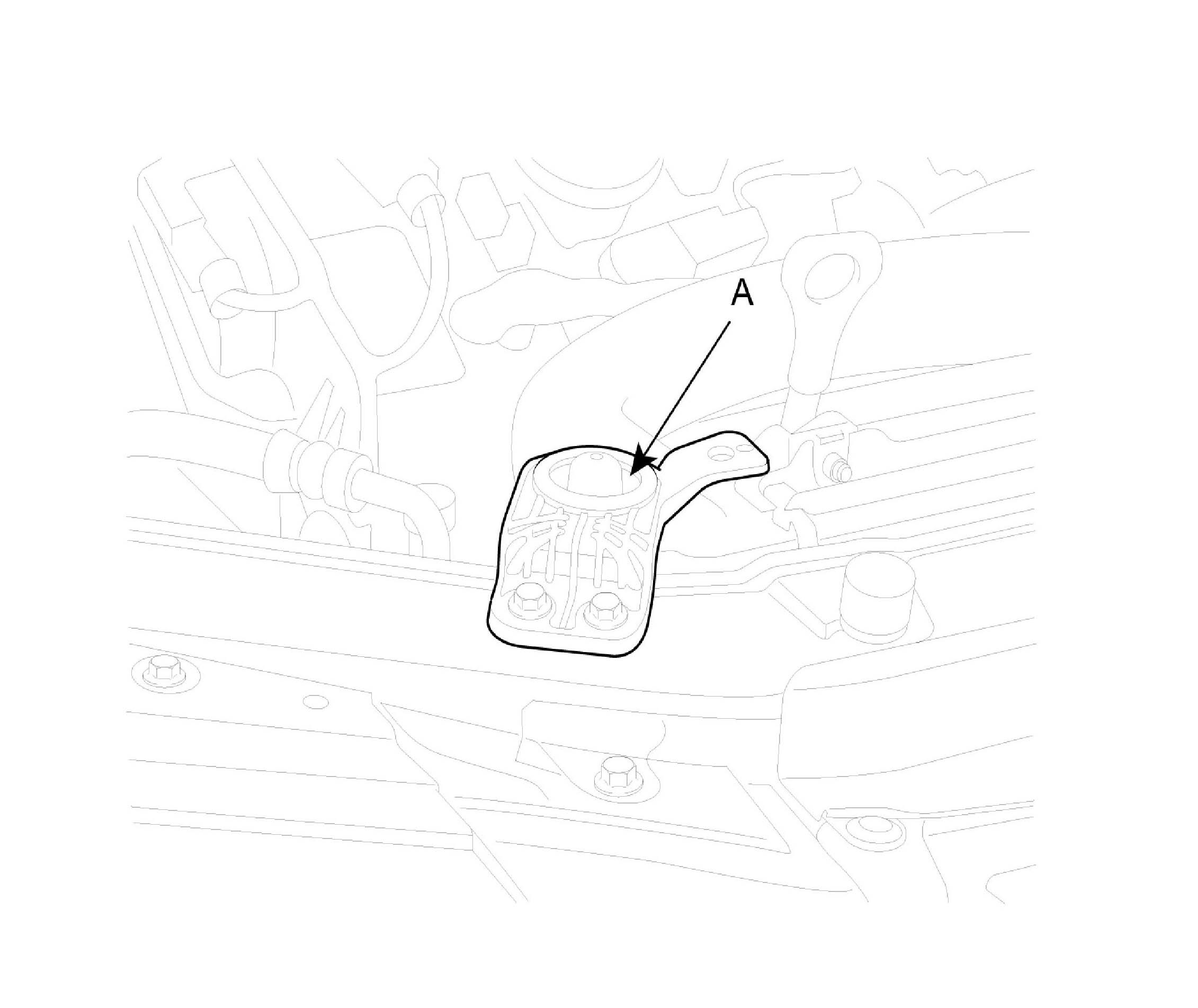

6. Remove the radiator bracket (A).

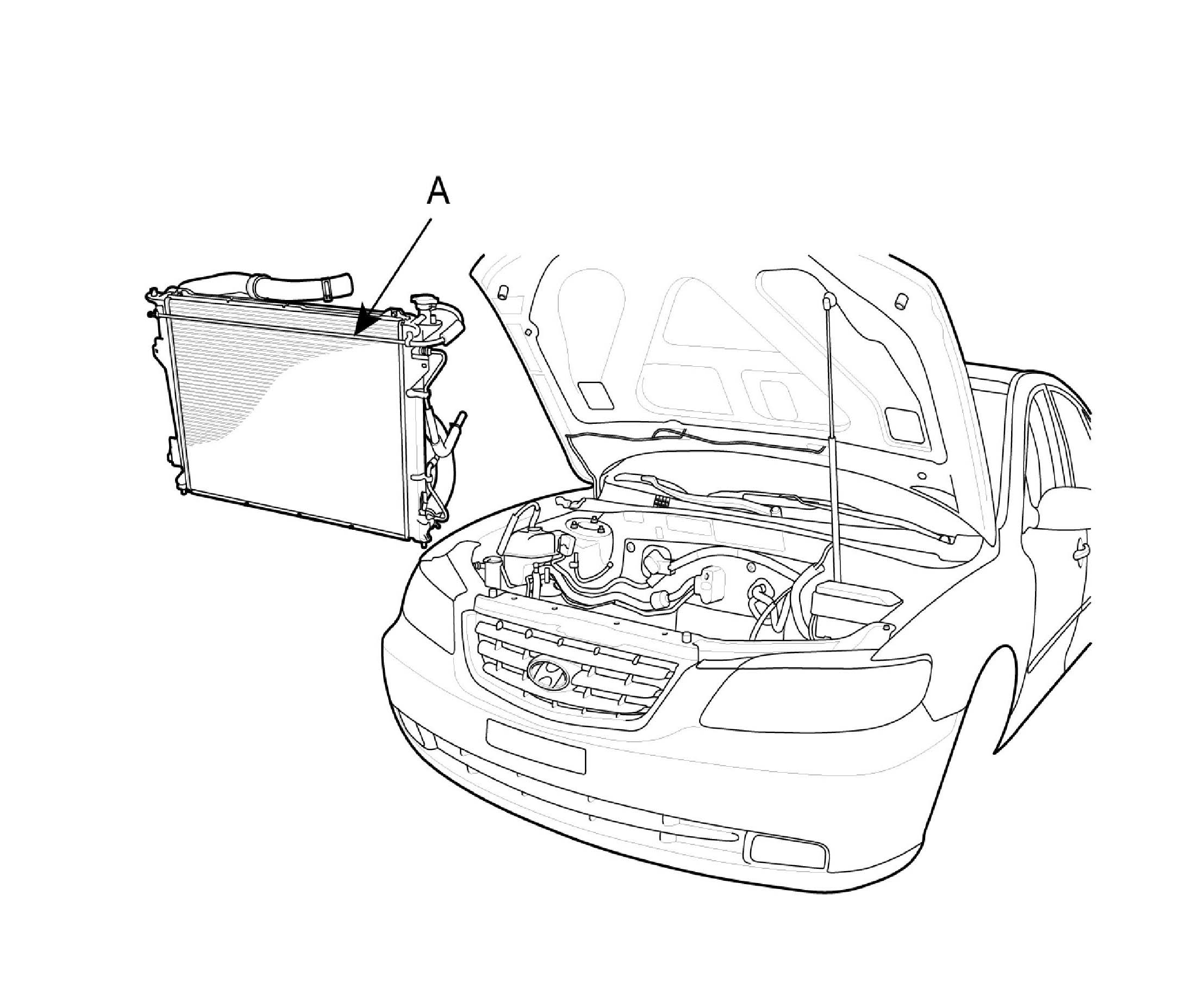

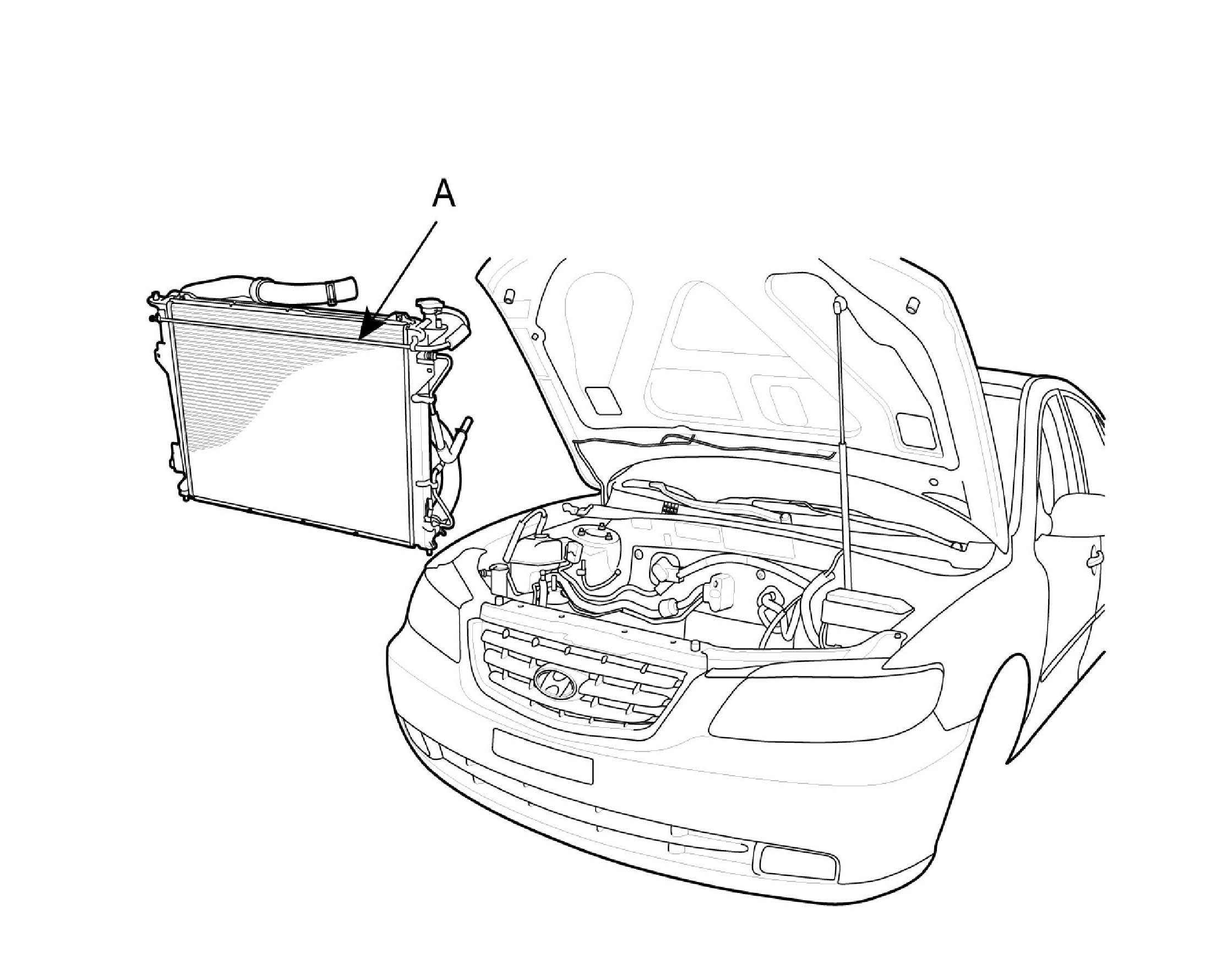

7. Remove the radiator (A).

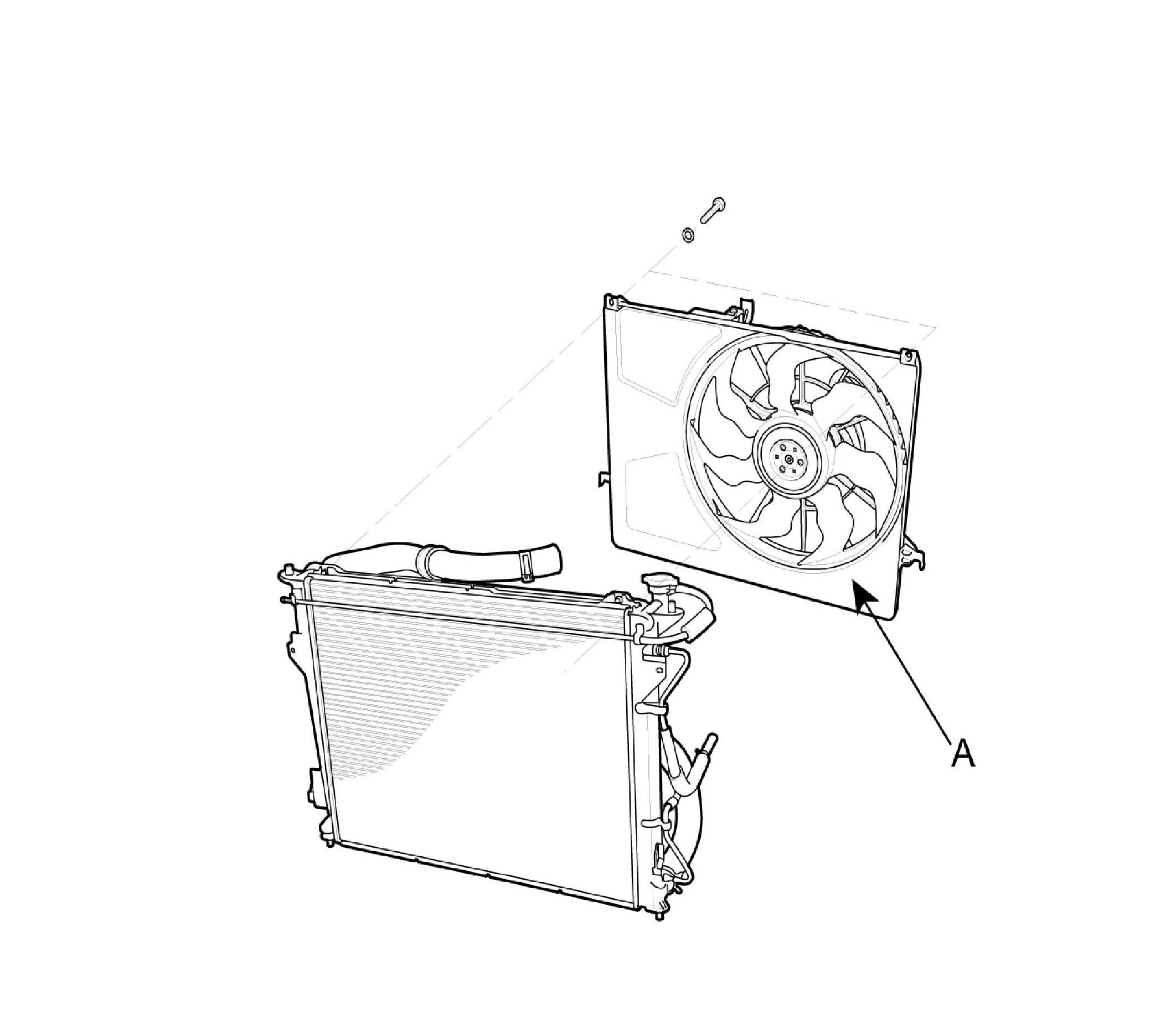

8. Remove the radiator fan (A).
