Water Temperature Control Assembly

WATER TEMPERATURE CONTROL ASSEMBLY

INSTALLATION

NOTE: Clean the contact face before assembly.

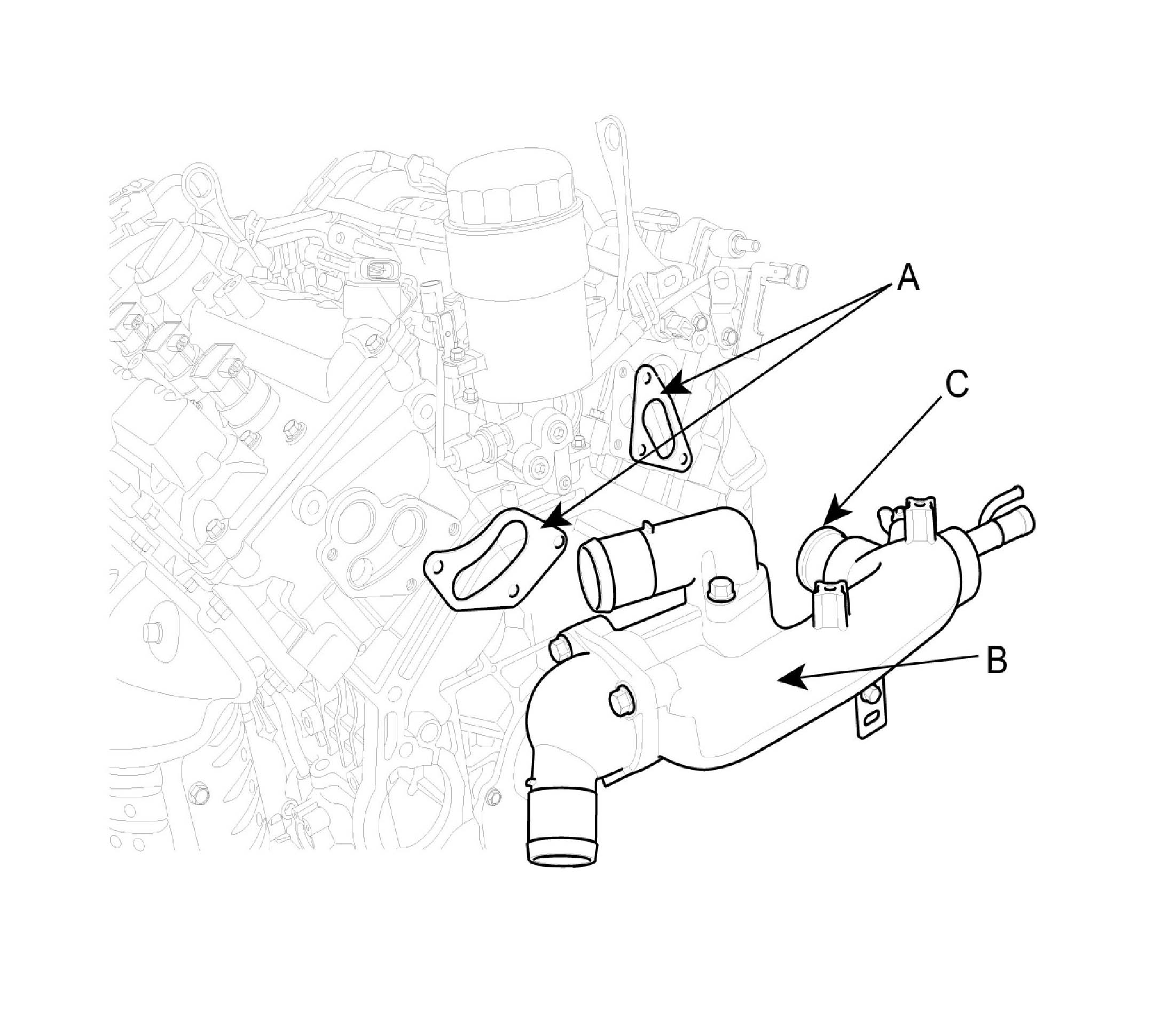

1. Install water temperature control assembly (B) and new gasket (A).
Tightening torque 18.62 - 23.52 Nm (1.9 - 2.4 kgf.m, 13.74 - 17.36 1b-ft)





NOTE: Use new O-rings (C) when reassembling.

2. Connect water hoses to the water temperature control assembly.
3. Install wiring protector.
4. Connect WTS connector.

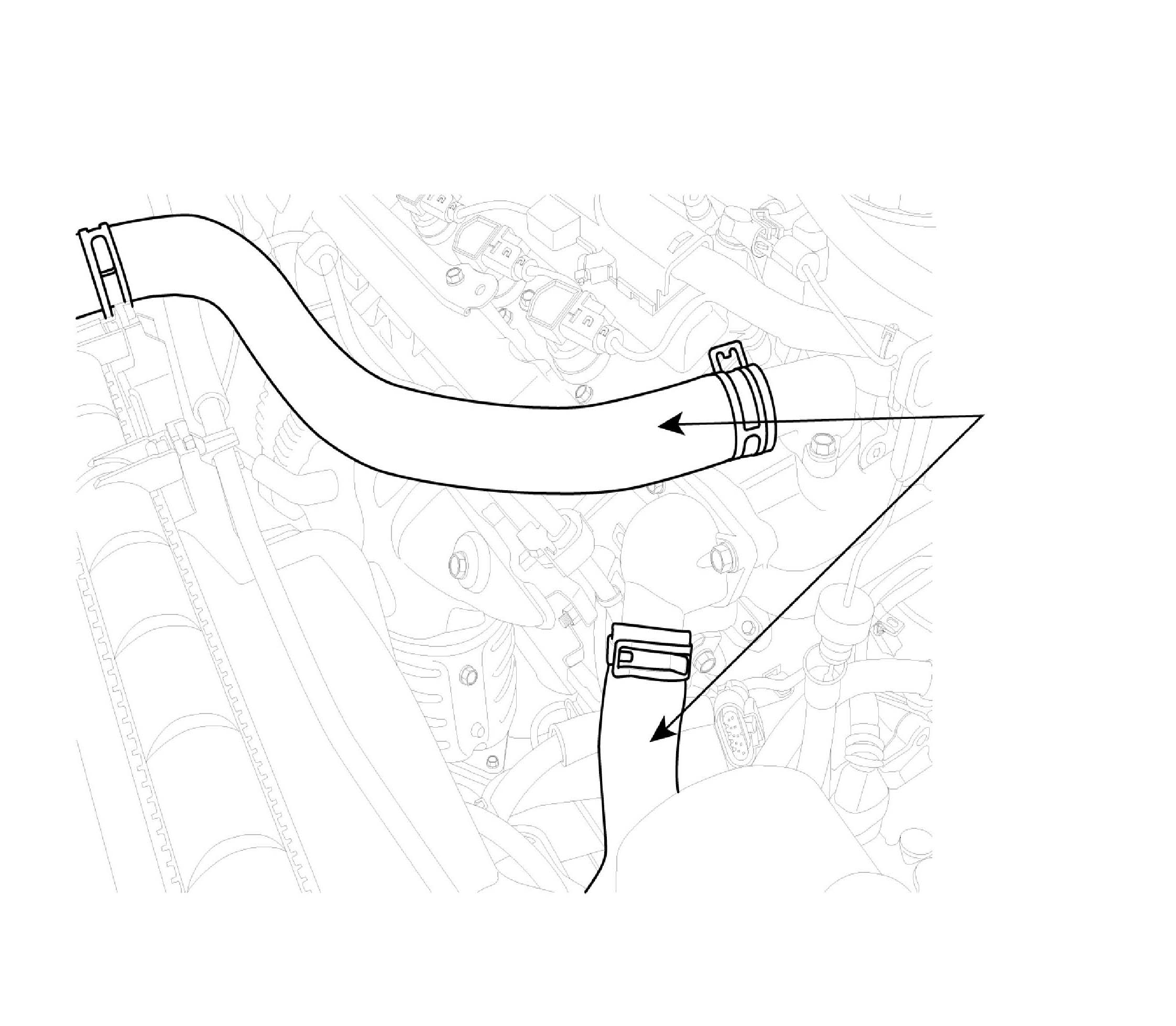

5. Connect radiator upper and lower hose (A).





6. Install air cleaner assembly.
7. Fill with engine coolant.
8. Start engine and check for leaks.
9. Recheck engine coolant level.

REMOVAL
1. Drain the engine coolant.
2. Remove air cleaner assembly.

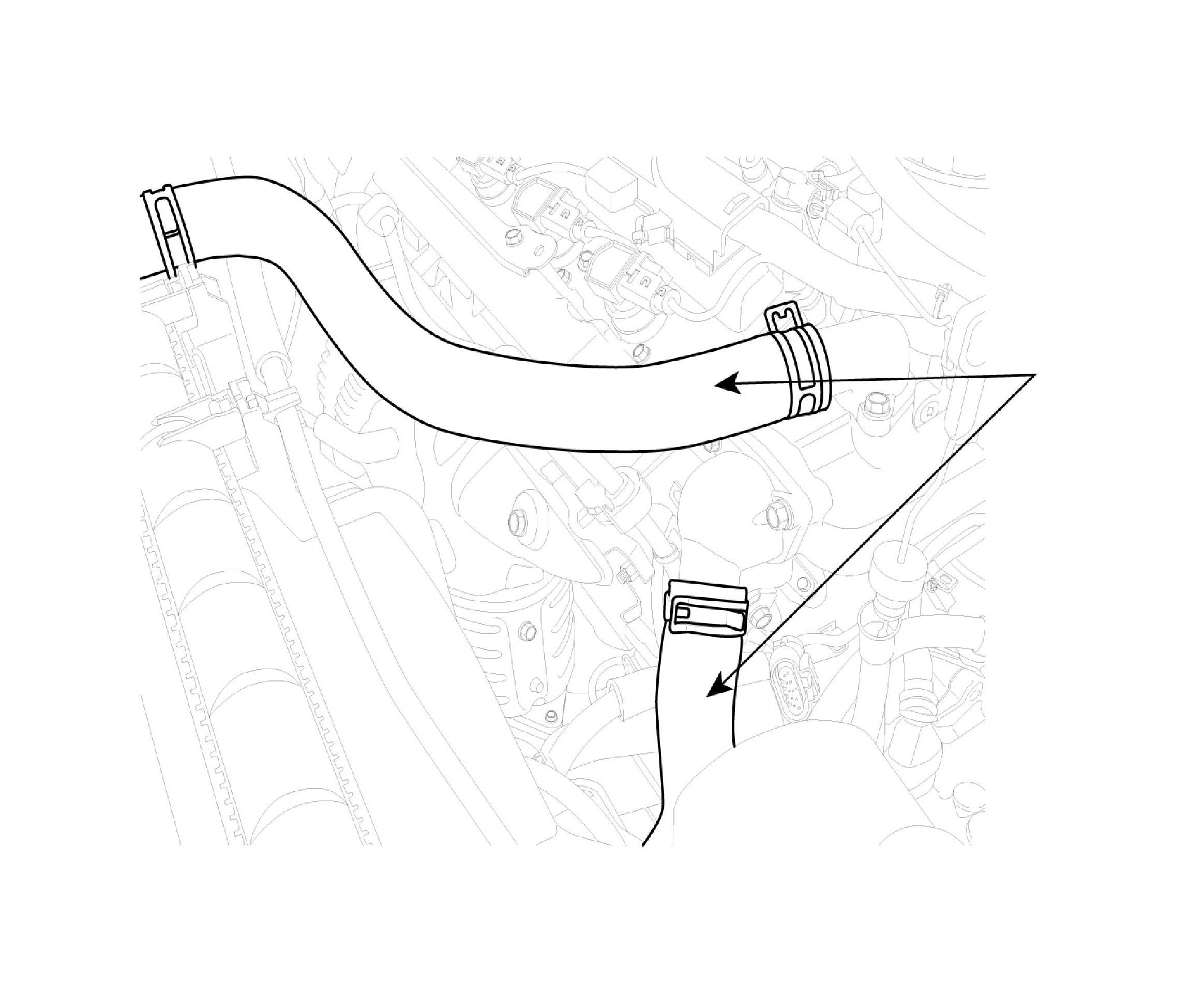

3. Disconnect radiator upper and lower hose (A).





4. Disconnect WTS connector.
5. Disconnect heater hose, water vent hose and water hose from water temperature control assembly.
6. Remove wiring protector.

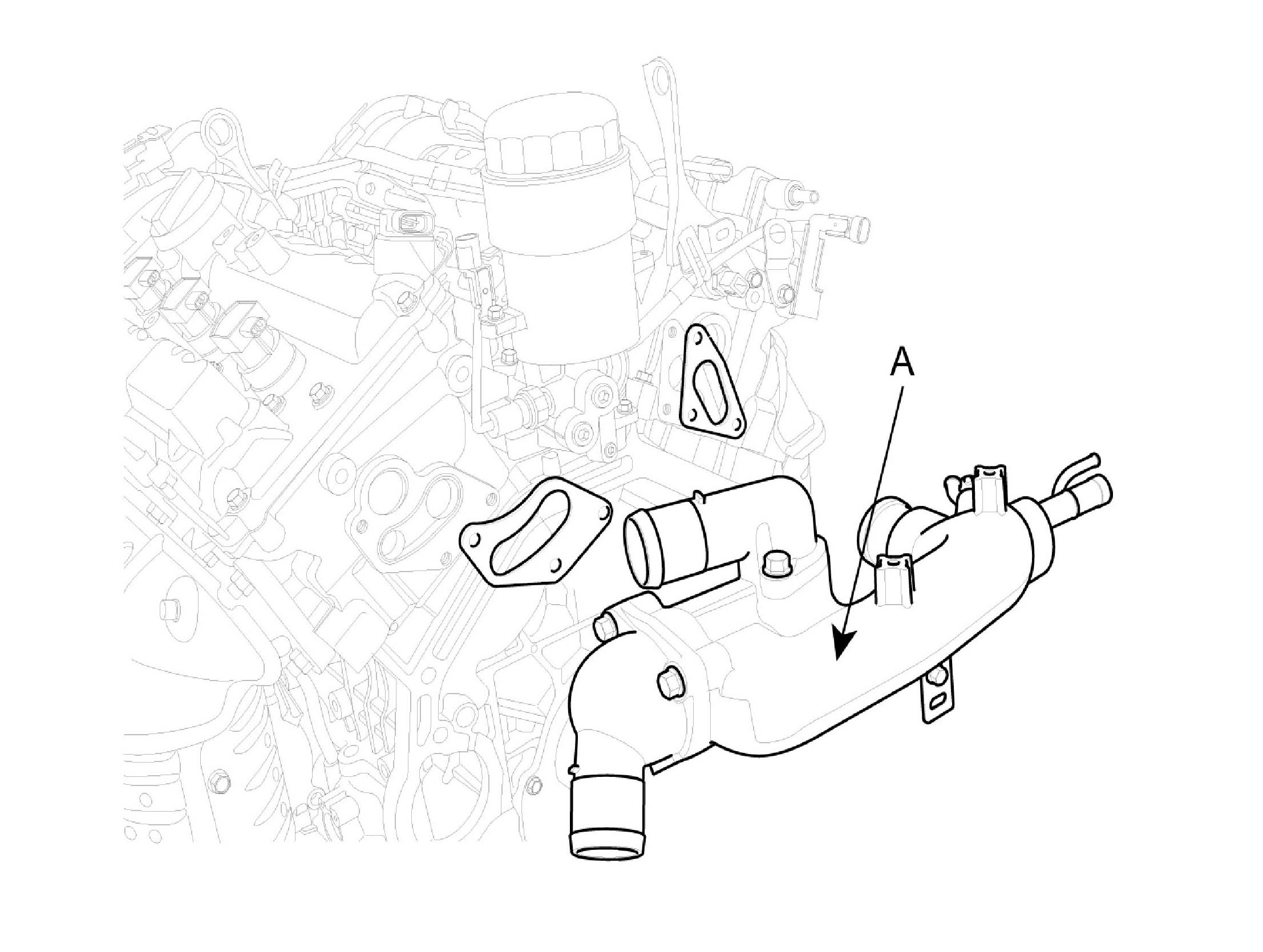

7. Remove water temperature control assembly (A).
