Cylinder Block Assembly: Specifications

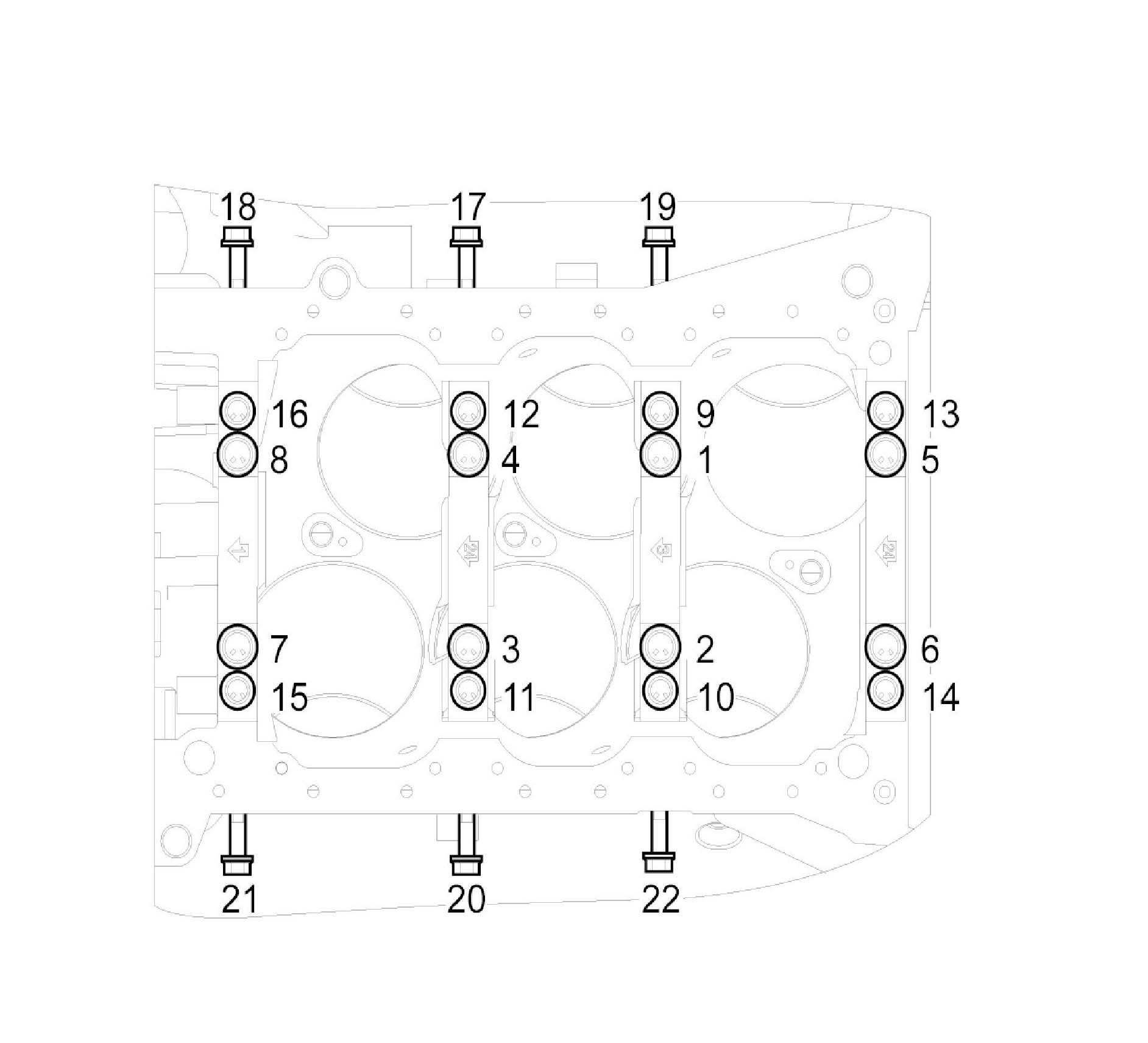

Main bearing cap bolt tightening torque
1 - 8 49.00 Nm (5.0 kgf-m, 36.16 ft. lbs.) + 90°
9 - 16 19.60 Nm (2.0 kgf-m, 14.46 ft. lbs.) + 120°
17 - 22 29.40 - 31.36 Nm (3.0 - 3.2 kgf-m, 21.70 - 23.14 ft. lbs.)
SPECIFICATION:
SPECIFICATION:
TIGHTENING TORQUE:

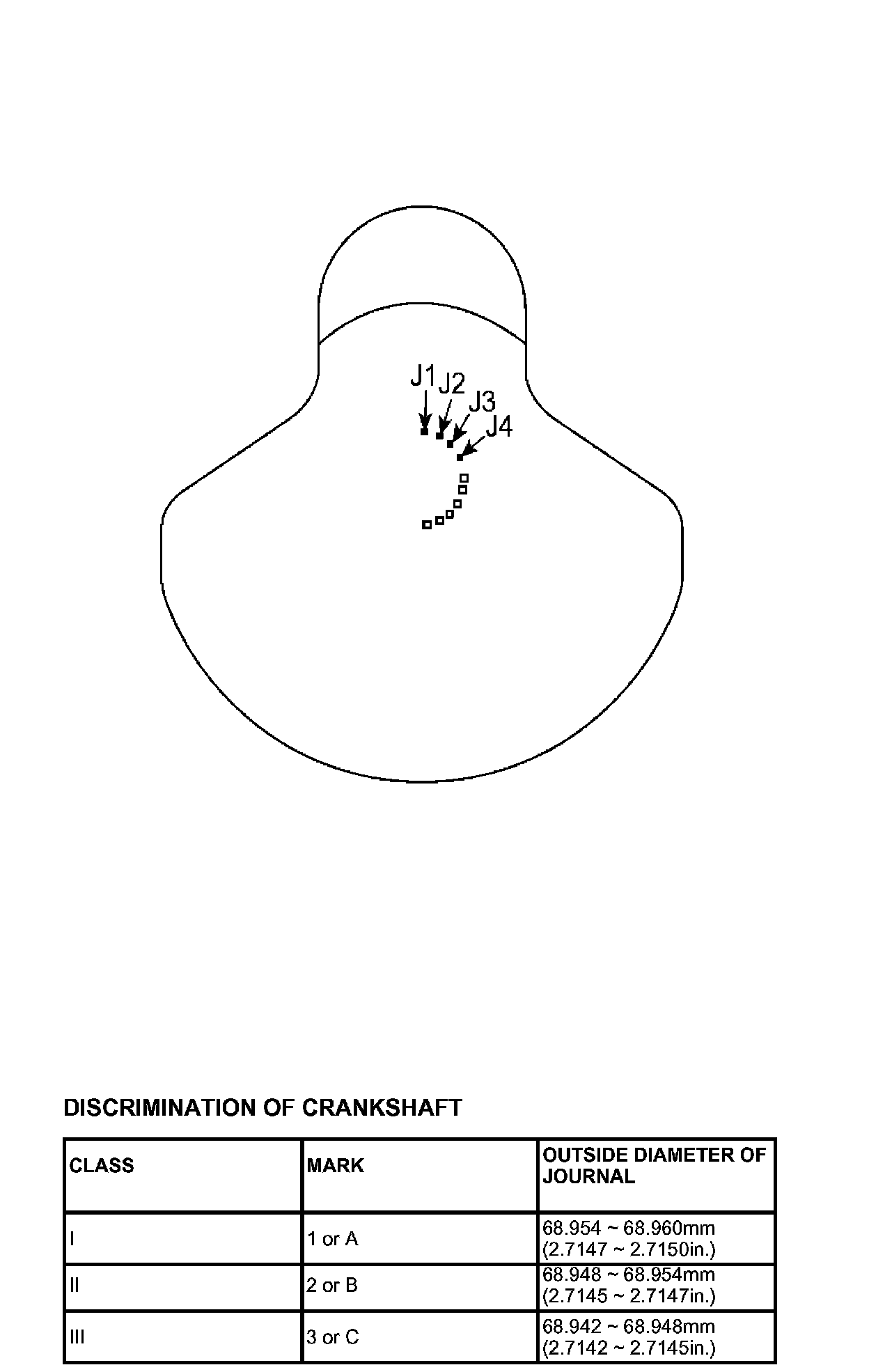

CRANKSHAFT JOURNAL MARK LOCATION
DISCRIMINATION OF CRANKSHAFT:

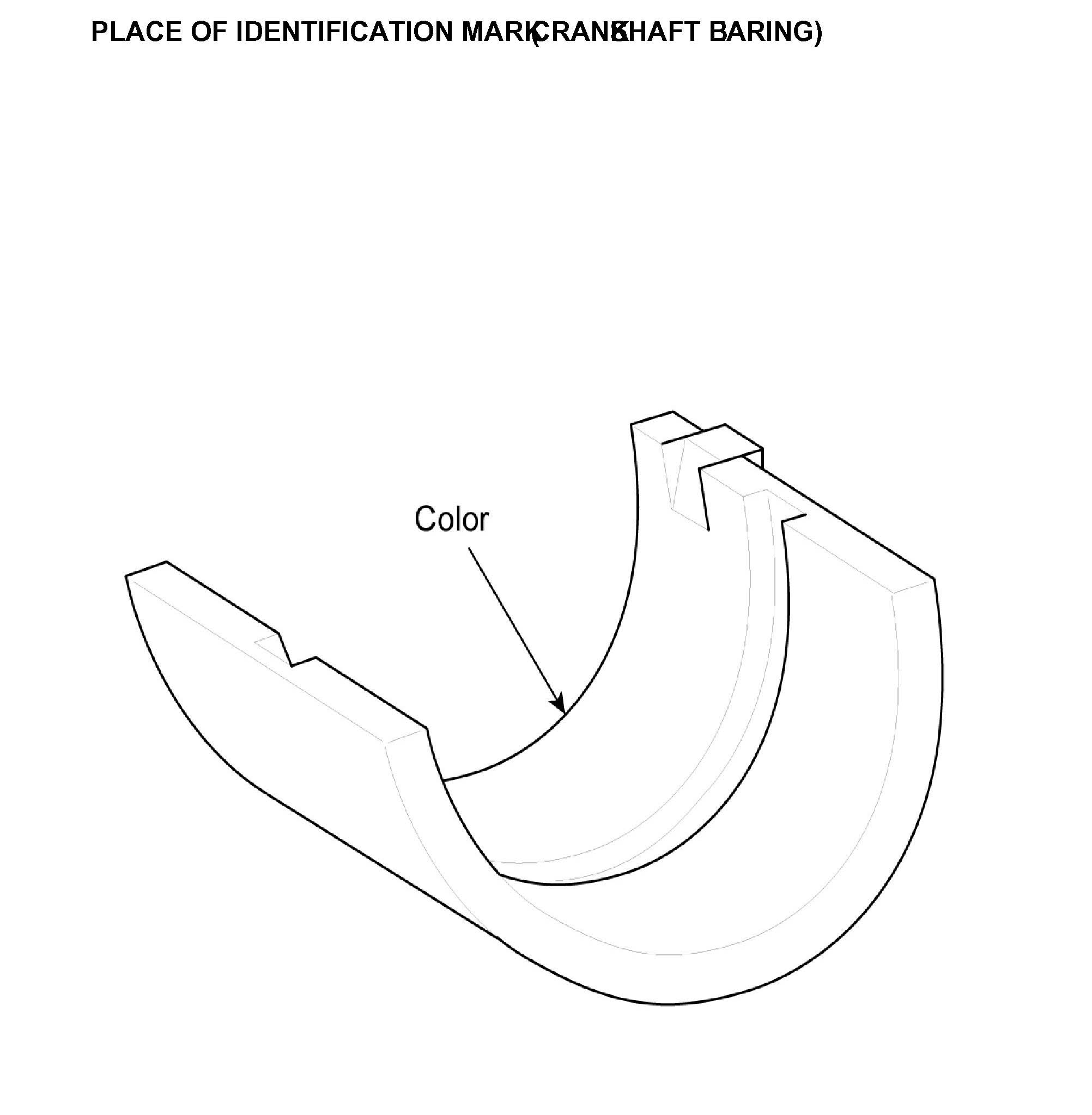

PLACE OF IDENTIFICATION MARK (CRANKSHAFT BEARING):

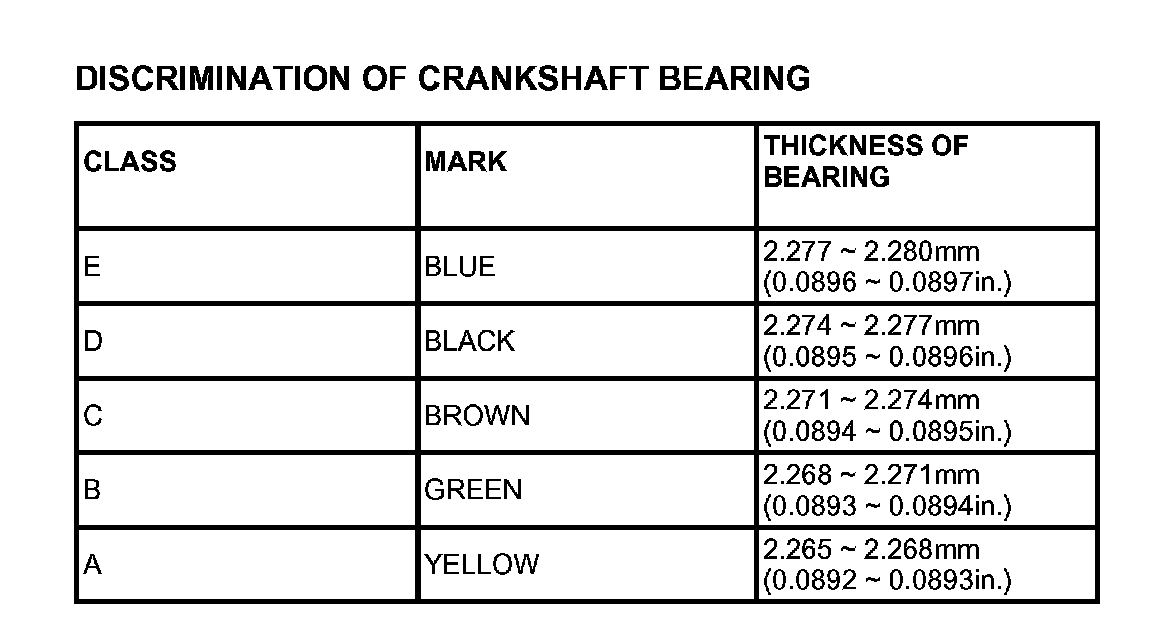

DISCRIMINATION OF CRANKSHAFT BEARING:

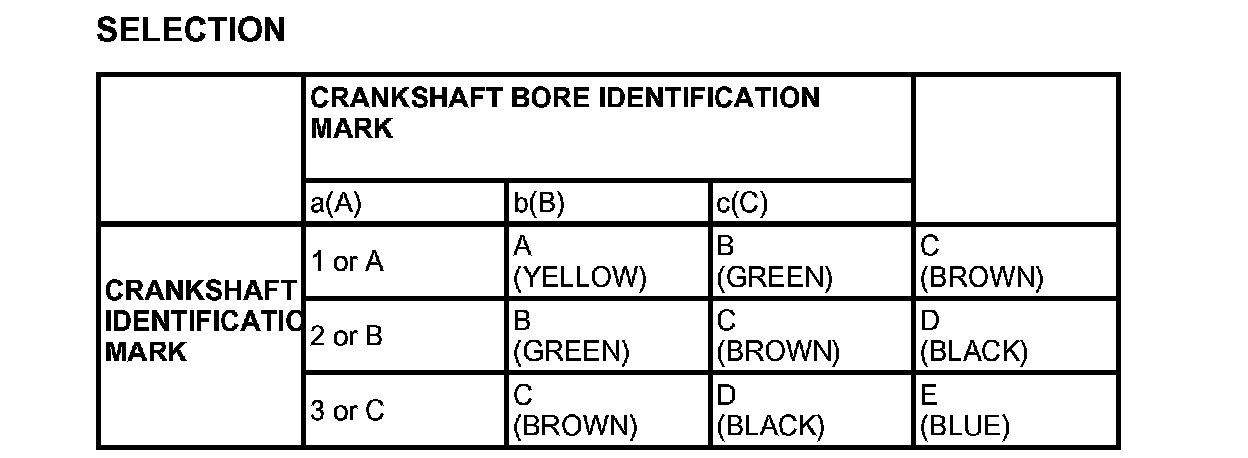

SELECTION:
