Variable Valve Timing Actuator: Service and Repair

INSTALLATION

CAUTION: If the OCVs are installed incorrectly, the vehicle may be damaged.So when installing them, be careful its connector color (Components and harness side).

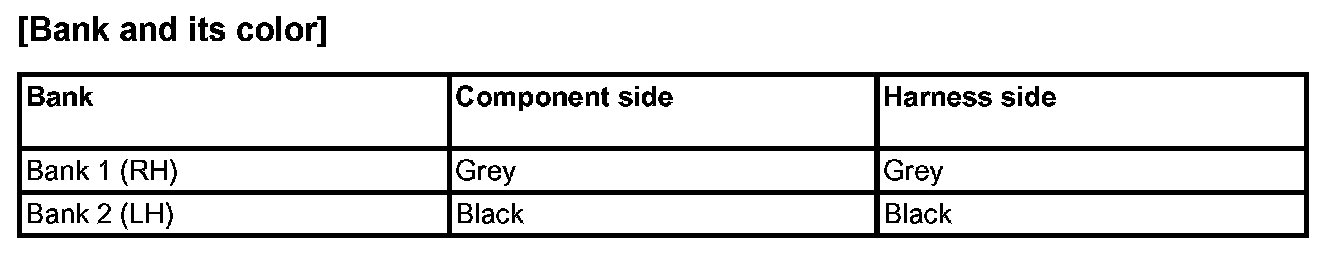

Bank And Its Color:




Bank and its color
