Turn Signal Switch: Testing and Inspection
INSPECTIONHAZARD LAMP SWITCH 1.
Disconnect the negative (-) battery terminal.
2.
Remove the center garnish and driver lower panel.
3.

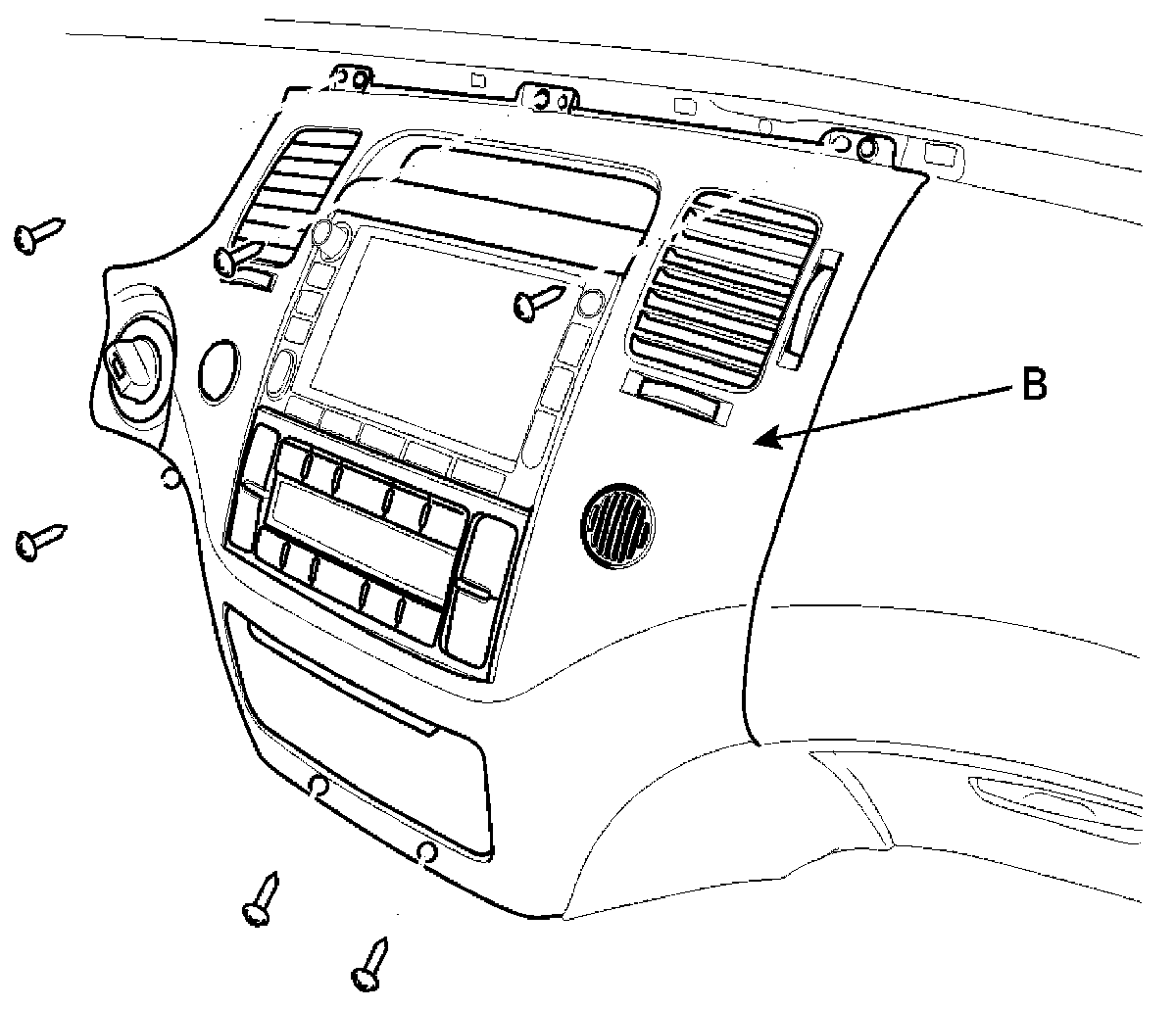

Remove the center facia panel (B) after loosening the screws. Take care not to damage fixing clips.
4.

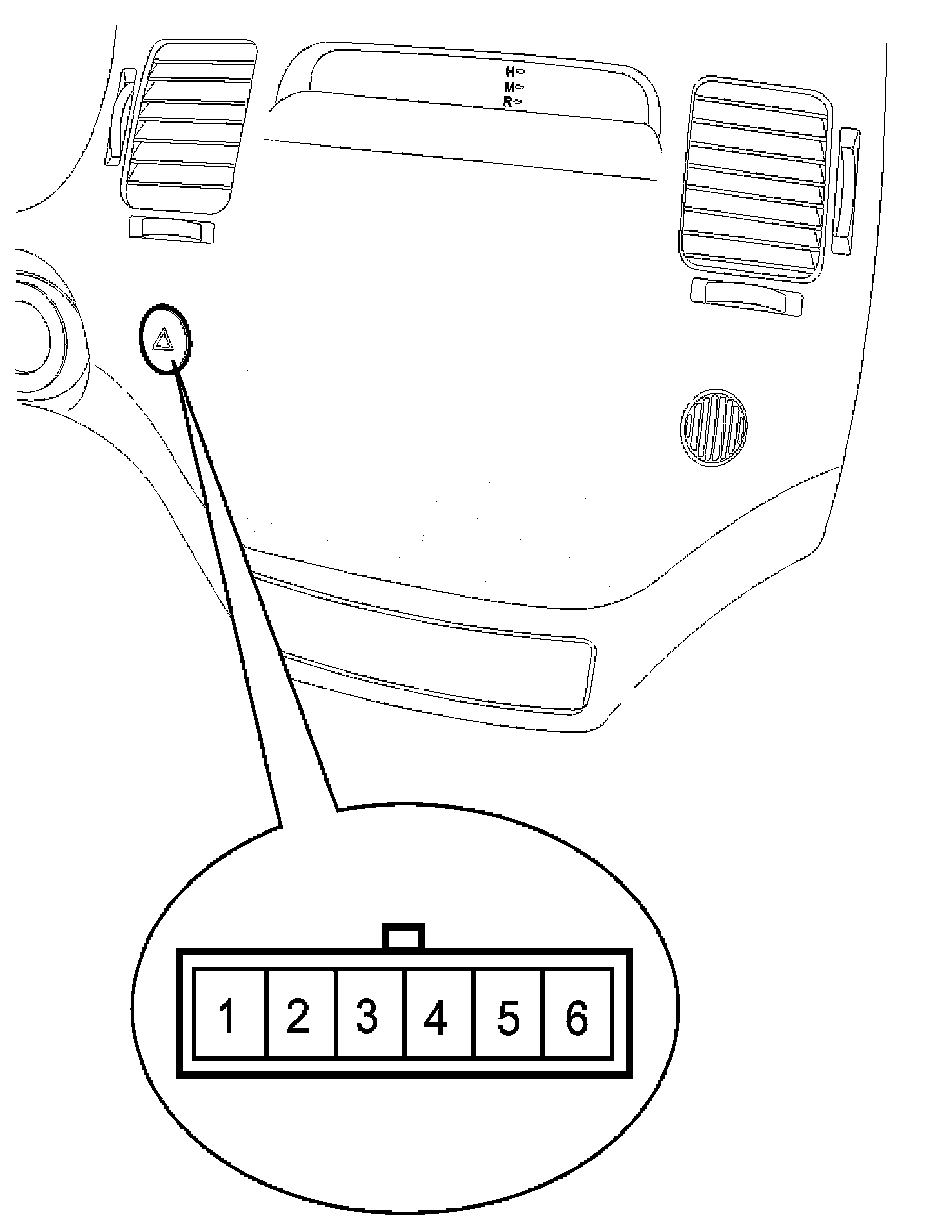

Disconnect the hazard lamp switch connector.
5.

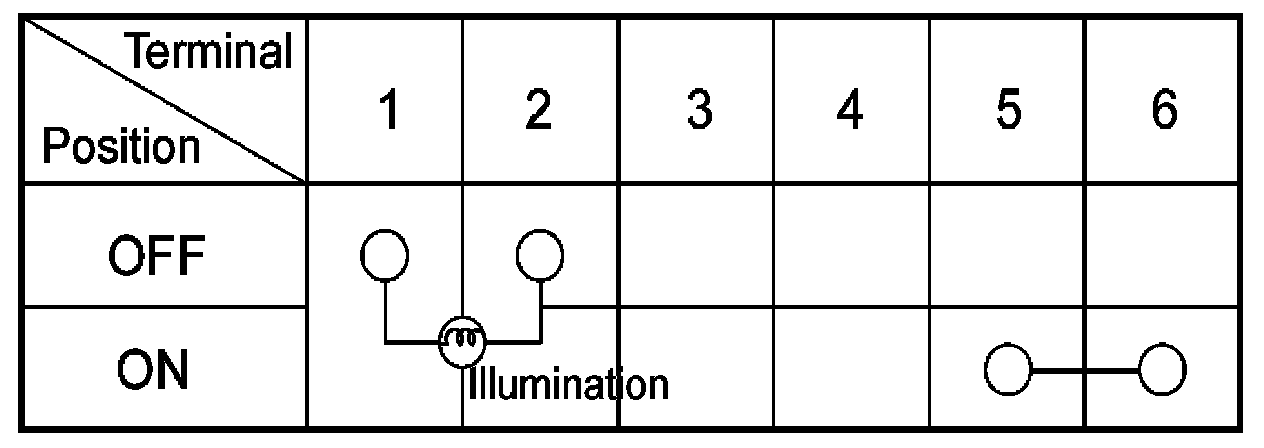

Operate the switch and check for continuity between terminals with an ohmmeter.
