Power Steering Line/Hose: Service and Repair

PRESSURE HOSE, TUBE AND RETURN TUBE, HOSE

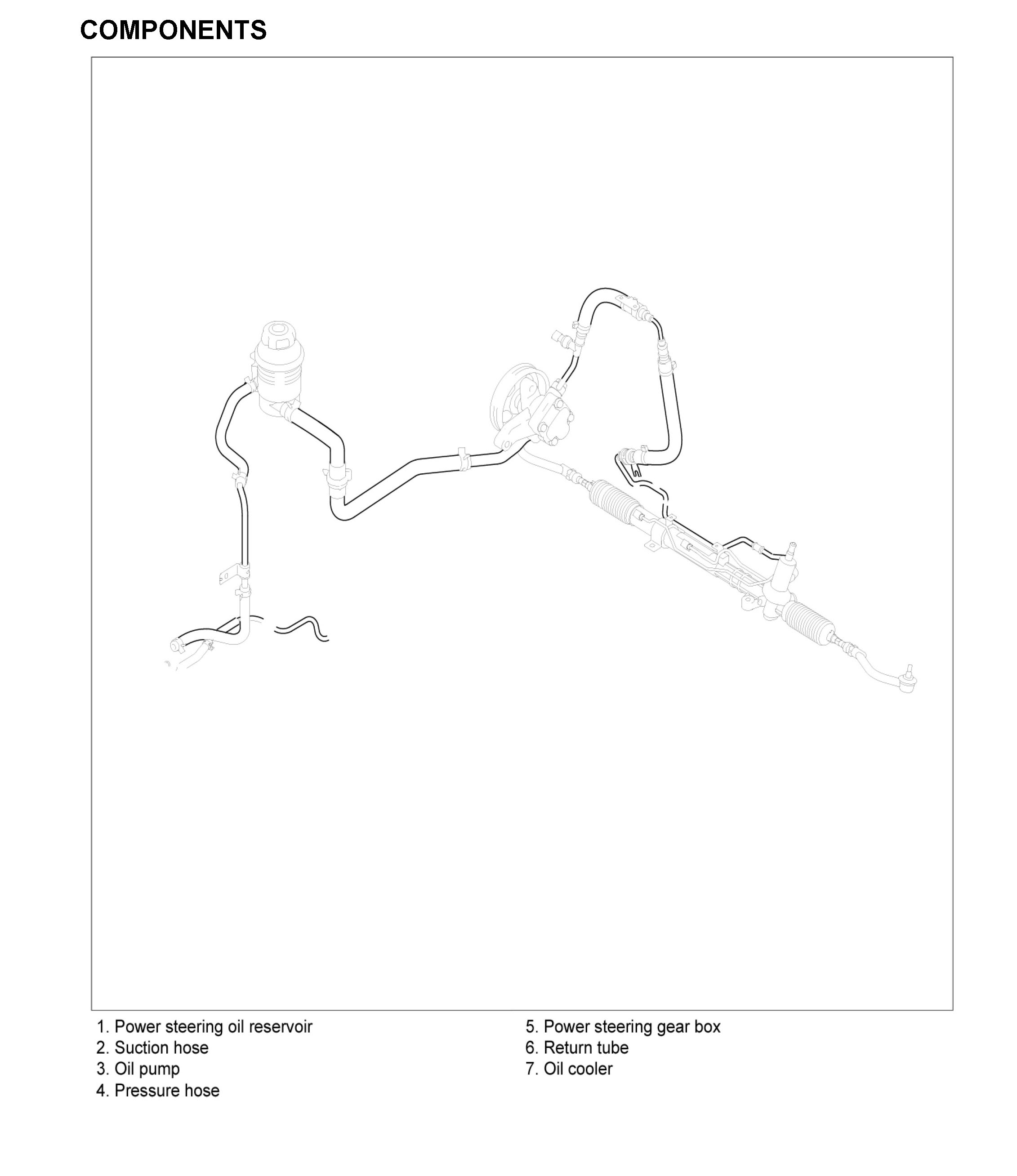

COMPONENTS:

INSTALLATION
Installation is the reverse of removal.

NOTE:
^ Install the return tube and hoses so that they are not twisted and it does not come in contact with any other parts.
^ After installation, bleed the system.

REMOVAL

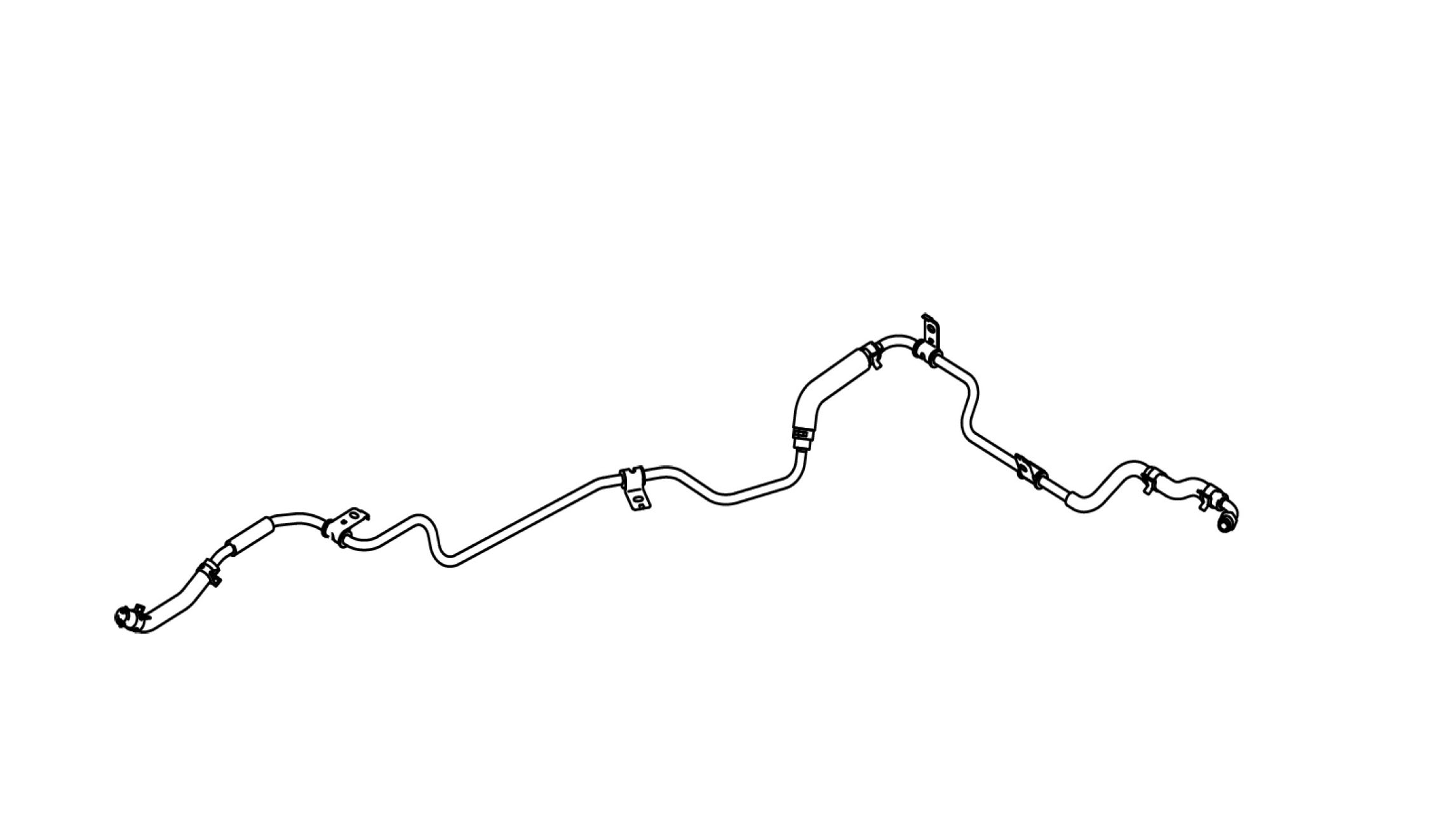

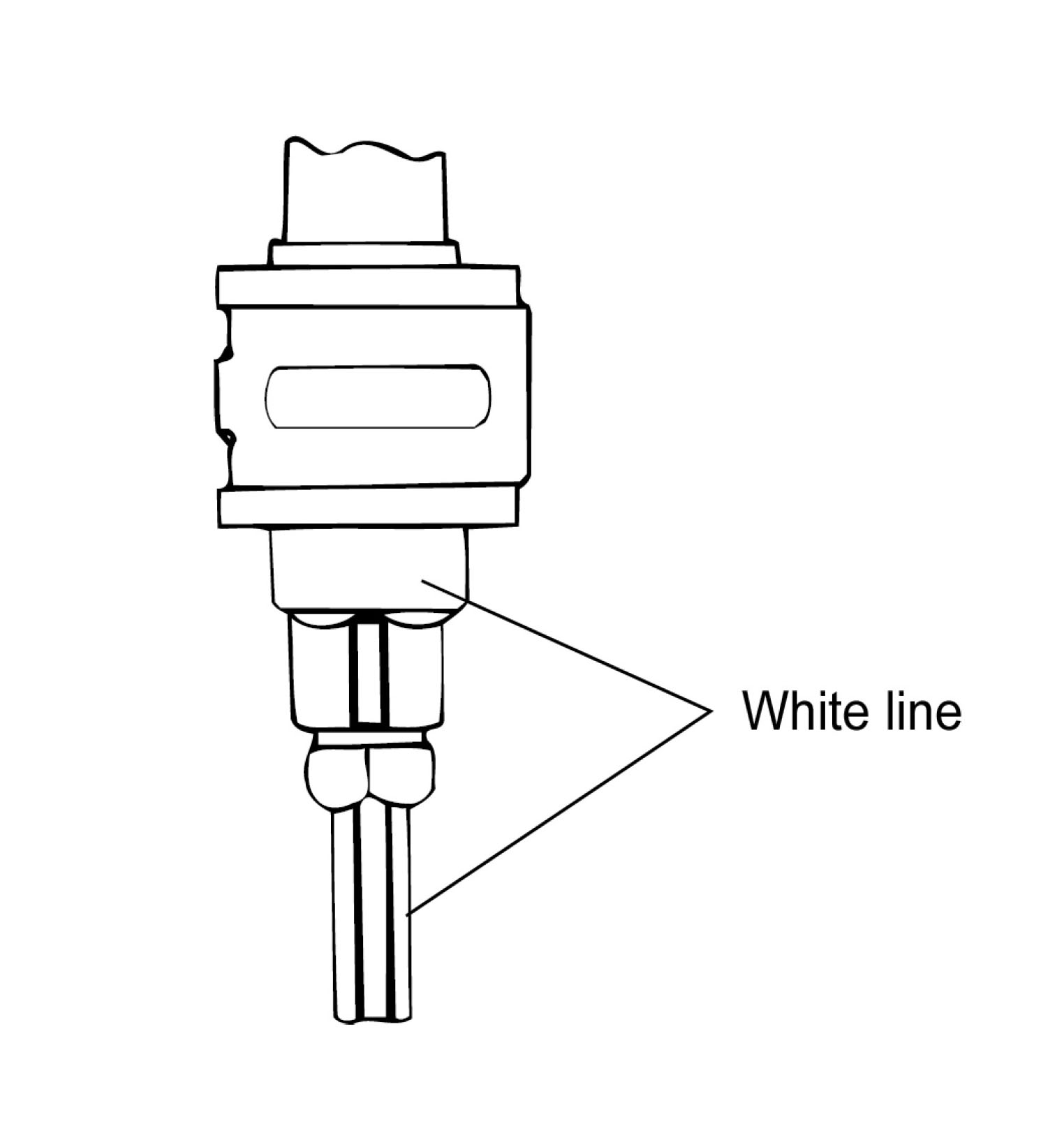

While installing the tube and hose assembly, be sure to align white marks on each fitting.





PRESSURE HOSE, TUBE AND RETURN TUBE, HOSE

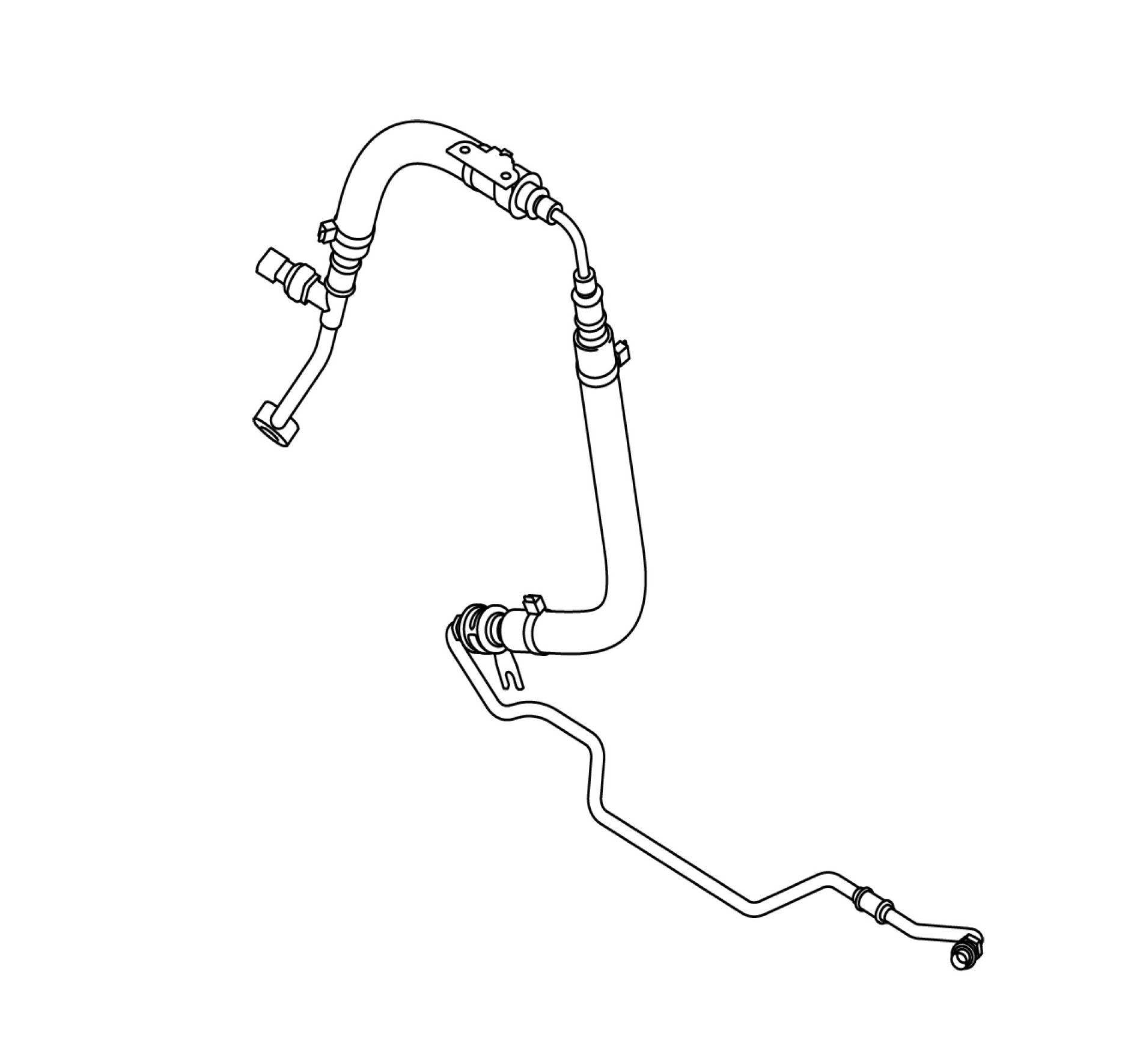

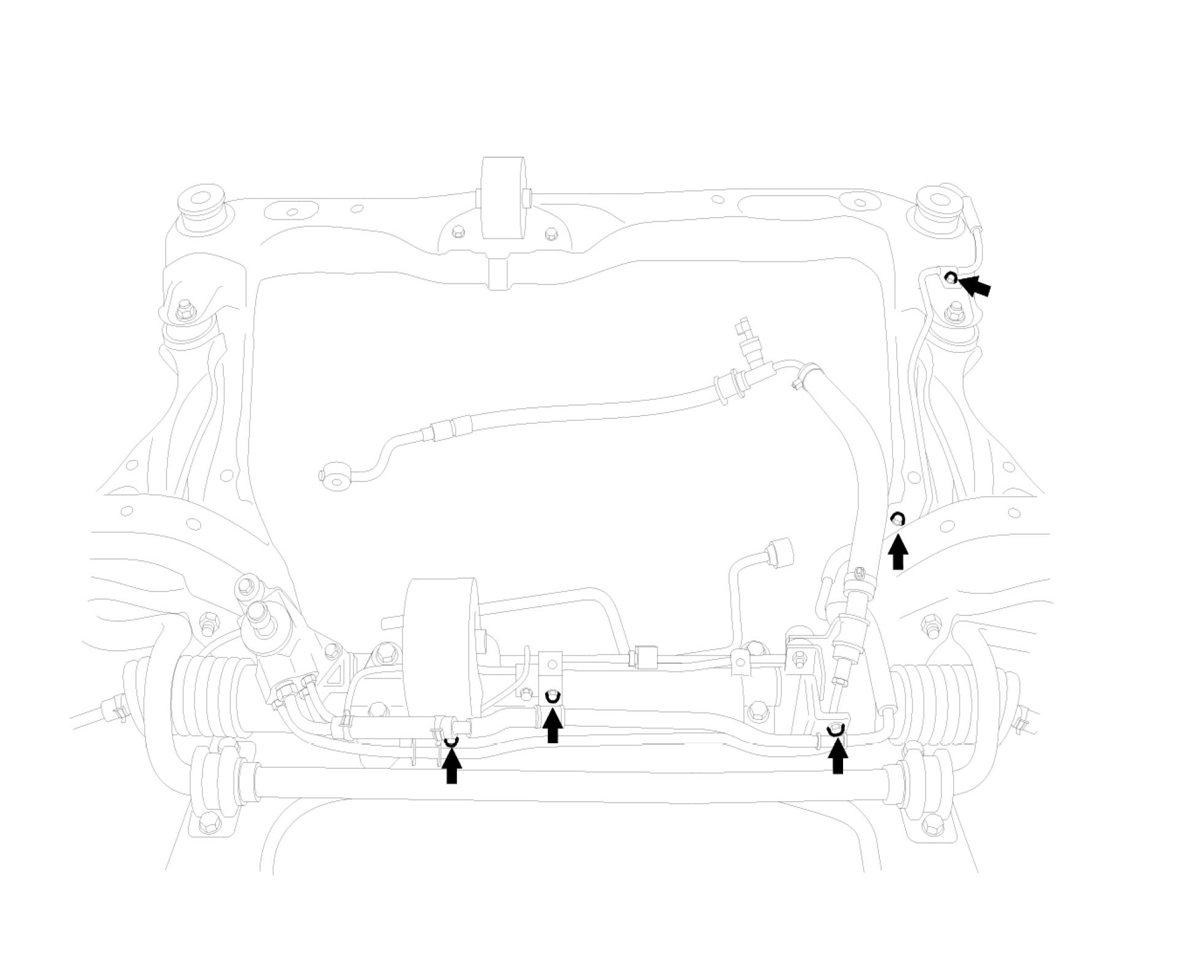

1. Remove the mounting clamps from the pressure tube and the return tube.





2. Remove the pitting of both the pressure tube and the return tube from the gear box.
3. Remove the pressure hose and tube.





4. Remove the return tube and hose.
