Overhaul
DISASSEMBLY 1.
Remove the

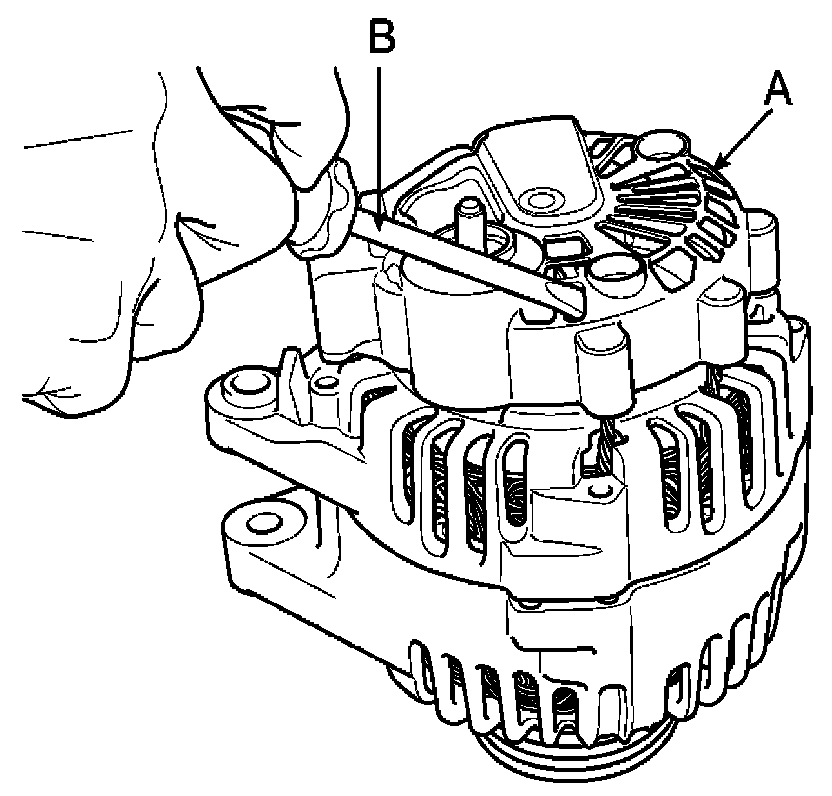

alternator cover (A) using a screw driver (B).
2.

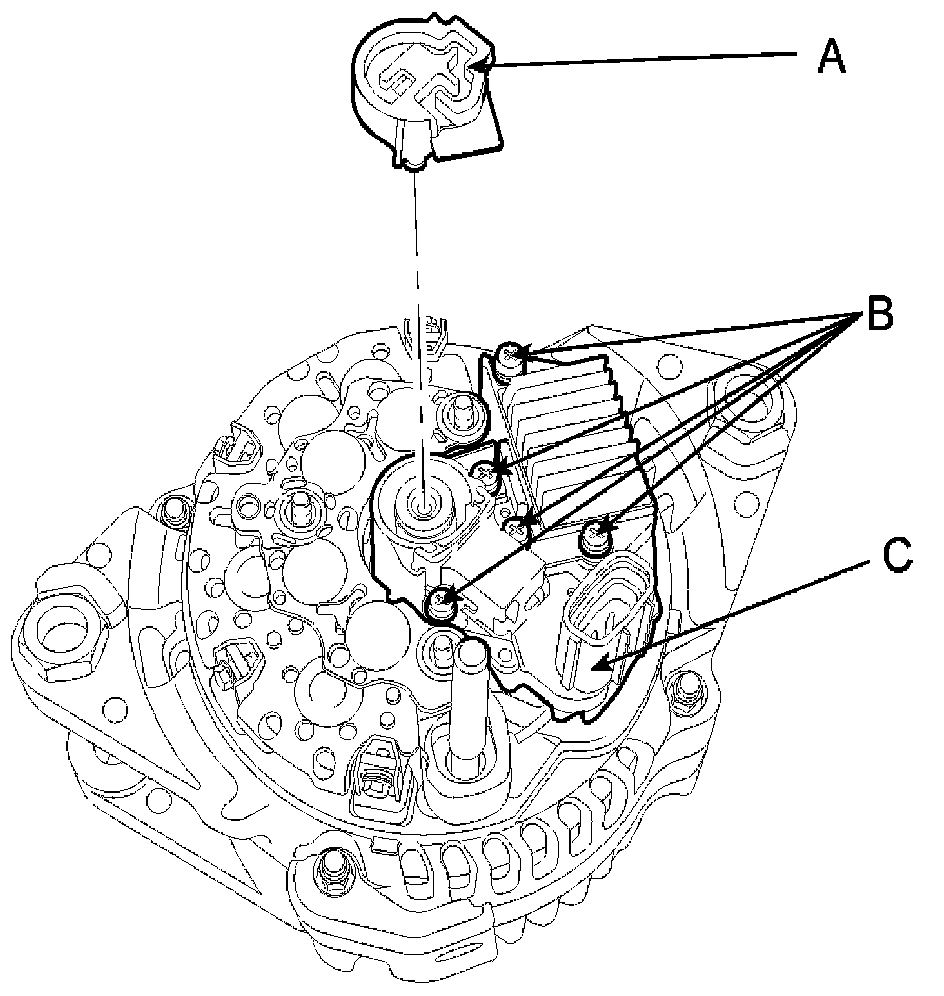

Remove the slip ring guide (A).
3.
Loosen the mounting bolts (B) and disconnect the brush holder assembly (C).
4.

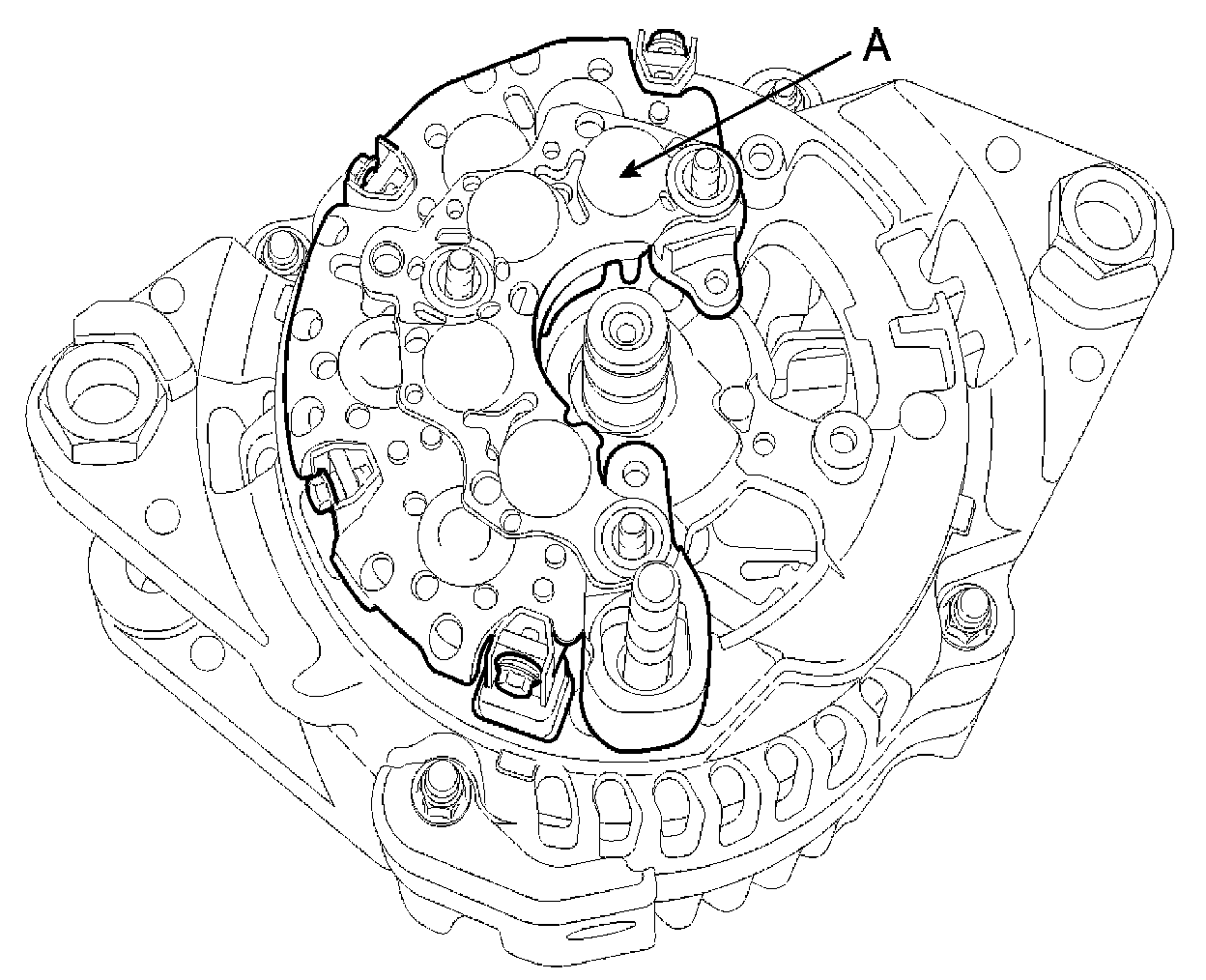

Remove the rectifier (A) with 4 screws.
5.

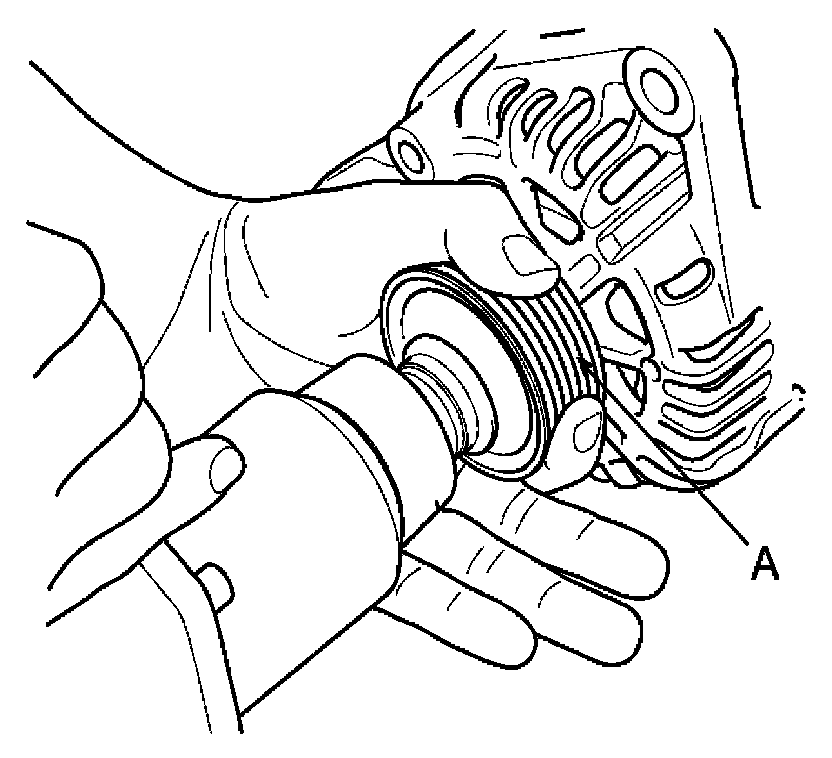

Remove the nut, pulley (A) and spacer.
6.

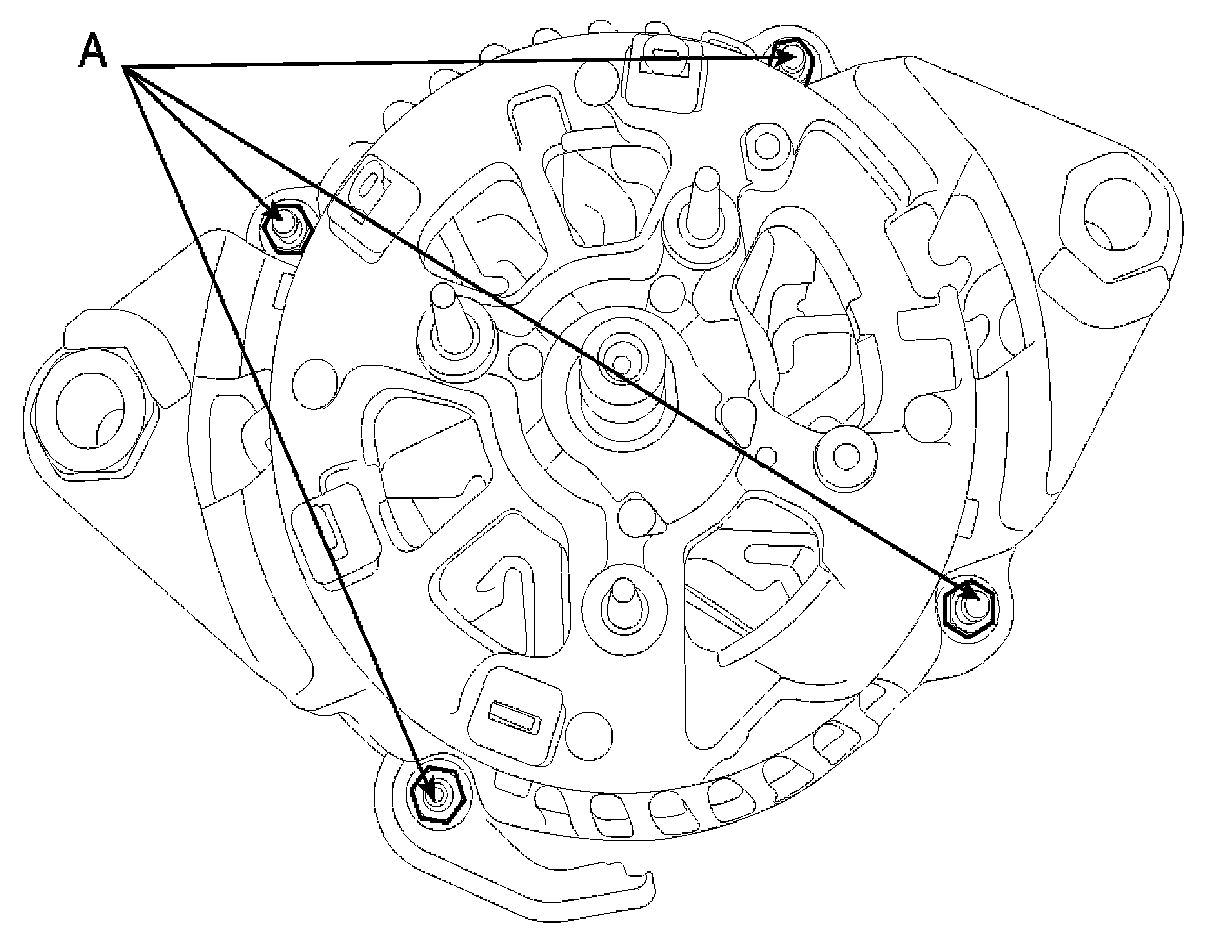

Loosen the 4 nuts (A).
7.

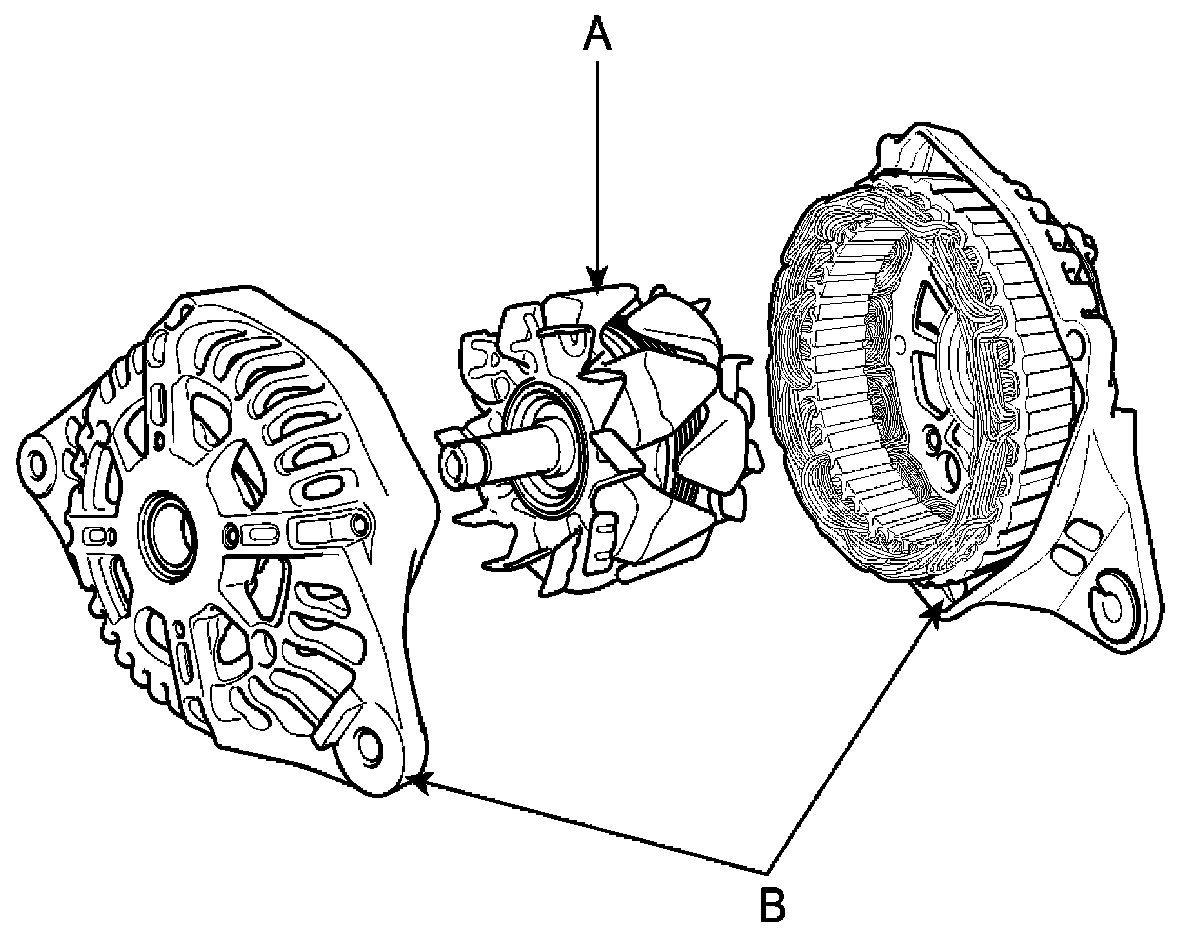

Disconnect the rotor(A) and cover (B).
8.
Reassembly is the reverse order of disassembly.
