Mechanical Specifications

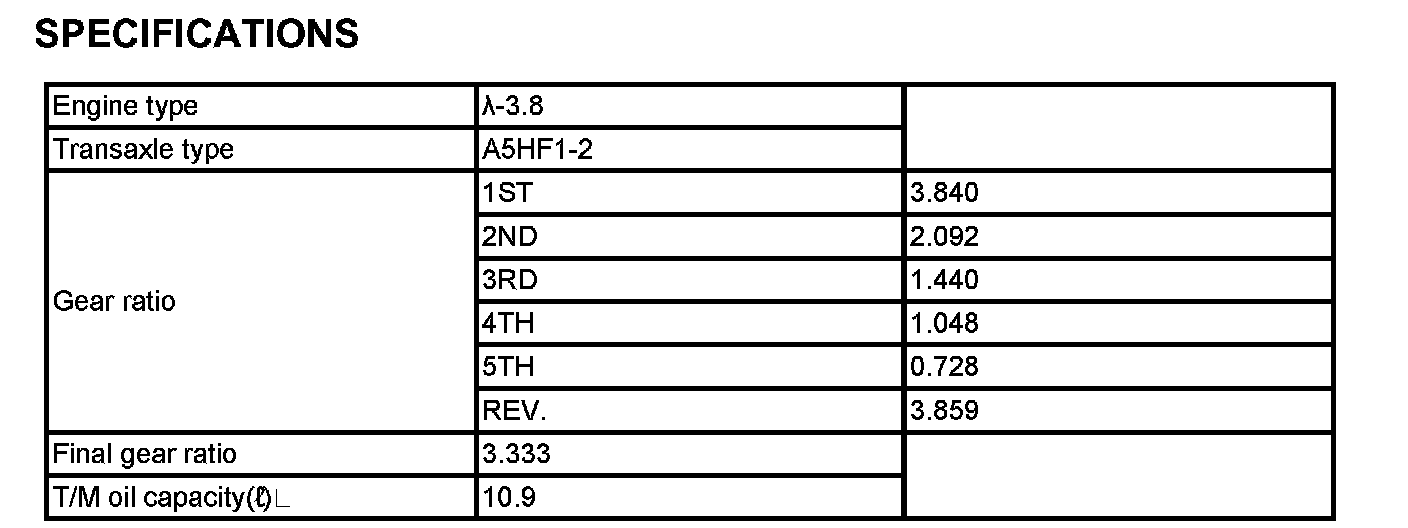

SPECIFICATIONS

SPECIFICATIONS:

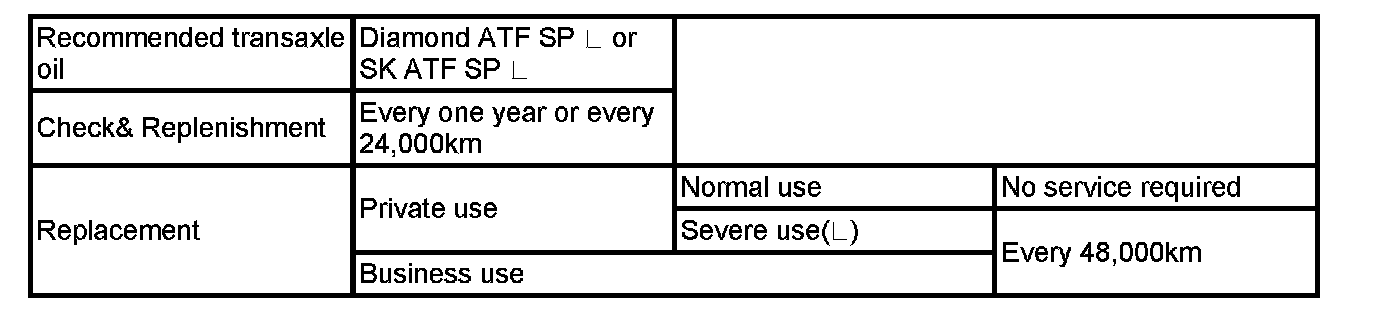

^ The quantity in the chart above is for the reference. The actual filling quantity of the automatic transaxle fluid must be set according to 'INSPECTION' or 'REPLACEMENT' procedure of the automatic transaxle fluid.





^ Severe use (marked '') is )defined as:

1. Driving on rough road (bumpy road, gravel road, snowy road, unpaved road etc.).
2. Driving on mountain road, ascent/descent.
3. Repetition of short distance driving.
4. More than 50% operation in heavy city traffic during hot weather above 32°C (89.6°F).
5. Police car, Taxi, Commercial type operation or trailer towing, etc.
