Rear Window Defogger Relay

REAR WINDOW DEFOGGER RELAY

INSPECTION
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.
3. Remove the windshield deicer relay from the junction box.

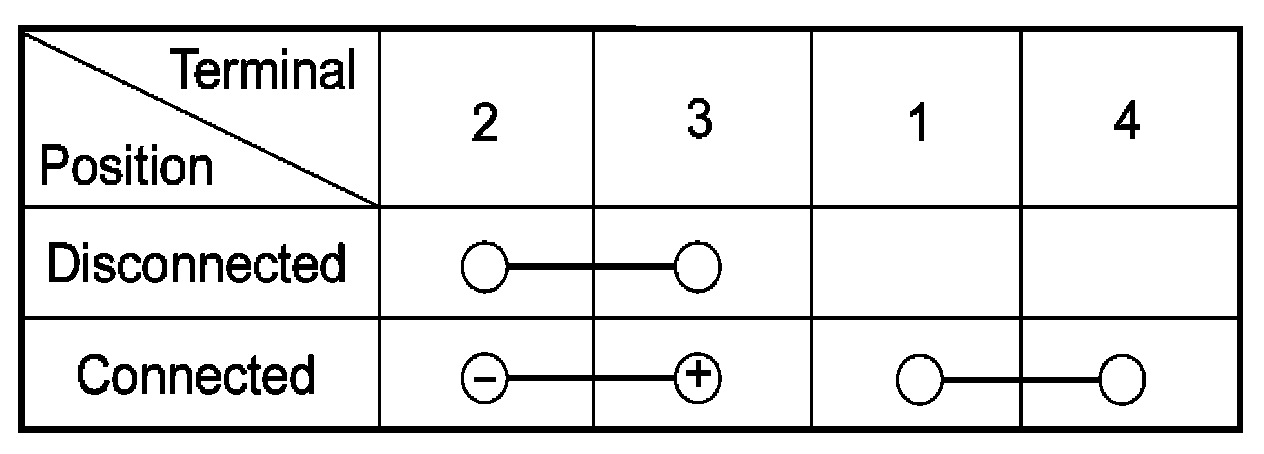

4. Check for continuity between the terminals.




5. There should be continuity between the No.1 and No.4 terminal when power and ground are connected to the No.2 terminal and No.3 terminal.




6. There should be no continuity between the No.1 terminal and No.4 terminal when power is disconnected.
