Crash Pad Center Panel Replacement

CRASH PAD CENTER PANEL REPLACEMENT

1. Remove floor console assembly.

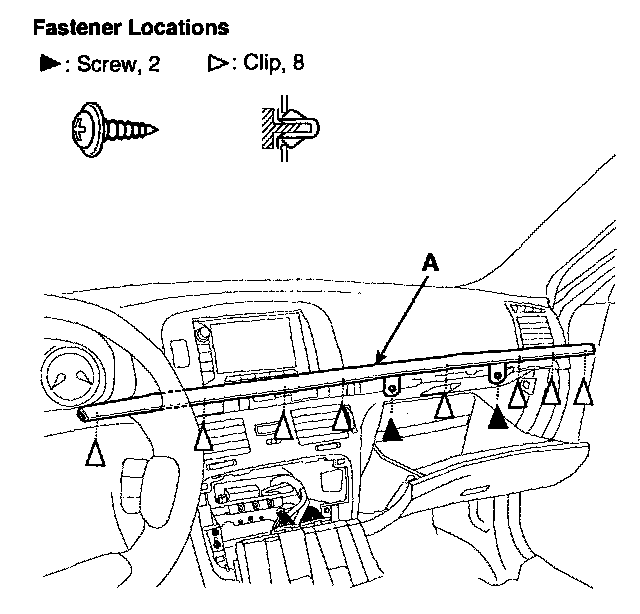

2. Remove the center garnish (A).
3. Remove the glove box.
4. Remove the center facia upper panel.

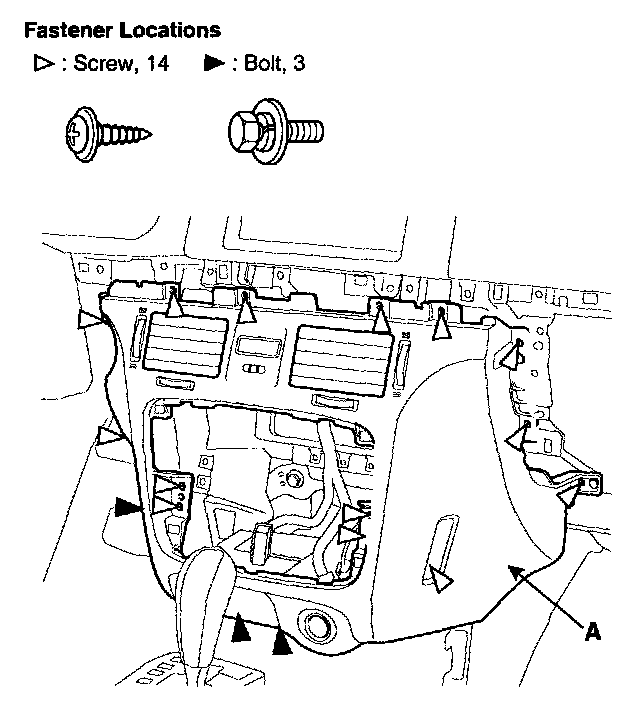

5. After loosening the crash pad lower panel mounting screw, then crash pad lower panel (A).






6. Installation is the reverse of removal.
