Tailgate Glass Latch Replacement

TAILGATE GLASS LATCH REPLACEMENT

1. Remove the tailgate trim.

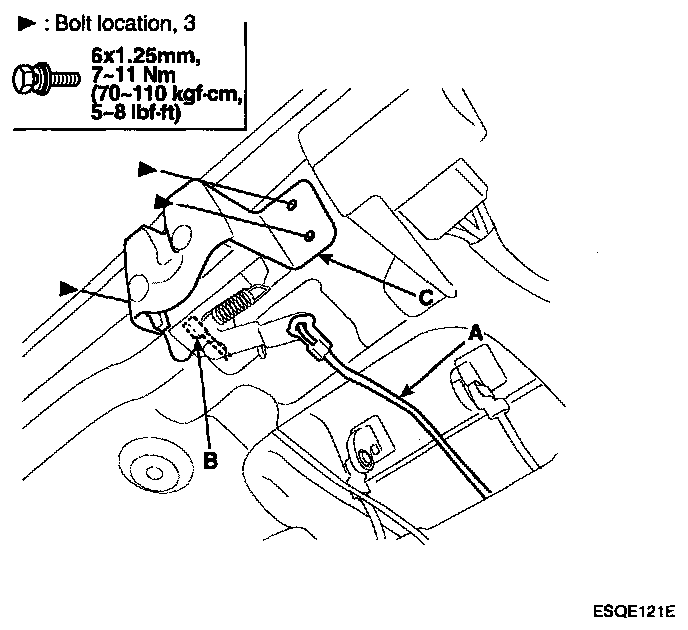

2. Disconnect the tailgate glass latch rod (A).
3. After loosening the mounting bolts, disconnect the connector (B).
4. Remove the tailgate glass latch (C).






5. Installation is the reverse of removal.

NOTE: Make sure the tailgate glass opens properly and locks securely.
