Tailgate Lock Switch Inspection
TAILGATE LOCK SWITCH INSPECTION1. Remove the tailgate trim panel.

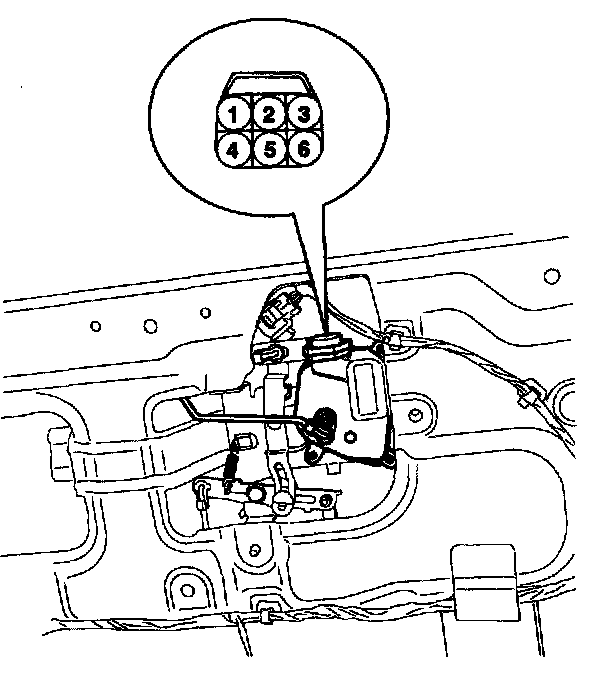

2. Disconnect the 6P connector from the actuator.

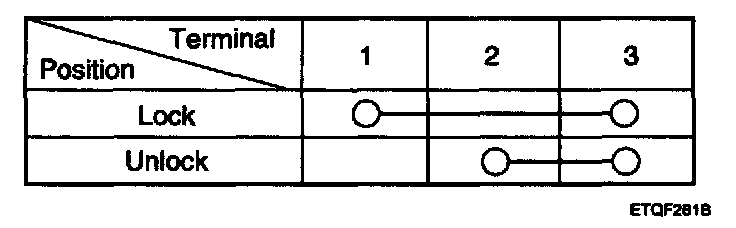

3. Check for continuity between the terminals in each switch position according to the table.
1. Remove the tailgate trim panel.
2. Disconnect the 6P connector from the actuator.
3. Check for continuity between the terminals in each switch position according to the table.
