Automatic Transmission/Transaxle

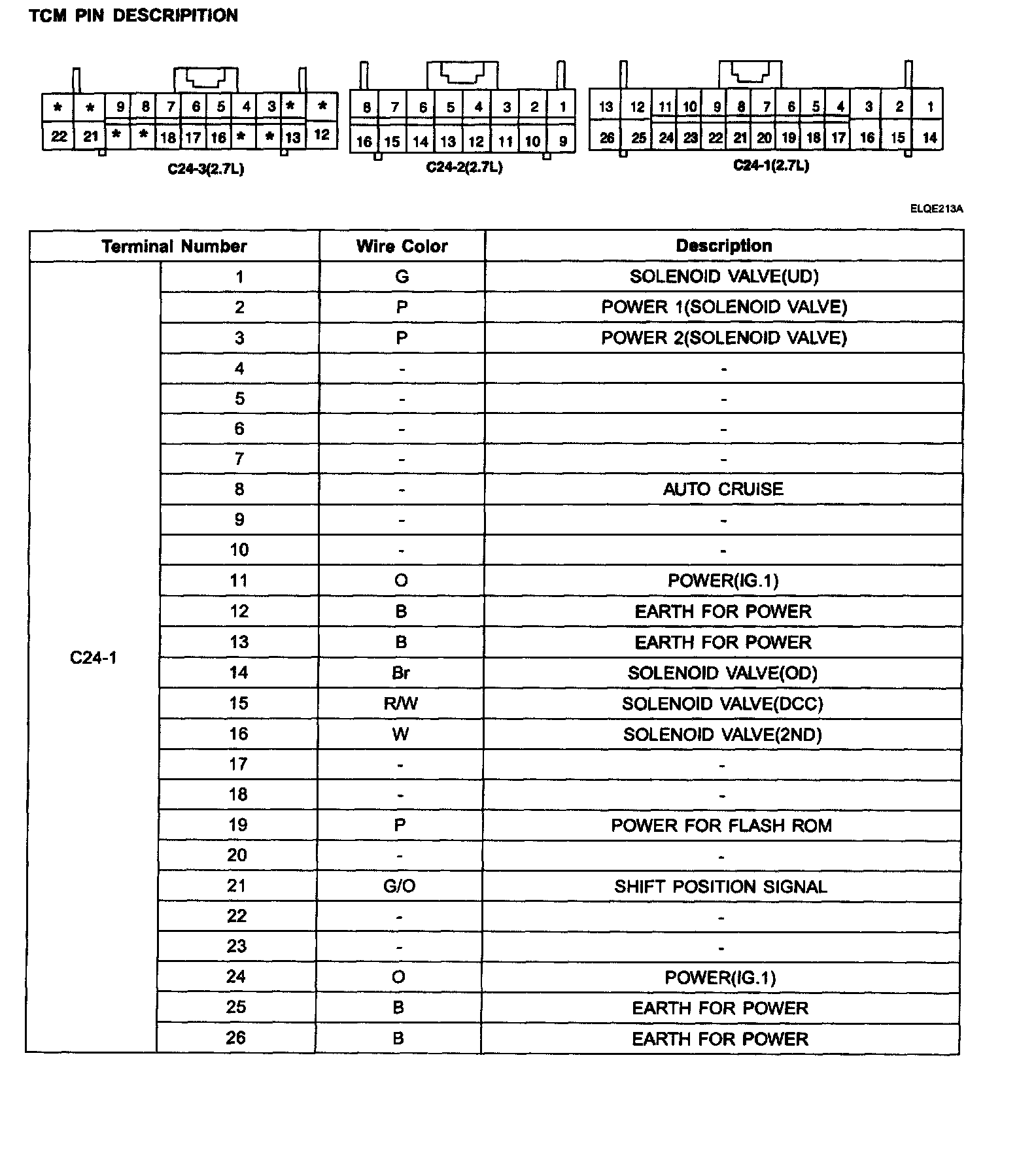

TCM PIN DESCRIPTION

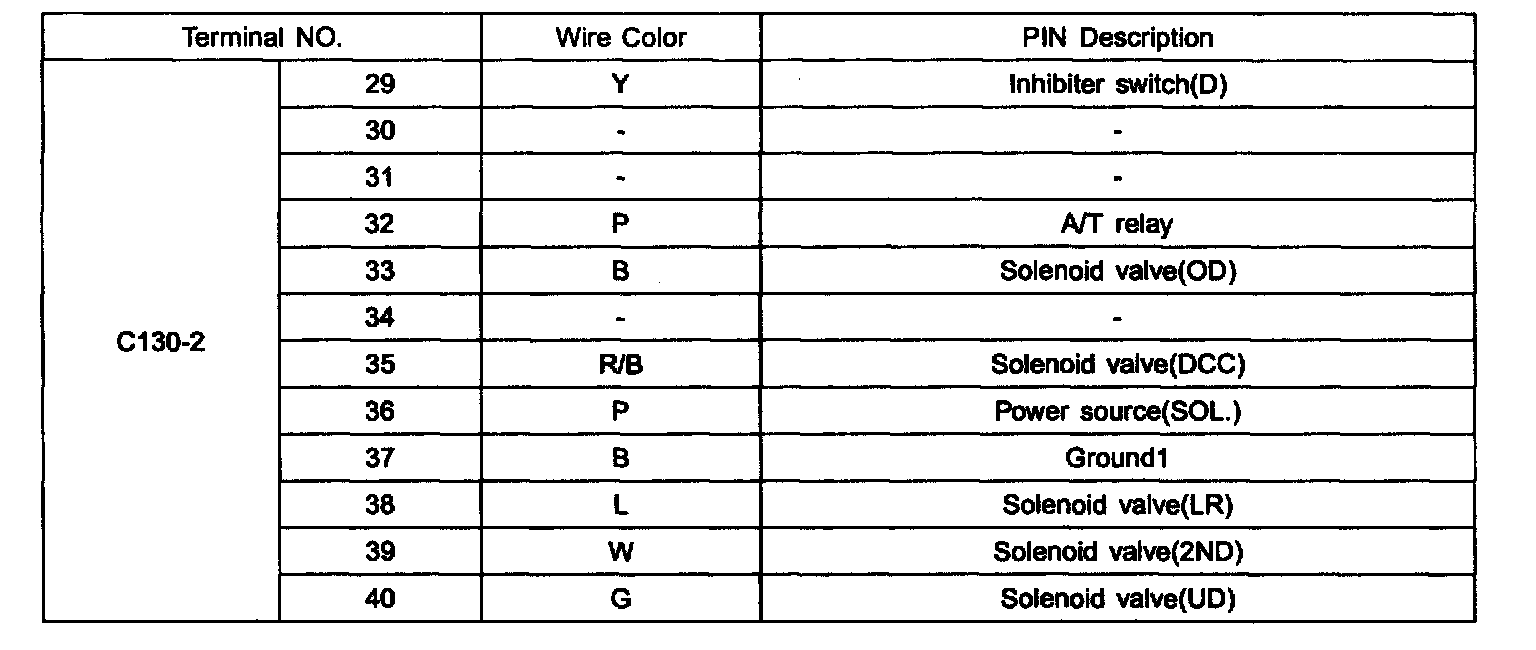

TCM PIN DESCRIPTION:

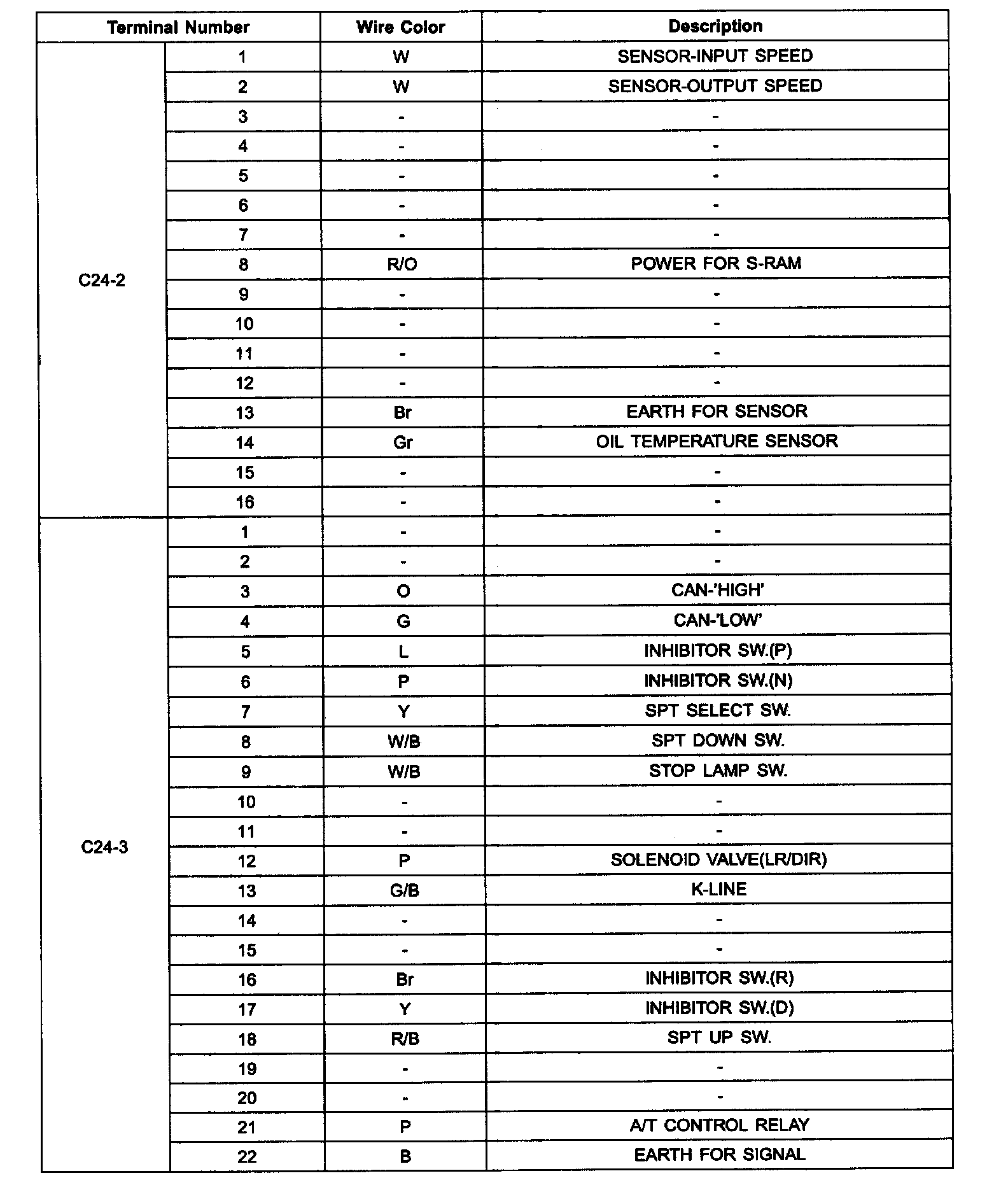

TCM PIN DESCRIPTION:

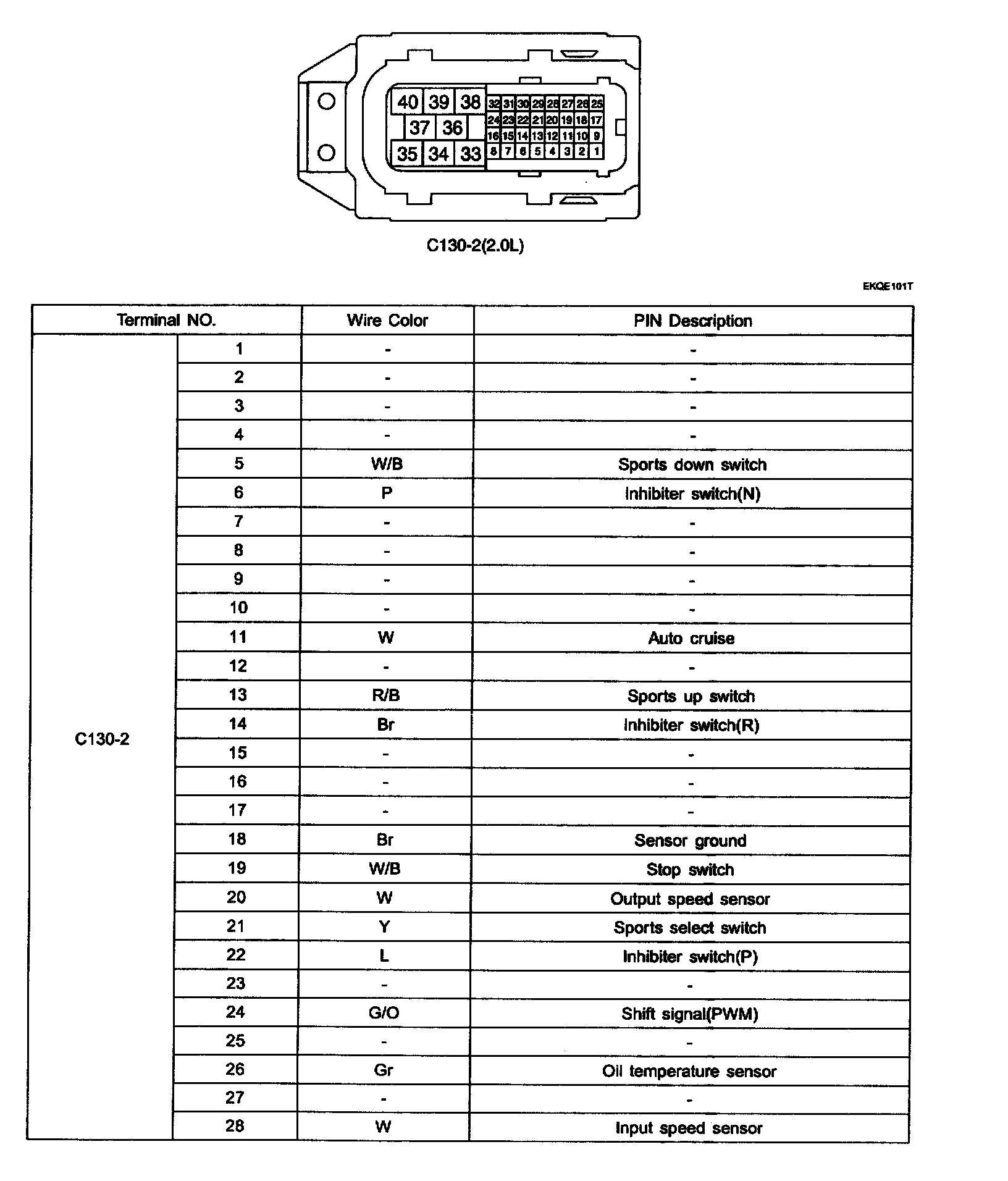

TCM PIN DESCRIPTION:




TCM PIN DESCRIPTION:
