Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
System Diagram

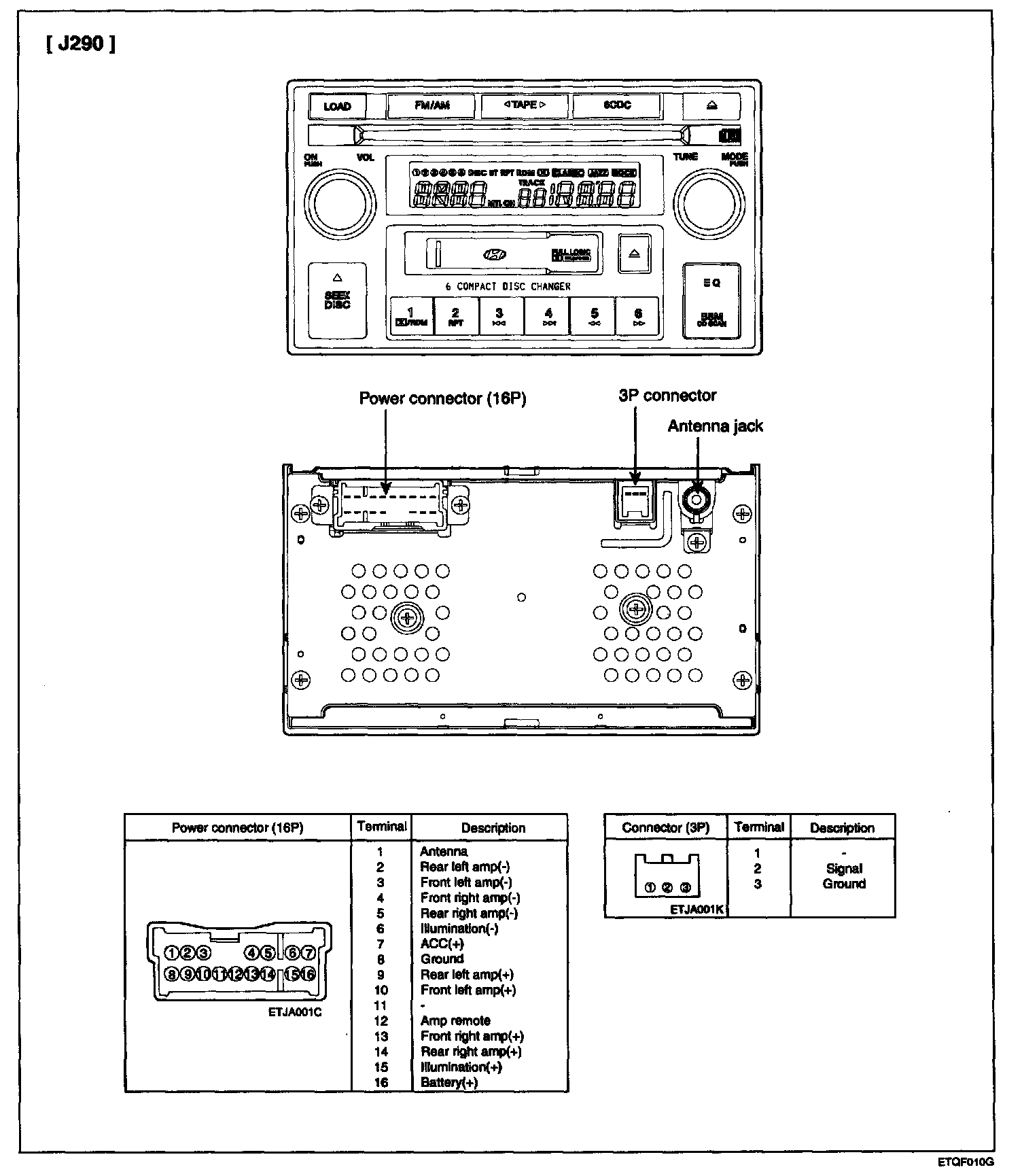

Audio Unit Components:

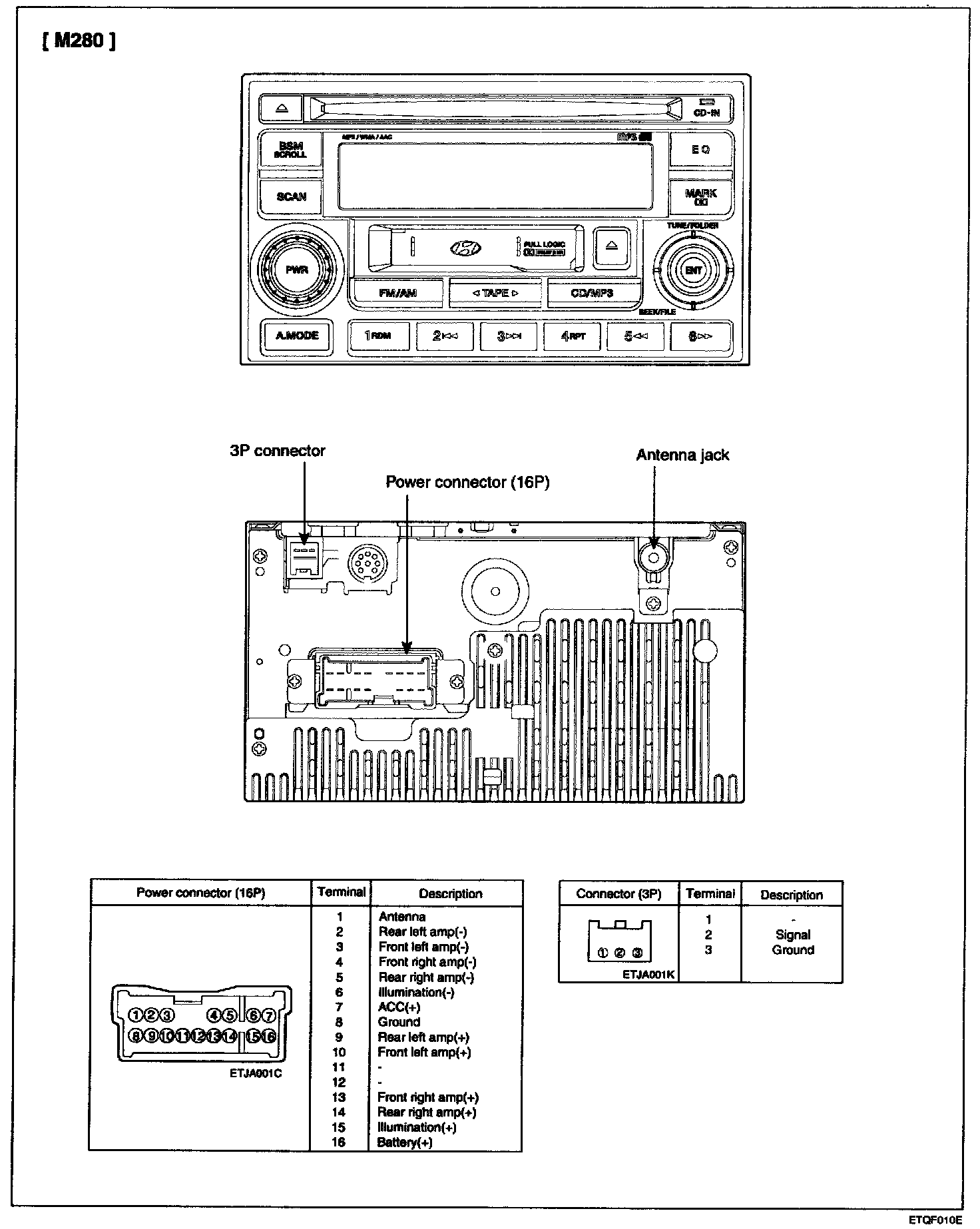

Audio Unit Components:

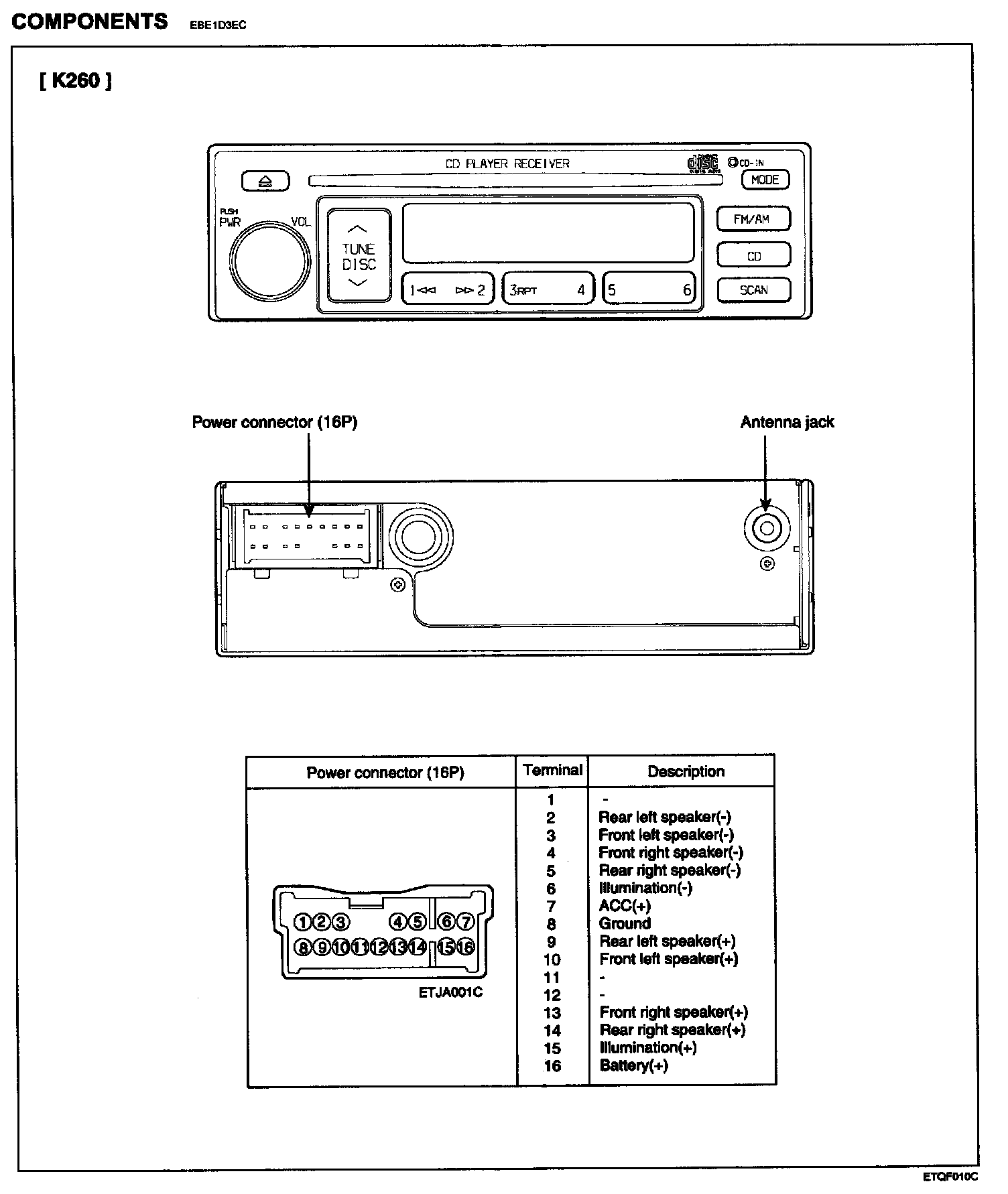

Audio Unit Components:
