Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2006
>>
Tucson V6-2.7L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>
Component Locations
>>
SRS Control System
SRS Control System

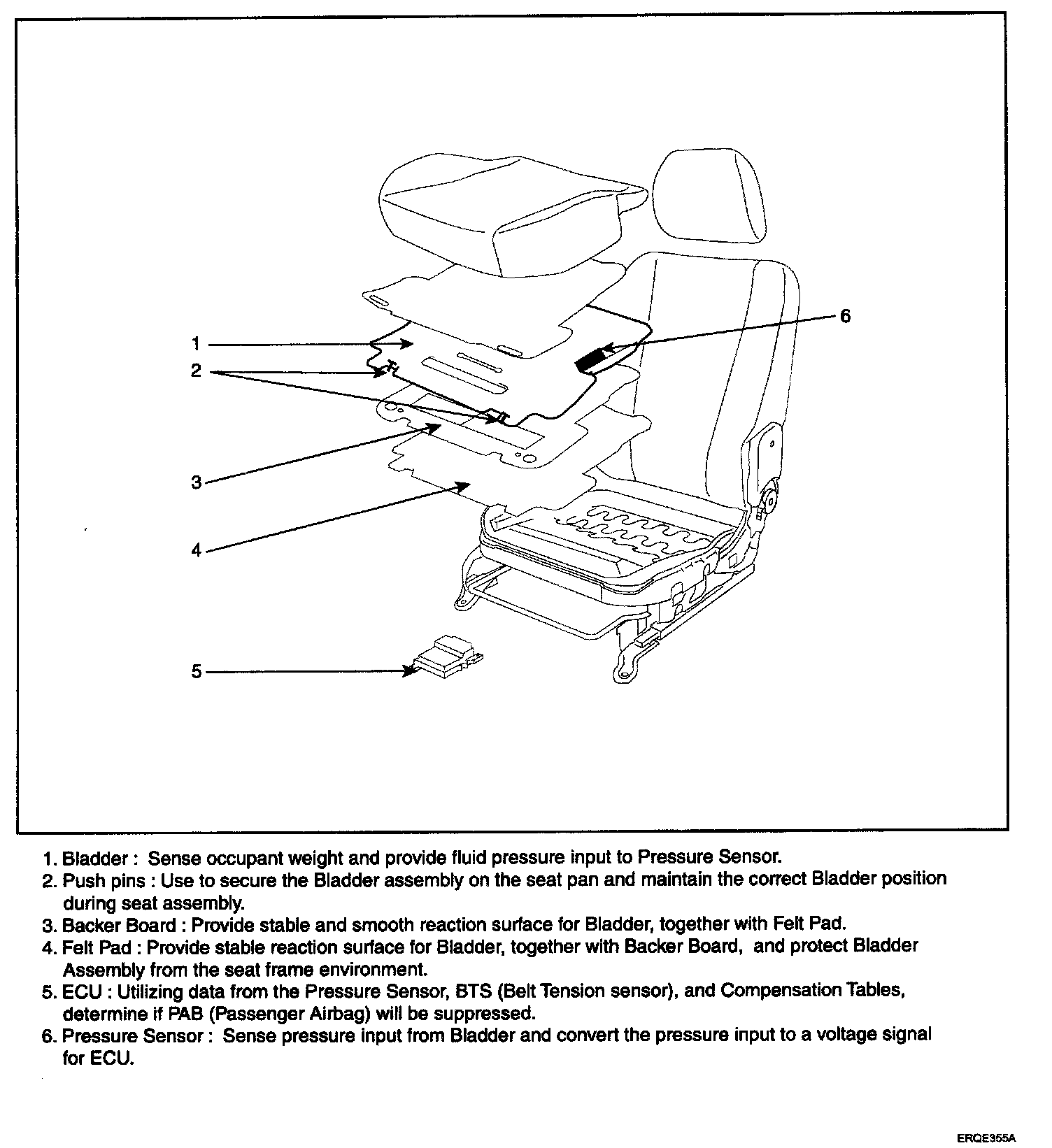

Passenger Occupant Detecting Sensor (PODS) Component:
