Front

REMOVAL

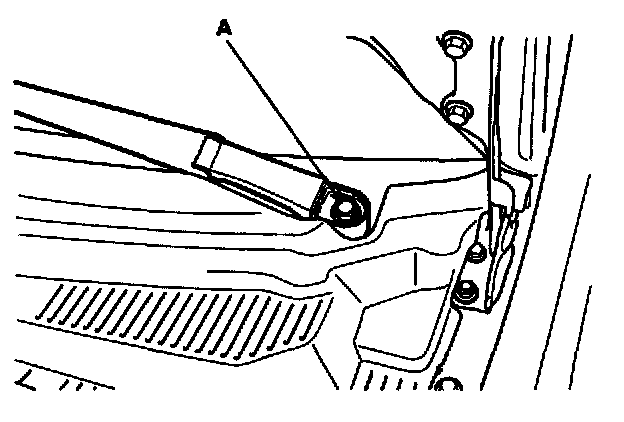

1. Detach the wiper cap, then remove the windshield wiper arm and blade after removing a nut(A).

Tightening torque : 28-33 Nm (280-330 kgf.cm, 20.2-23.8 lbf-ft)

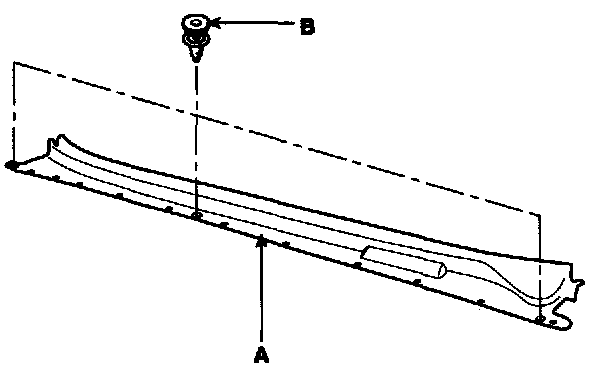

2. Remove the weatherstrip then remove the cowl top cover(A) after removing 3 screws(B).

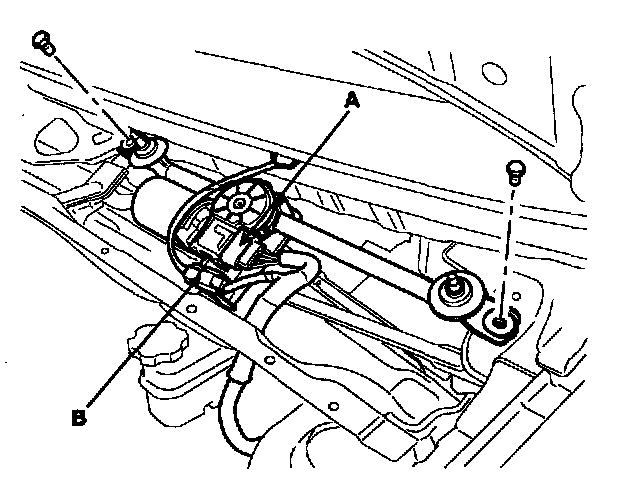

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts.
Disconnect the wiper motor connector(A) and windshield deicer connector(B) from the wiper motor & linkage assembly.

Tightening torque : 7-11 Nm (70-110 kgf.cm, 5.1-8.0 lbf.ft)

4. Installation is the reverse of removal.

INSTALLATION







1. Install the wiper arm and blade to the specified position.

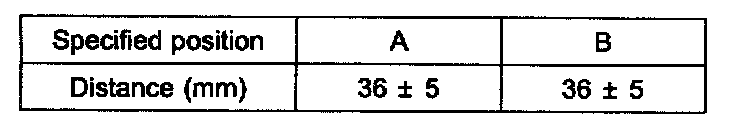

2. Set the washer nozzle on the specified spray position.
