Symptom Related Diagnostic Procedures

KEYLESS ENTRY AND BURGLAR ALARM

TROUBLESHOOTING

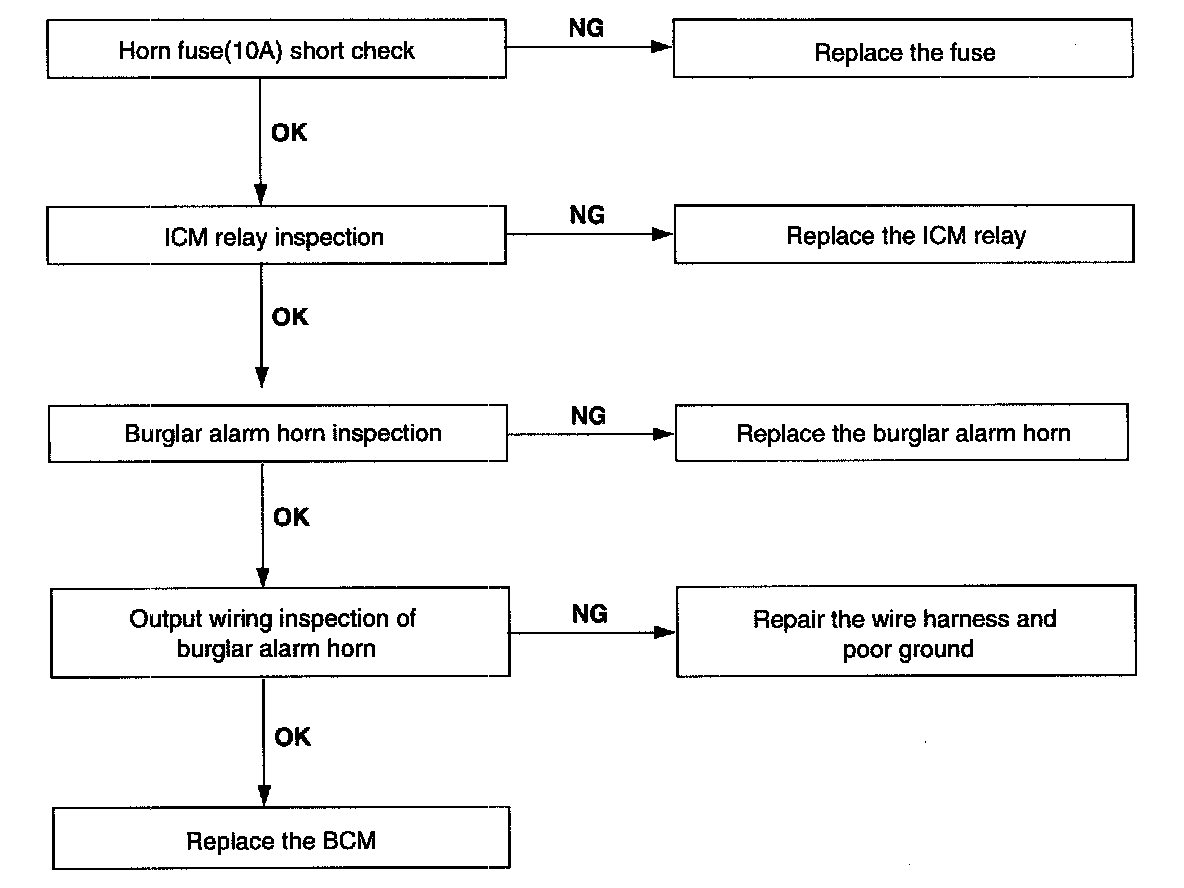

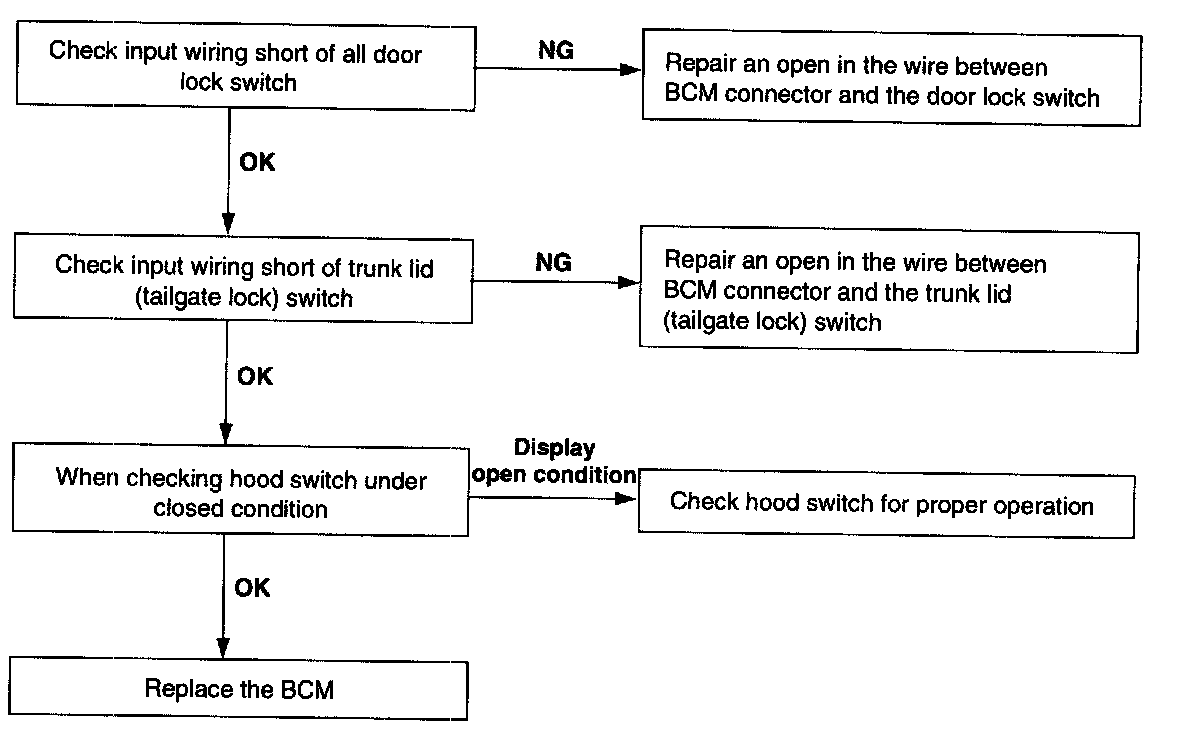

1. Alarm does not work. (Hazard lamps work)

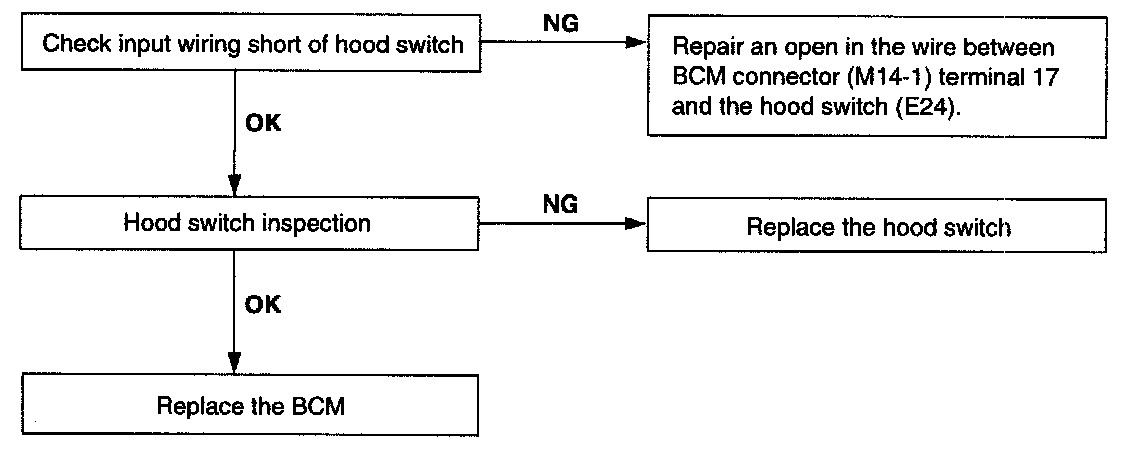

2. When hood is opened in ARM mode, burglar horn does not work.

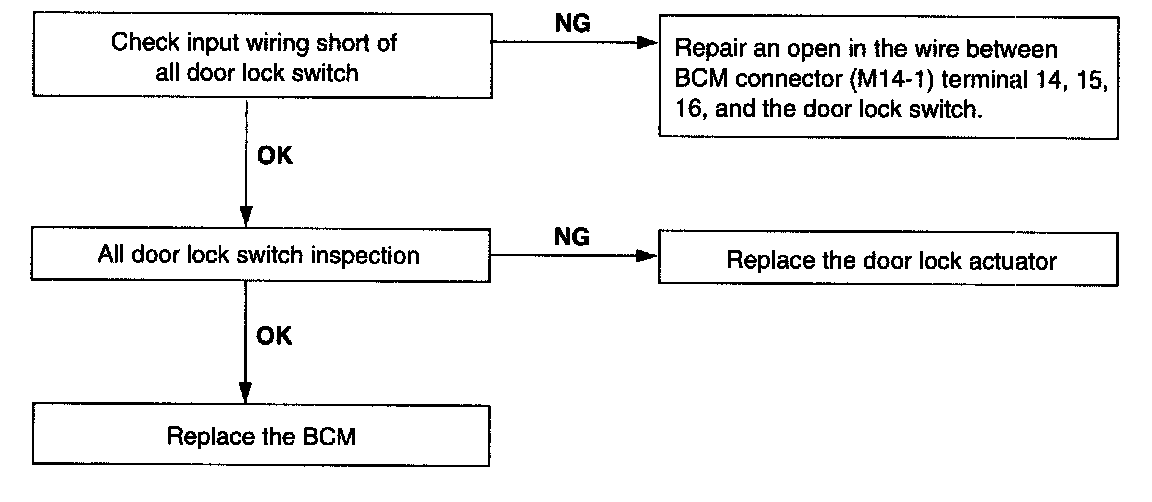

3. When door is opened in ARM mode, burglar horn does not work (If tailgate and hood is opened, alarm works)

4. When tailgate is opened in ARM mode, burglar horn does not work.

5. When the vehicle is locked by the transmitter, central door lock function works but hazard lamp doesn't blink.
