Power Door Lock Relay: Testing and Inspection

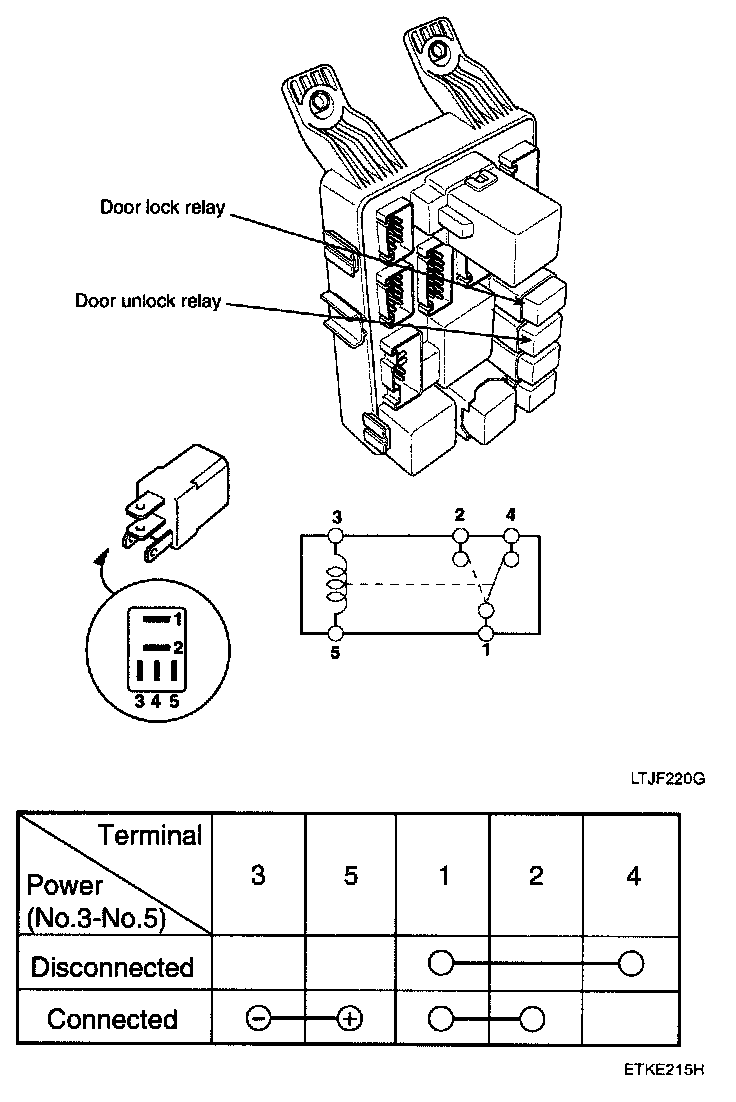

POWER DOOR LOCK RELAYINSPECTION 1.
Remove the door lock/unlock relay from the junction box.
2.
Check for continuity between the terminals.
3.
There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.5 terminals.
4.
There should be continuity between the No.1 and No.4 terminals when power is disconnected.
