Power Door Lock Switch: Testing and Inspection

POWER DOOR LOCK SWITCH

INSPECTION

DRIVER DOOR LOCK SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim panel.

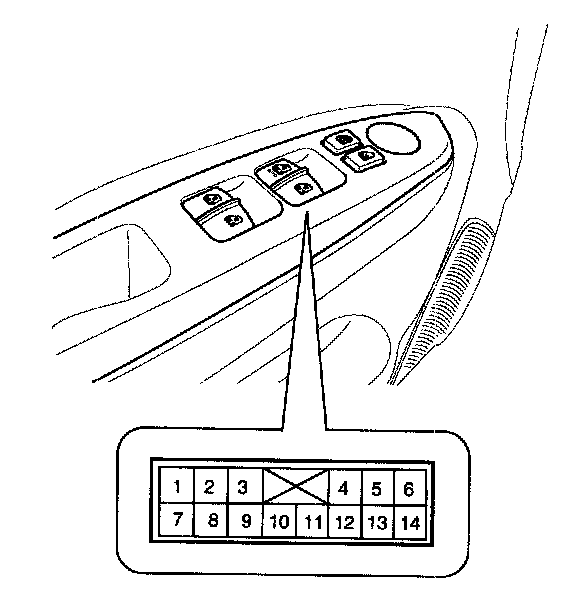

3. Disconnect the 14P connector from the switch.

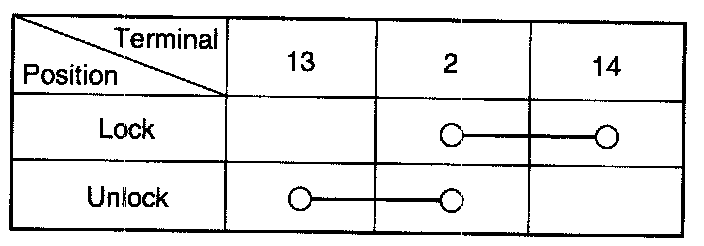

4. Check for continuity between the terminals in each switch position according to the table.
