Power Mirror Switch: Testing and Inspection
POWER DOOR MIRROR SWITCHINSPECTION 1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim panel.
3.

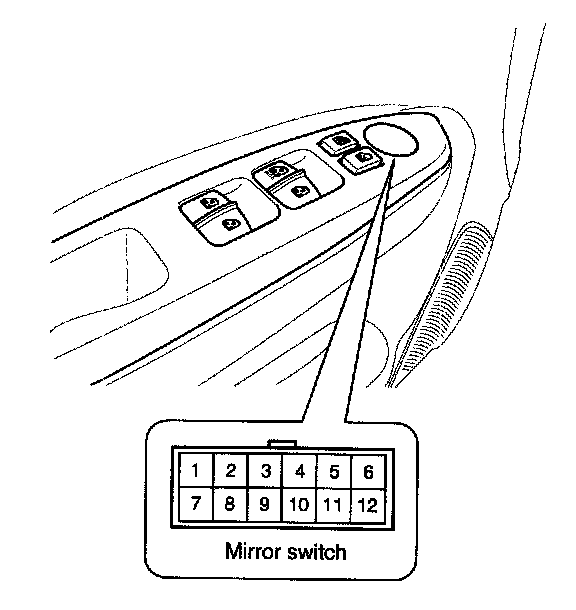

Disconnect the 12P connector from the switch.
4.

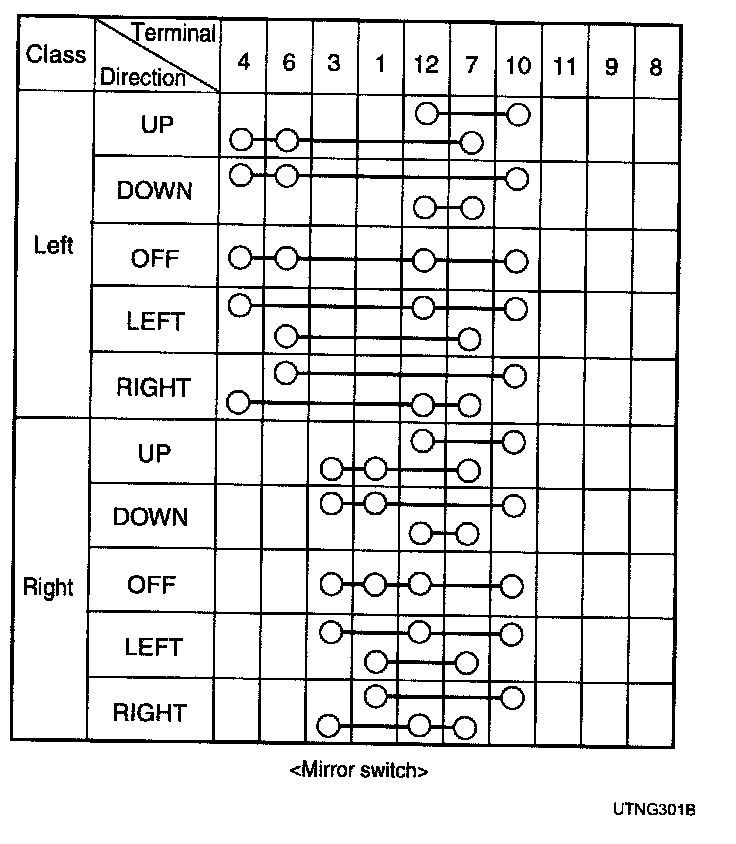

Check for continuity between the terminals in each switch position according to the table.
