Brake Light Switch: Testing and Inspection
BACKUP LAMP SWITCH INSPECTION 1.

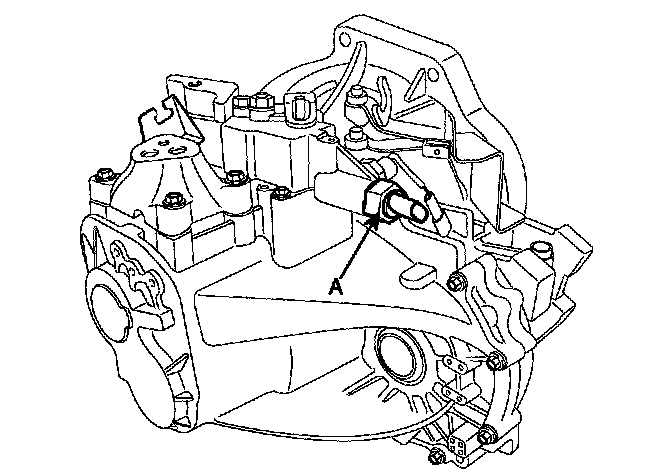

Disconnect the
backup lamp switch(A).
2.

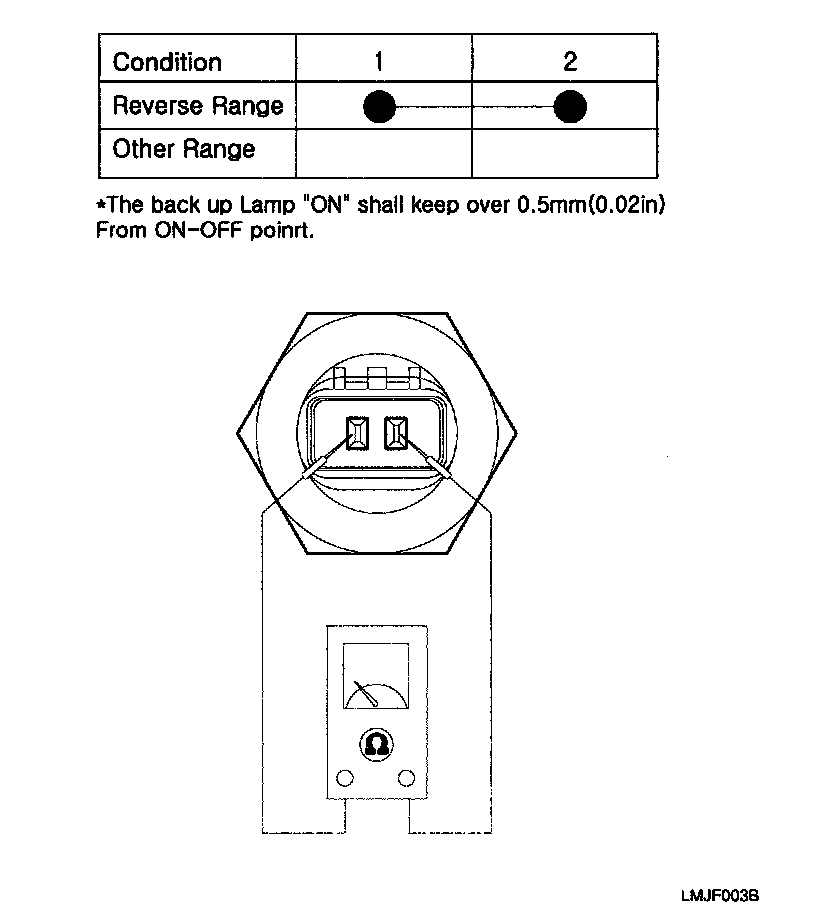

Check the continuity between no. 1 and 2 terminals of
backup lamp switch.
When the shift [ever is in reverse, there should be continuity.
3.
If necessary, repair or replace the
backup lamp switch.
