Combination Switch: Testing and Inspection

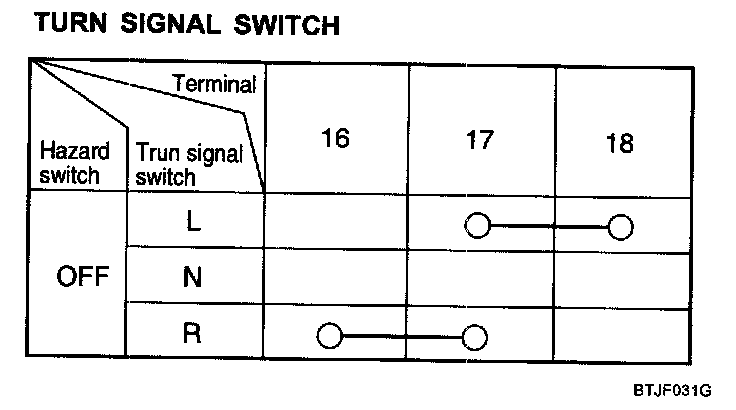

MULTI FUNCTION SWITCH

INSPECTION

Part 1:




Part 2:

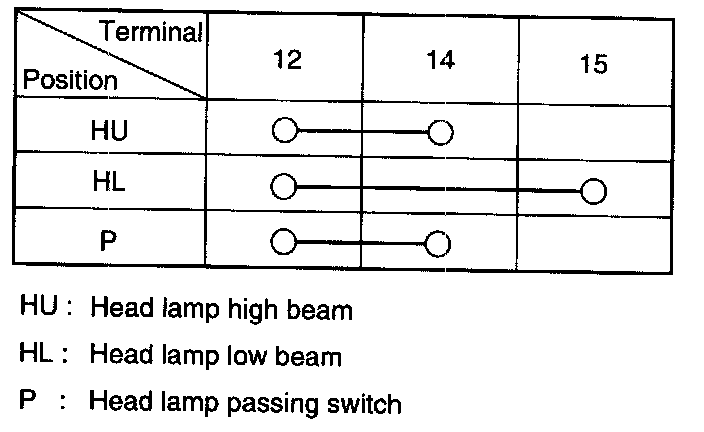

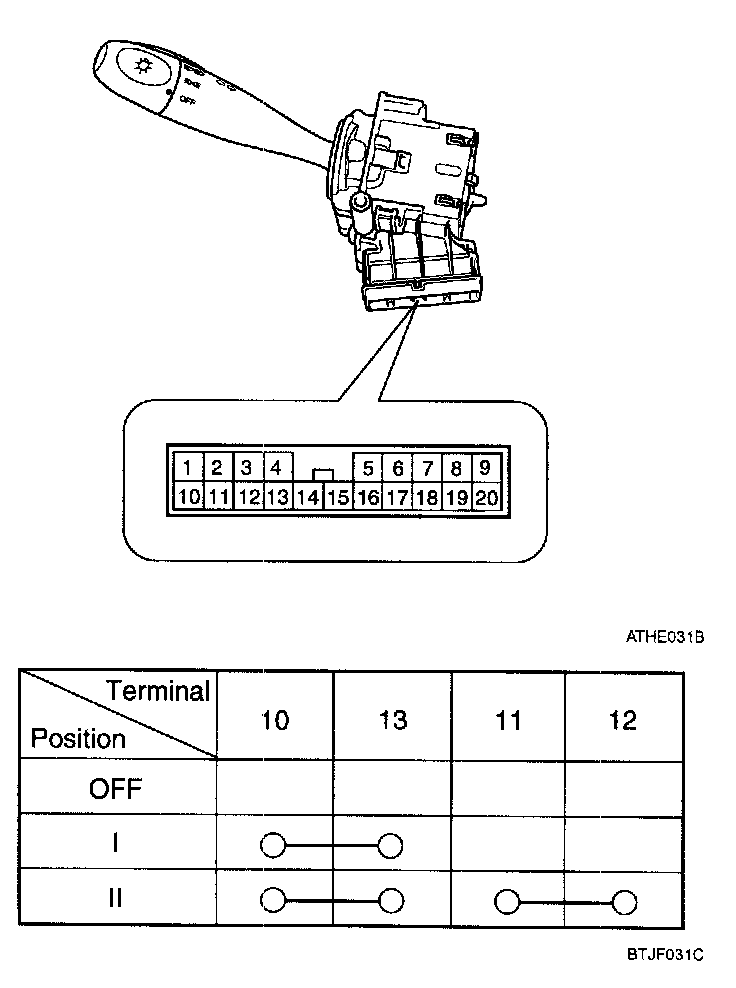

LIGHTING SWITCH INSPECTION
With the multifunction switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multi-function switch.

Part 1:




Part 2:

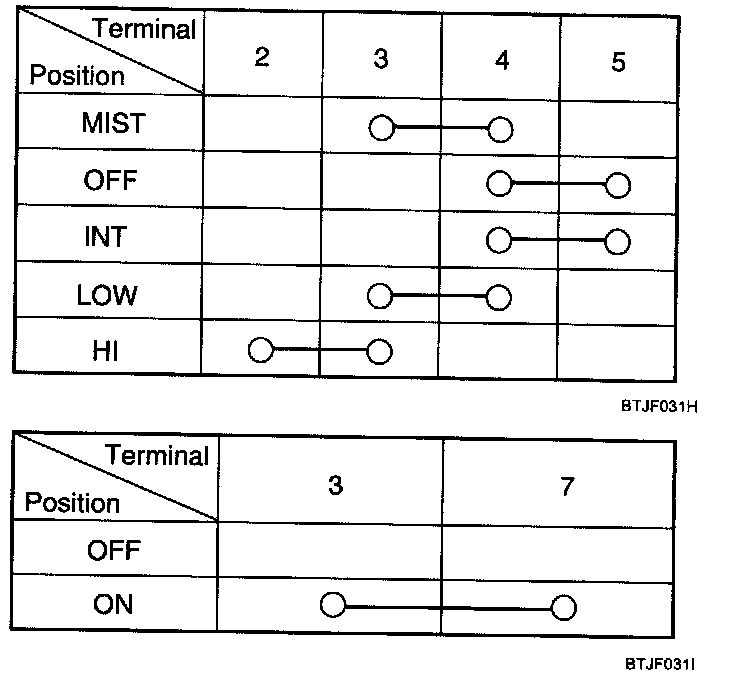

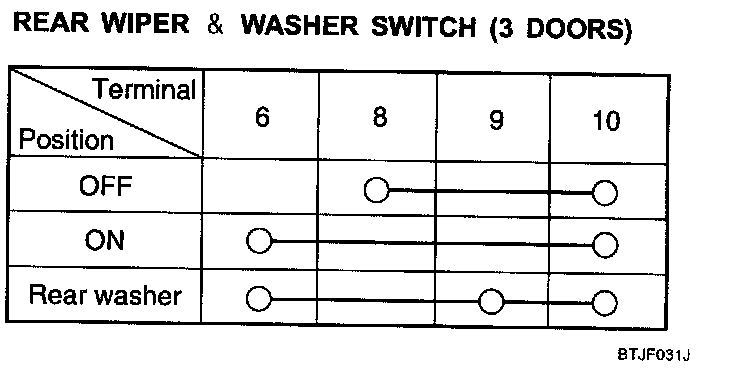

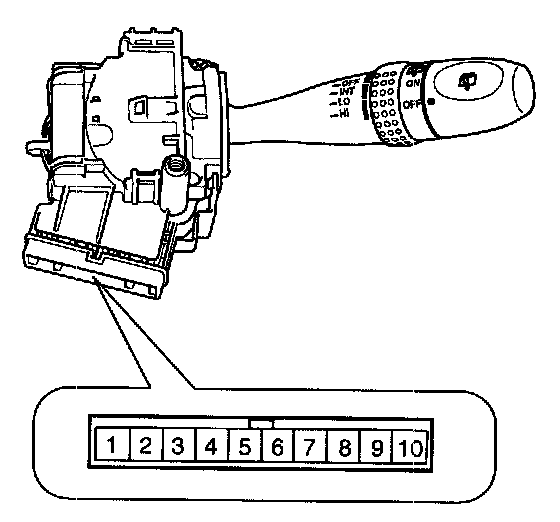

WIPER AND WASHER SWITCH INSPECTION
With the multi-function switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multi-function switch.
