Downshift Switch: Service and Repair
KICK DOWN SWITCHDESCRIPTION
The adjust sleeve and the retainer constitute the contacts of the kick-down servo switch. The switch detects the position of the kickdown piston just before the kick-down brake is applied, and sends the signal to the transaxle control module.
When the kickdown servo is not in operation, the switch contacts are kept closed. When the hydraulic pressure is applied to the kick-down servo, the piston operates, and the adjust sleeve separates from the retainer, thus turning off the switch.

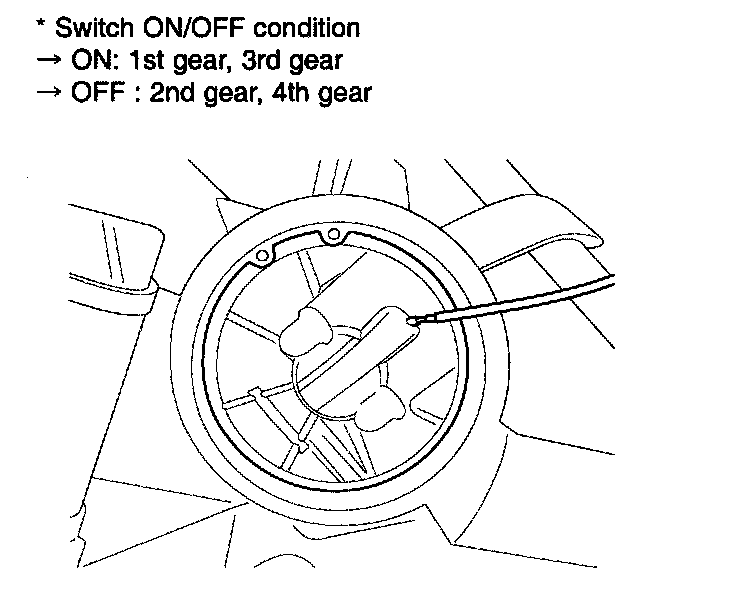

^ Switch ON/OFF condition
-> ON: 1st gear, 3rd gear
-> OFF: 2nd gear, 4th gear
ADJUSTMENT
1. Completely remove all dirt and other contaminating materials adhered around the kickdown adjust screw.
2. Loosen the lock nut.

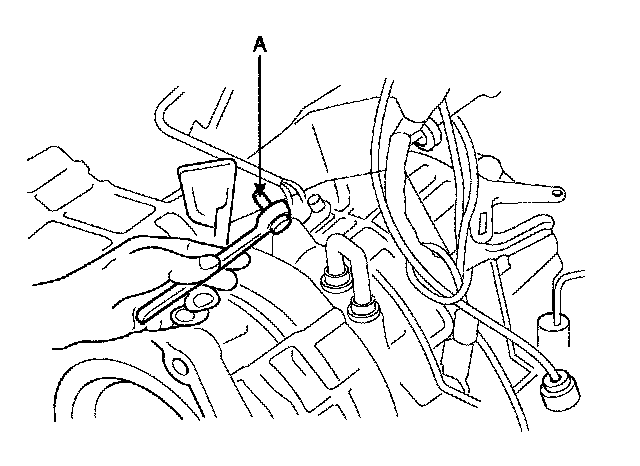

3. Loosen and tighten the adjust screw(A) two times by torque of 5 Nm (50 kg-cm, 4 lb-ft).
4. Tighten adjust screw by torque of 5 Nm and then, loosen the adjust screw 3 to 3-1/3 turns.
5. Tighten the lock nut to the specified torque.
Lock nut: 15-22 Nm (150-220 kgf.cm, 11-15 lb-ft)
NOTE: Before assembling, apply sealant (DC780) to the center portion of the adjust screw.
