Windshield Washer Motor: Service and Repair
FRONT WASHER MOTORREPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper cover.
3.

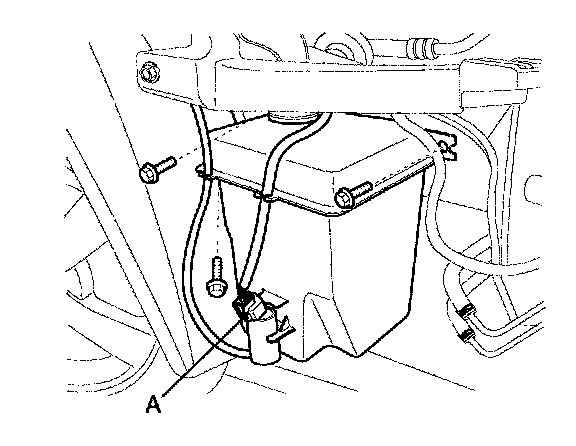

Remove the washer hose and the washer motor connector (A).
4.
Remove the washer reservoir after removing 3 bolts.
5.
Installation is the reverse of removal.
