Desiccant

DESICCANT

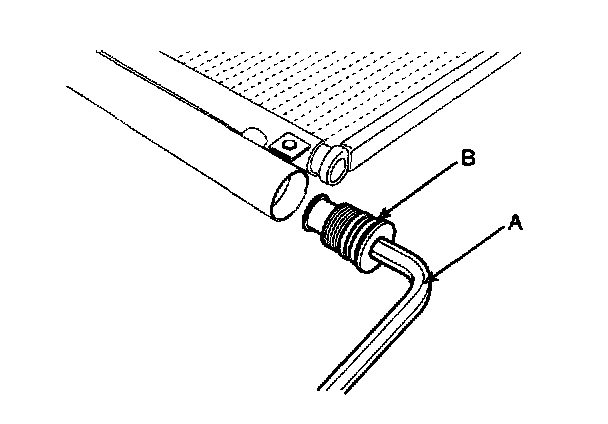

1. Remove the condenser, and then remove the bottom cap (B) with L wrench (A) from the condenser.

TORQUE: 20-25 N.m (2.0-2.5 kgf.m, 14.5-18.2 lb.ft)




2. Remove the desiccant (A) from the receiver/drier tank using a long nose plier.

NOTE:
- Always replace the desiccant and bottom cap at the same time.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Be sure to install the lower mount cushions of condenser securely into the holes.
- Charge the system, and test its performance.
