Installation
INSTALLATION1. Before installation, grease the inner side of the bearing, the boot, and the dust cover

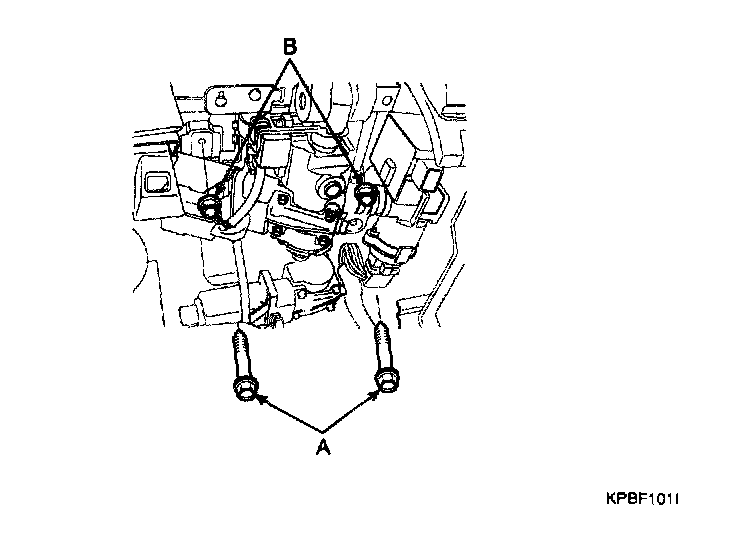

2. Install the steering column mounting bolts (A) and nuts (B)
Tightening Torque Nm (kgf-m, lb-ft): 13-18 (1.3-1.8, 9.4-13)
CAUTION: Connect the universal joint to the pinion shaft of the gear box In advance.

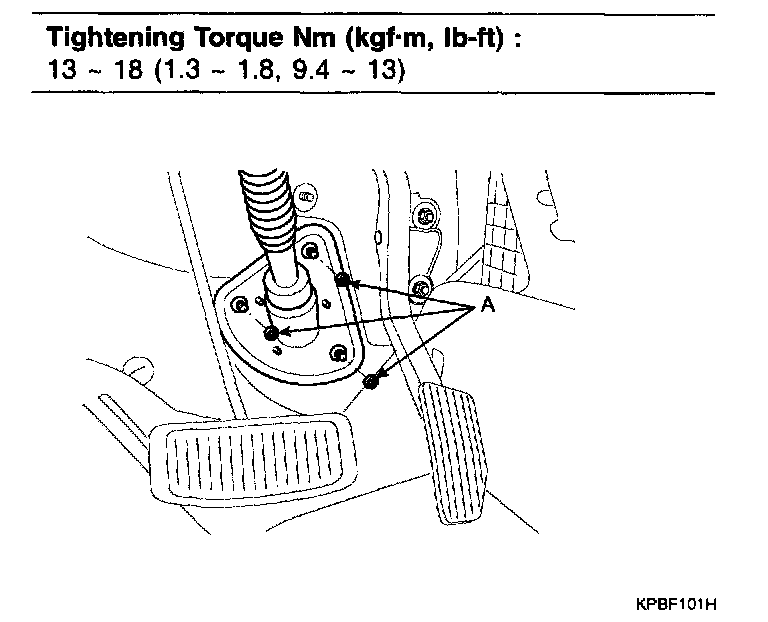

3. Install the dust cover mounting nuts (A).
Tightening Torque Nm (kgf-m, lb-ft) 13-18 (1.3-1.8, 9.4-13)

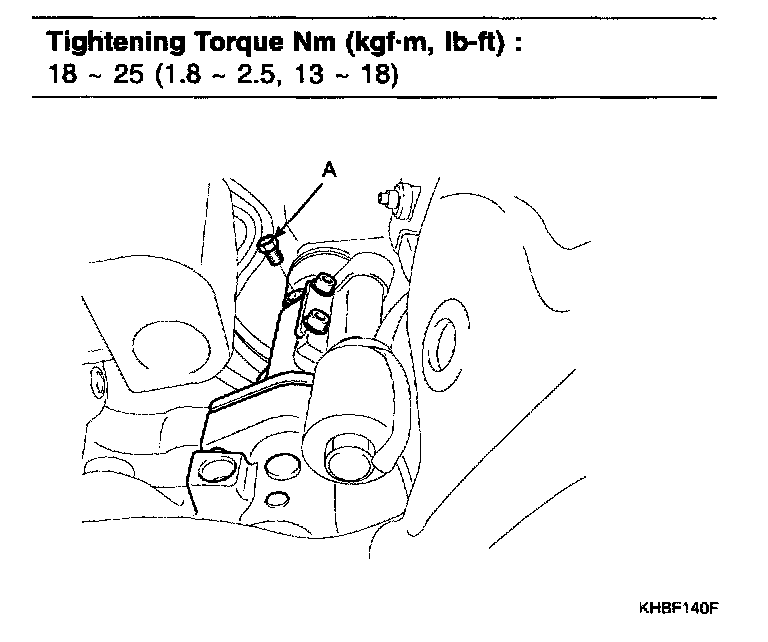

4. Install the connecting bolt (A) between the universal joint and the pinion shaft.
Tightening Torque Nm (kgf-m, lb-ft) 18-25 (1.8-2.5, 13-18)

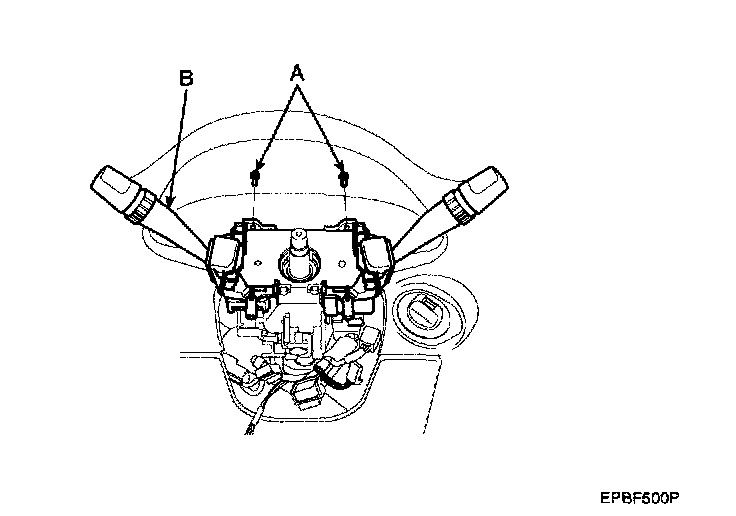

5. Install the multifunction switch (B) mounting screws (A) and the connectors.

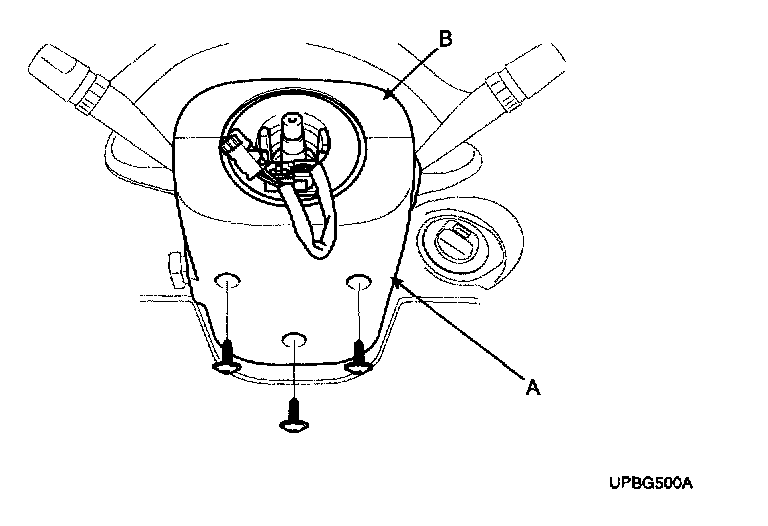

6. Install the steering column lower (A) and upper (B) shrouds.

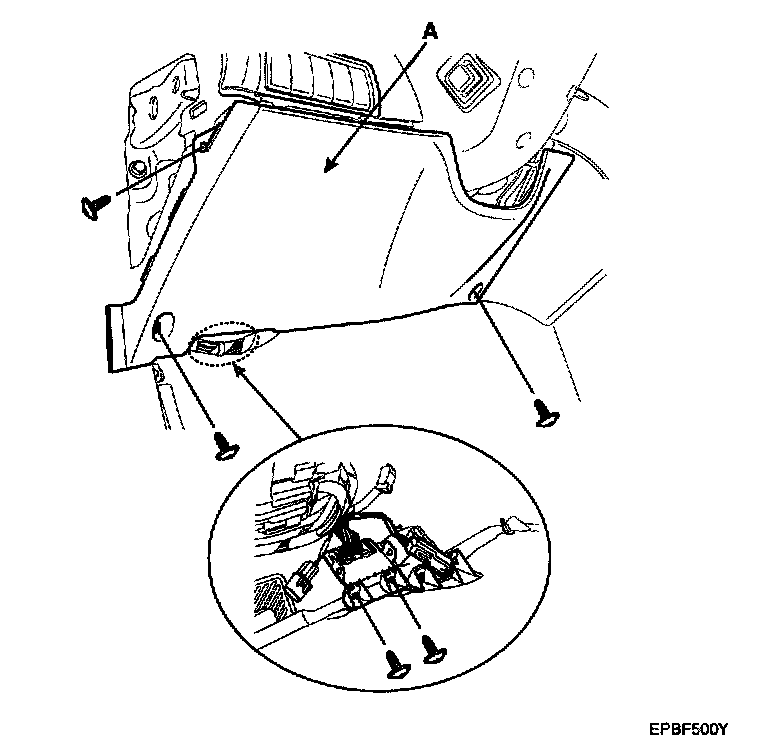

7. Install the crush pad lower cover (A).

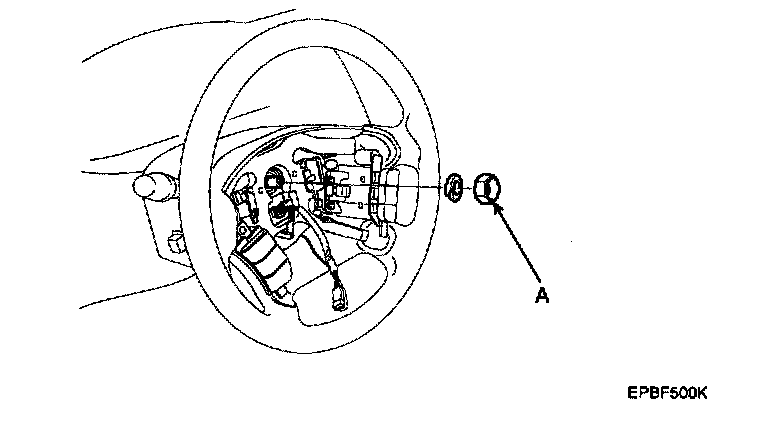

8. Install the steering wheel locking nut (A).
Tightening Torque Nm (kgf-m, lb-ft) 40-50 (4-5, 28.9-36.1)

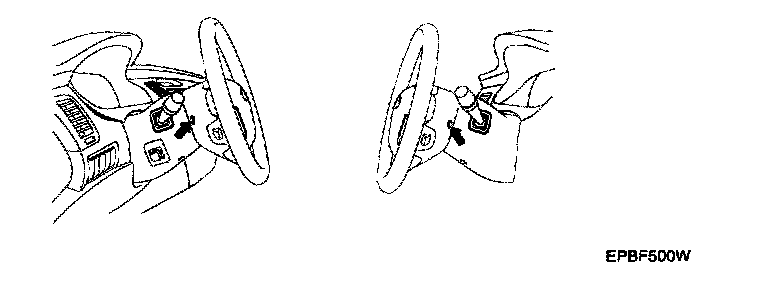

NOTE: Check that the front wheels is in the right direction in advance.
9. Install the horn pad (A) to steering wheel and tighten the bolts.
10. Connect the negative (-) terminal (A) to the battery.
