KEYLESS ENTRY AND BURGLAR ALARMINSPECTION

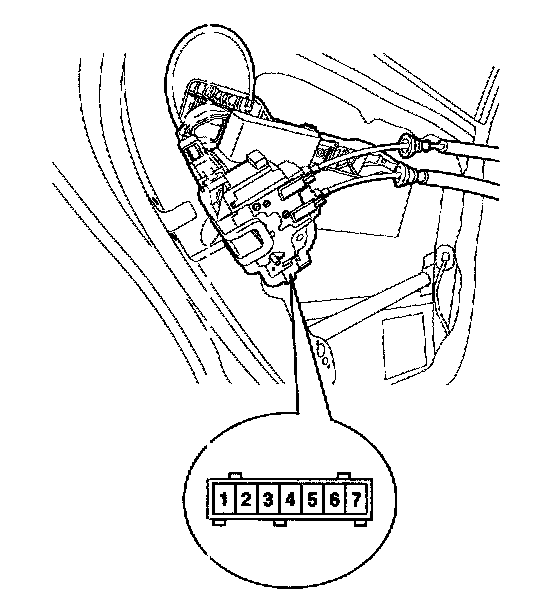

FRONT DOOR LOCK ACTUATOR
1. Remove the front door trim panel.
2. Disconnect the 7P connector from the actuator.
3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

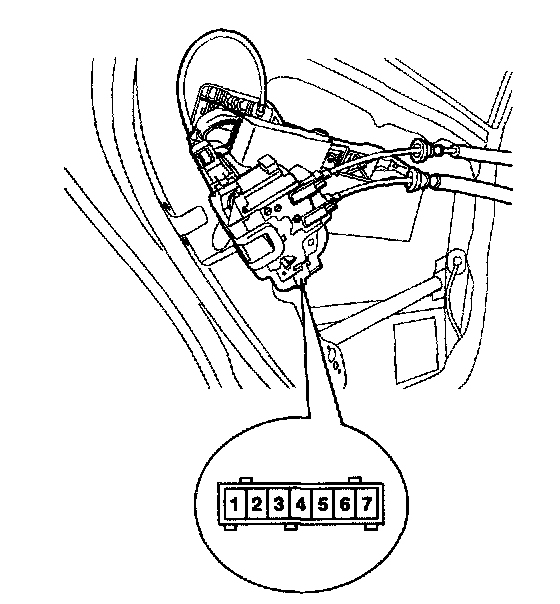

REAR DOOR LOCK ACTUATOR
1. Remove the rear door trim panel.
2. Disconnect the 7P connector from the actuator.
3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
TRUNK LID RELEASE ACTUATOR INSPECTION
1. Remove the trunk lid trim panel.
2. Disconnect the 3P connector from the actuator.
3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
FRONT DOOR LOCK SWITCH
1. Remove the front door trim panel.
2. Disconnect the 7P connector from the actuator.
3. Check for continuity between the terminals in each switch position according to the table.
REAR DOOR LOCK SWITCH
1. Remove the rear door trim panel.
2. Disconnect the 7P connector from the actuator.
3. Check for continuity between the terminals in each switch position according to the table.
TRUNK LID OPEN SWITCH
1. Remove the trunk lid trim panel.
2. Disconnect the 3P connector from the actuator.
3. Check for continuity between the terminals in each switch position according to the table.
DOOR SWITCH
Remove the door switch and check for continuity between the terminals.
HOOD SWITCH
1. Disconnect the 2P connector from the hood switch.
2. Check for continuity between the terminals and ground according to the table.
DOOR WARNING SWITCH
1. Remove driver crash pad lower panel.
2. Disconnect the 6P connector from the door warning switch.
3. Check for continuity between the terminals in each position according to the table.
BURGLAR HORN
1. Remove the burglar horn after removing 2 bolts and disconnect the 2P connector from the burglar horn.
2. Test the burglar horn by connecting battery power to the terminal 1 and ground the terminal 2.
3. The burglar horn should make a sound. If the burglar horn fails to make a sound replace it.
