Replacement

REPLACEMENT

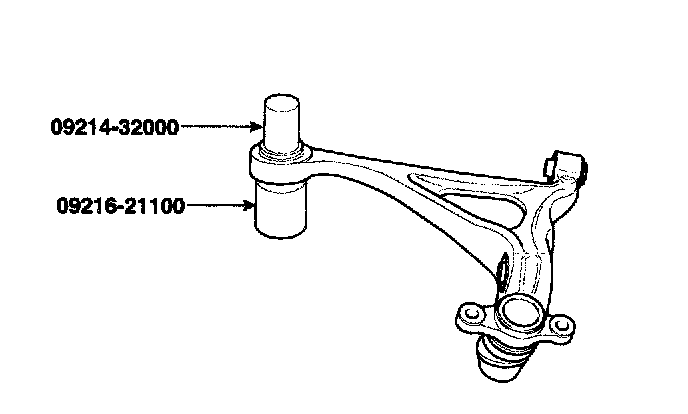

1. Using the special tools(09214-32000 & 09216-211000), remove the bushing from the lower arm.





2. Apply soap solution to the following parts.
^ Outer surface of the bushing.
^ Inner surface of the lower bushing mounting part.

3. Using the special tools (09214-32000 & 09216-21100), install the busing on the lower arm.





CAUTION: Insert bushing in the direction shown in the illustration.

Separation force is over 800 Nm (800Kgf, 1763 lb. ft)
