Alarm Module: Service and Repair

IMMOBILIZER CONTROL UNIT

REMOVAL
1. Disconnect the negative (-) battery terminal.

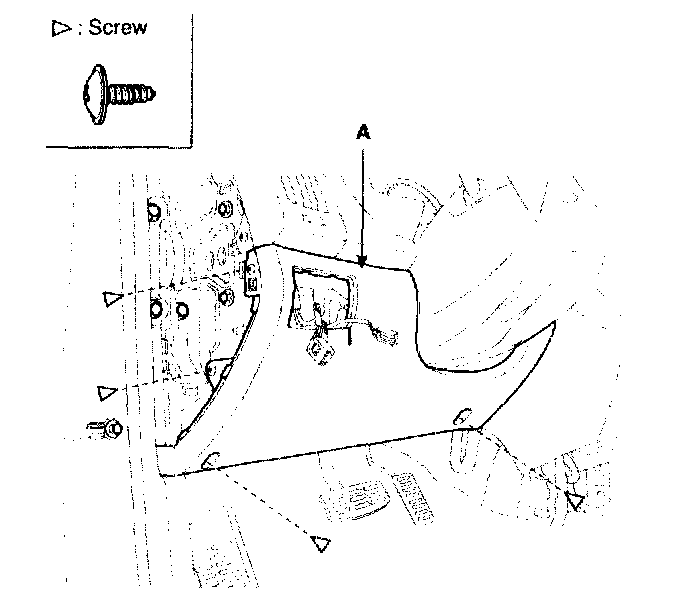

2. Remove the driver crash pad lower panel(A) after removing side cover.

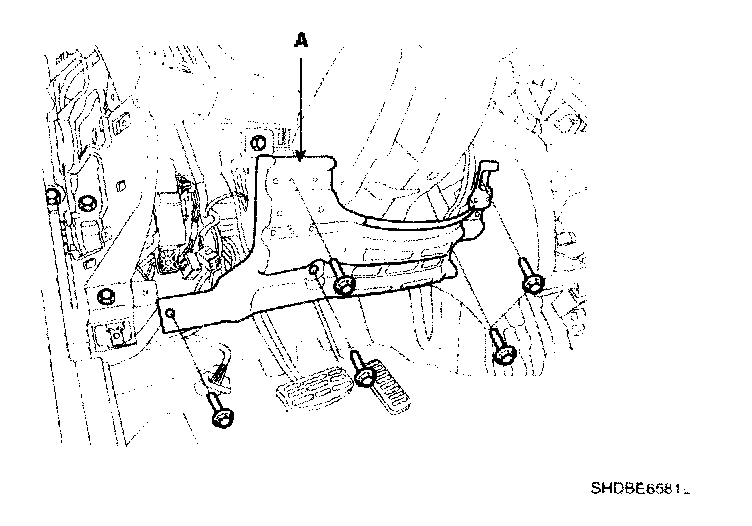

3. Remove the driver crash pad reinforcing panel (A) after loosening 5 bolts.

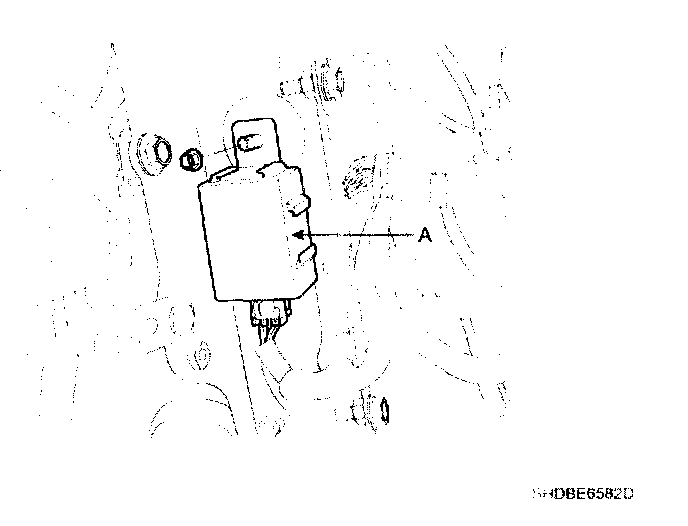

4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut.

INSTALLATION
1. Install the immobilizer control unit after connecting the unit connector
2. install the driver crash pad reinforcing panel
3. Install the driver crash pad Lower panel.
