Power Door Lock Switch: Testing and Inspection

POWER DOOR LOCK SWITCH

INSPECTION

DRIVER DOOR LOCK SWITCH
1. Disconnect the negative (-) battery terminal.

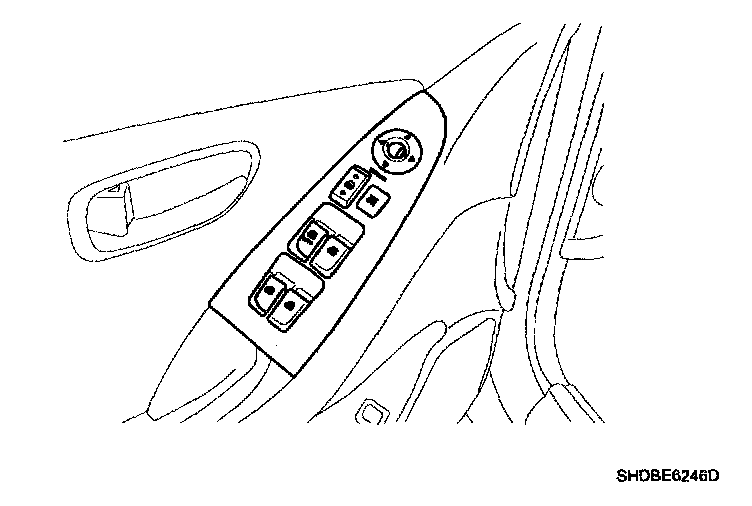

2. Remove the front door trim and power window switch module.

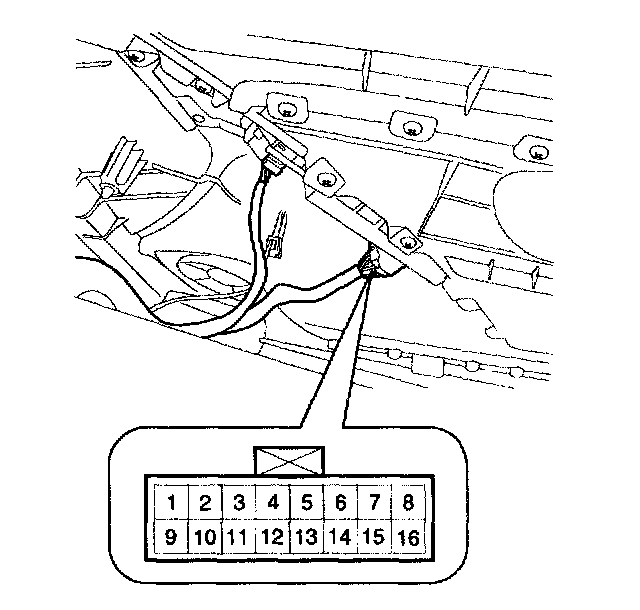

3. Disconnect the connector from the switch.

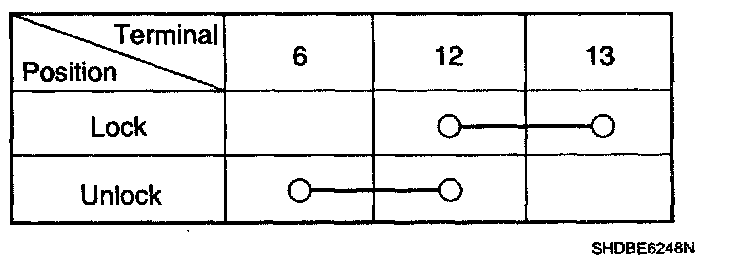

4. Check for continuity between the terminals in each switch position according to the table.
