Power Mirror Switch: Testing and Inspection

POWER DOOR MIRROR SWITCH

INSPECTION
1. Disconnect the negative (-) battery terminal.

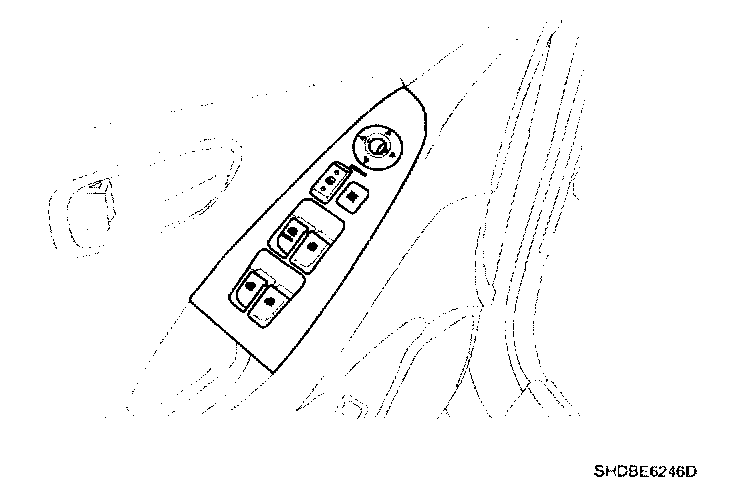

2. Remove the front door trim and power window switch module.

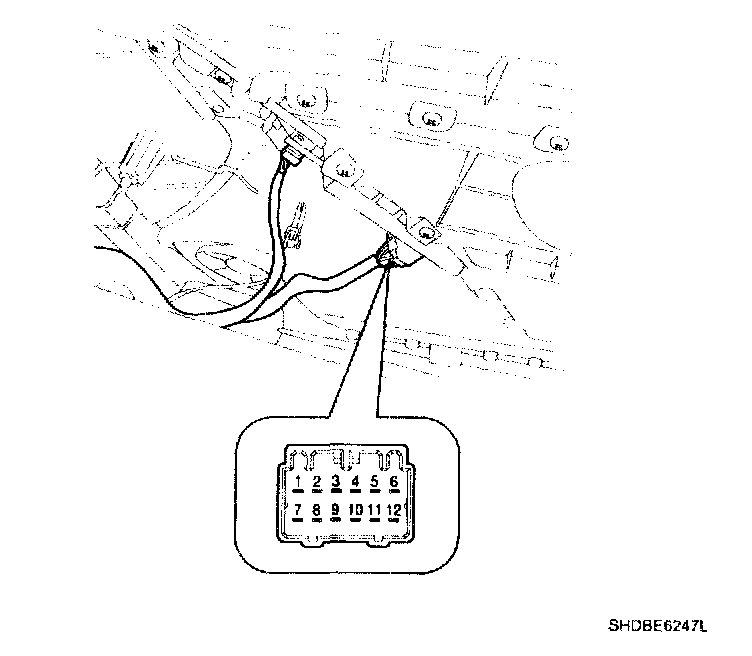

3. Check for the continuity between terminals of power door lock switch according to the table.

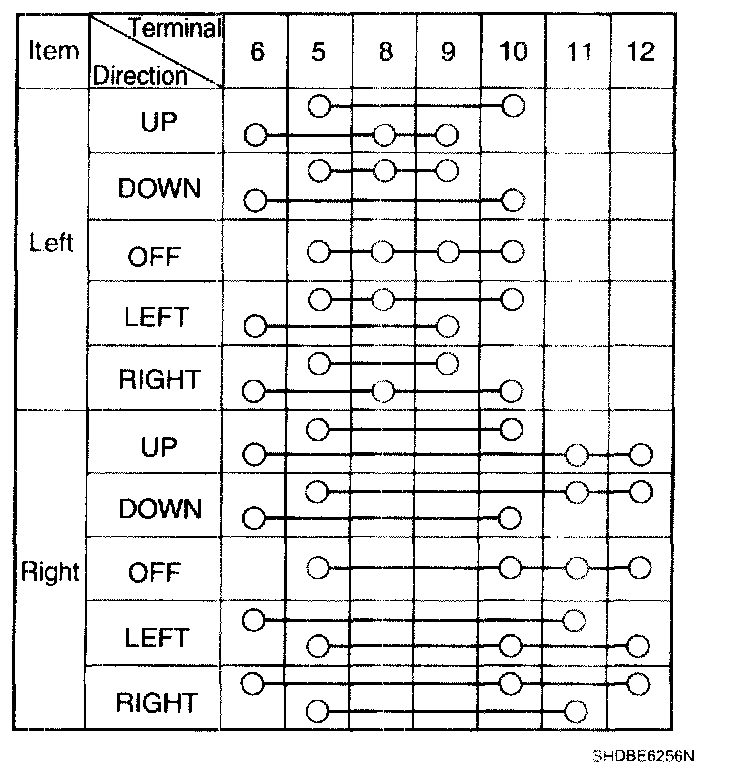

4. Check for continuity between the terminals in each switch position according to the table.
