Radio/Stereo

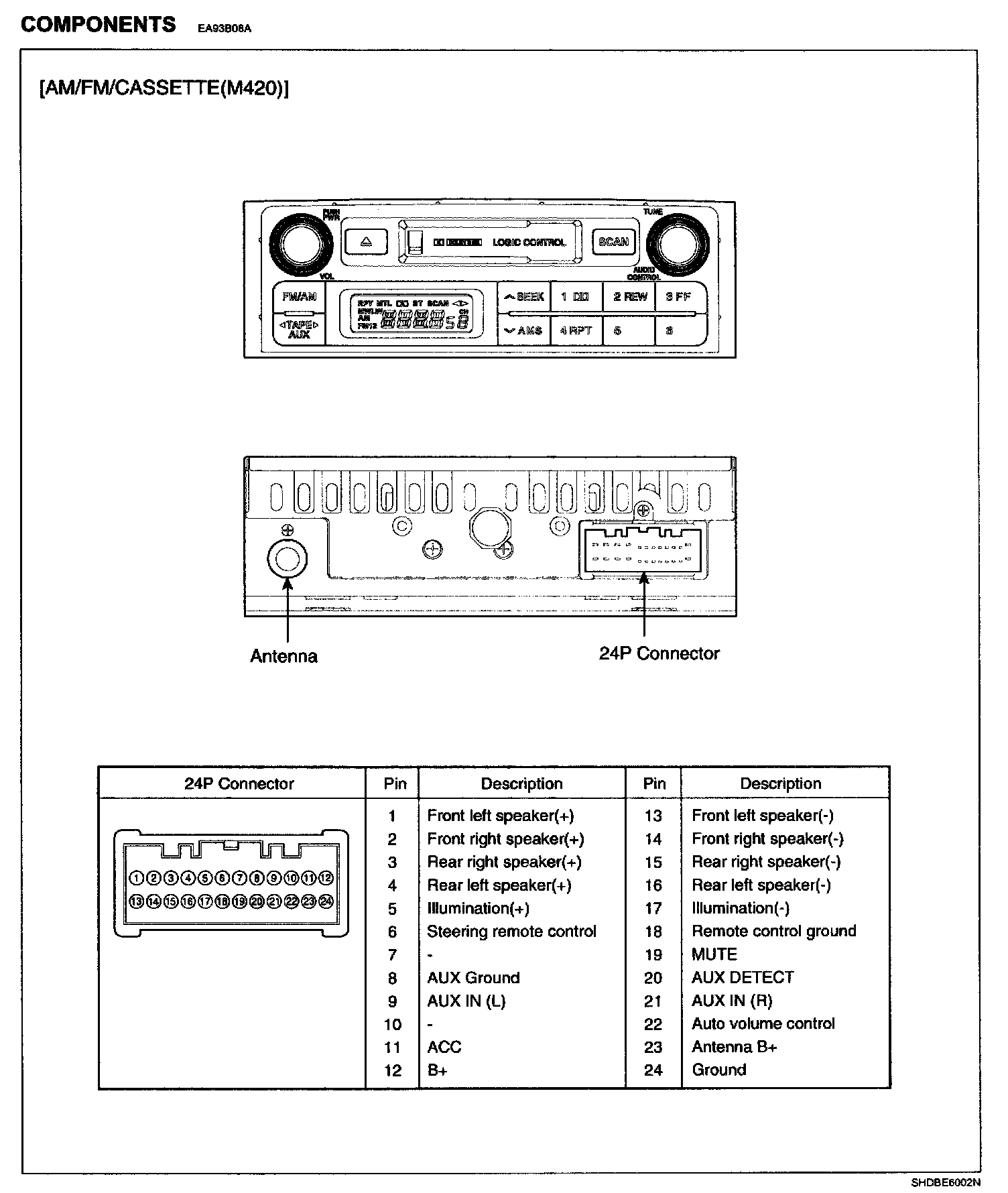

AM/FM/CASSETTE(M420):

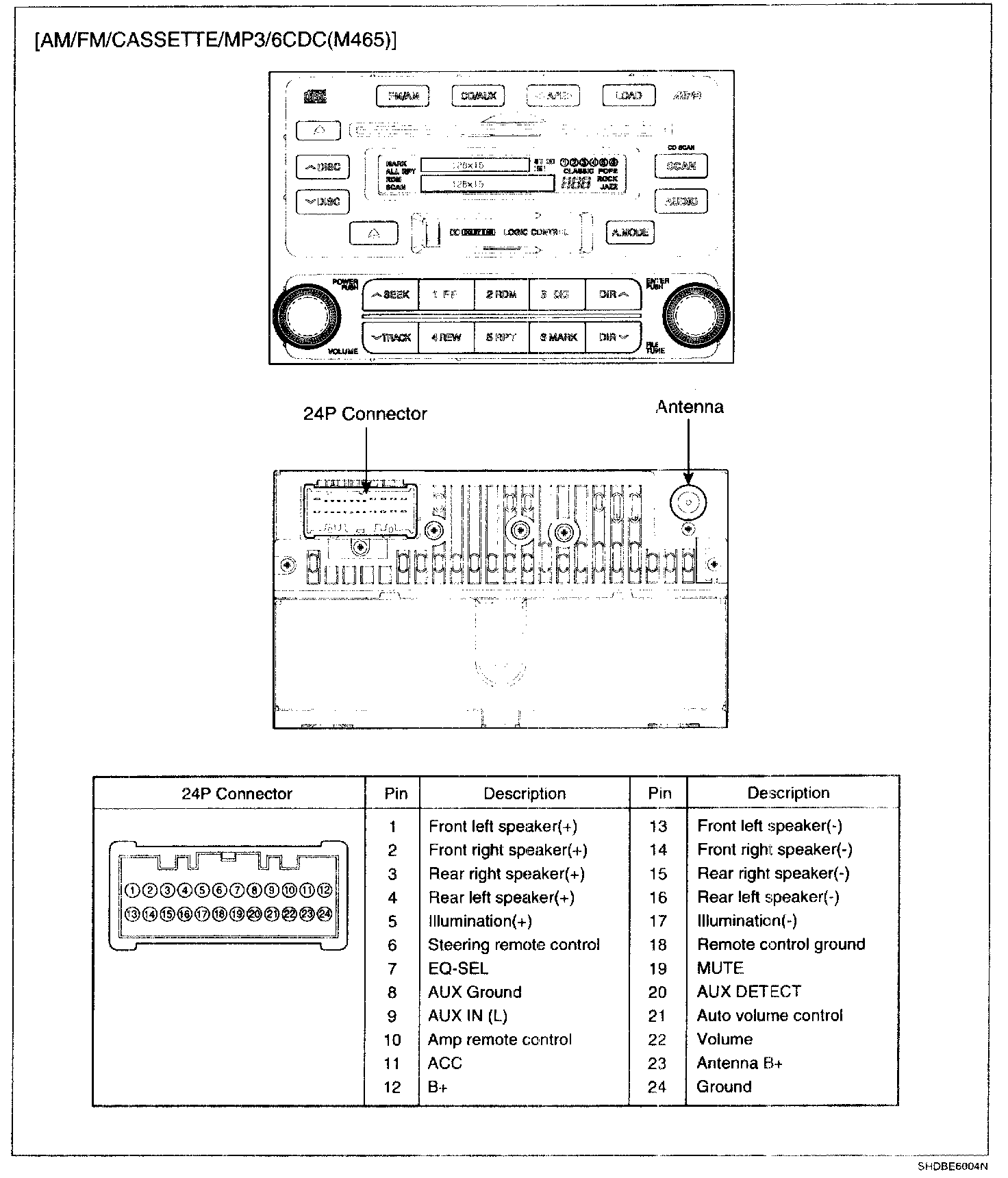

AM/FM/CASSETTE/MP3/6CDC(M465):

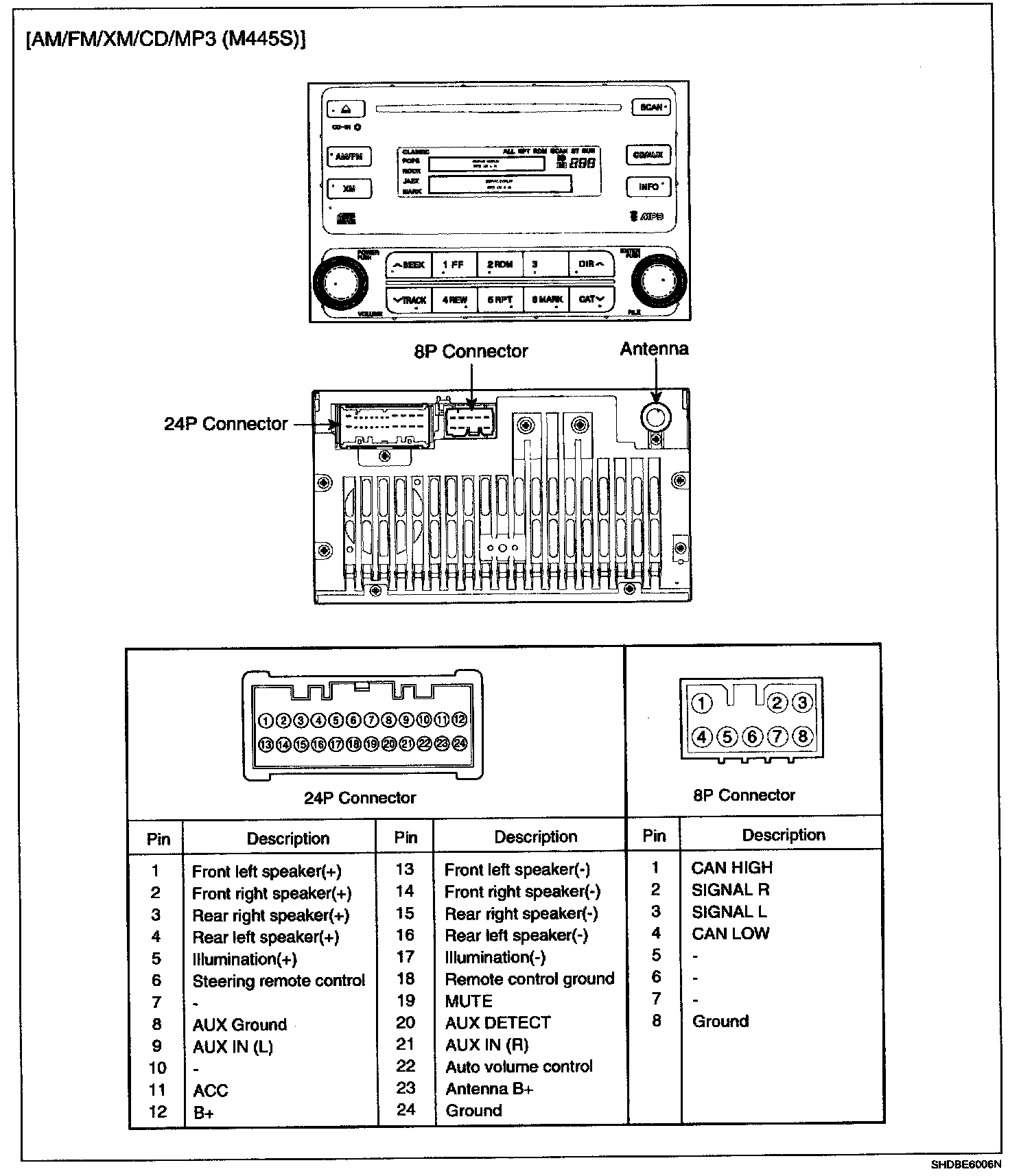

AM/FM/XM/CD/MP3(M445S):

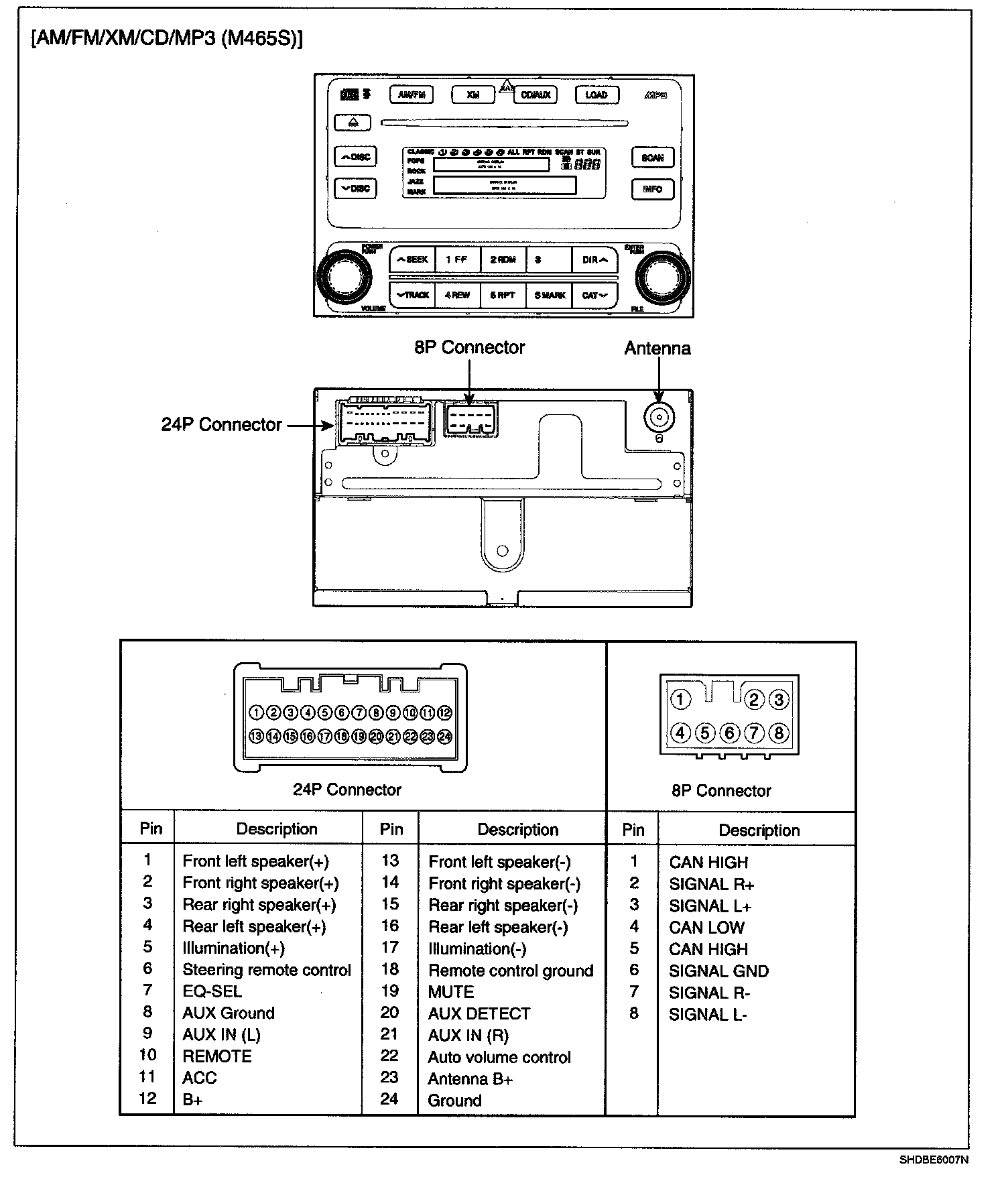

AM/FM/XM/CD/MP3(M465S):

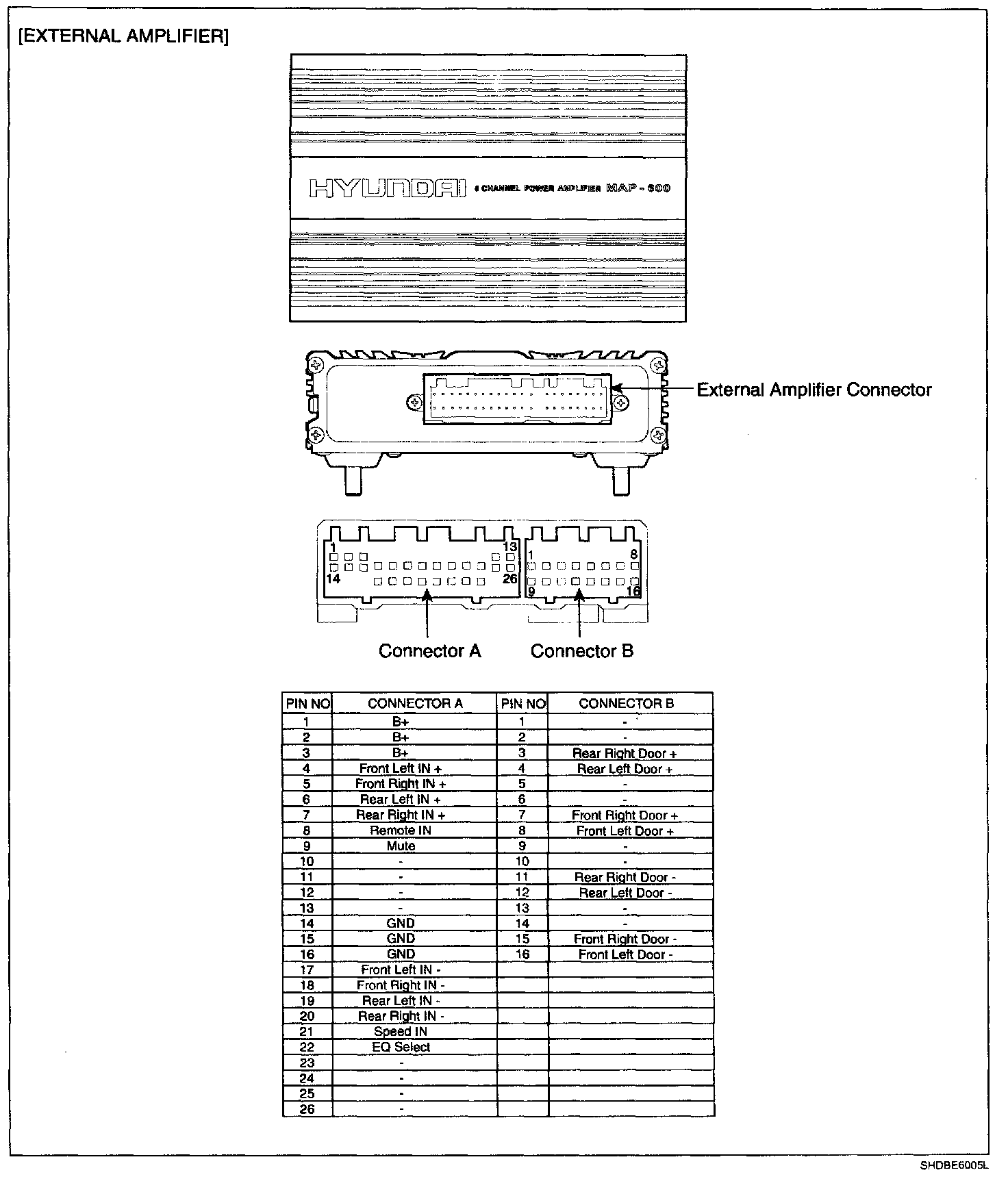

External Amplifier:

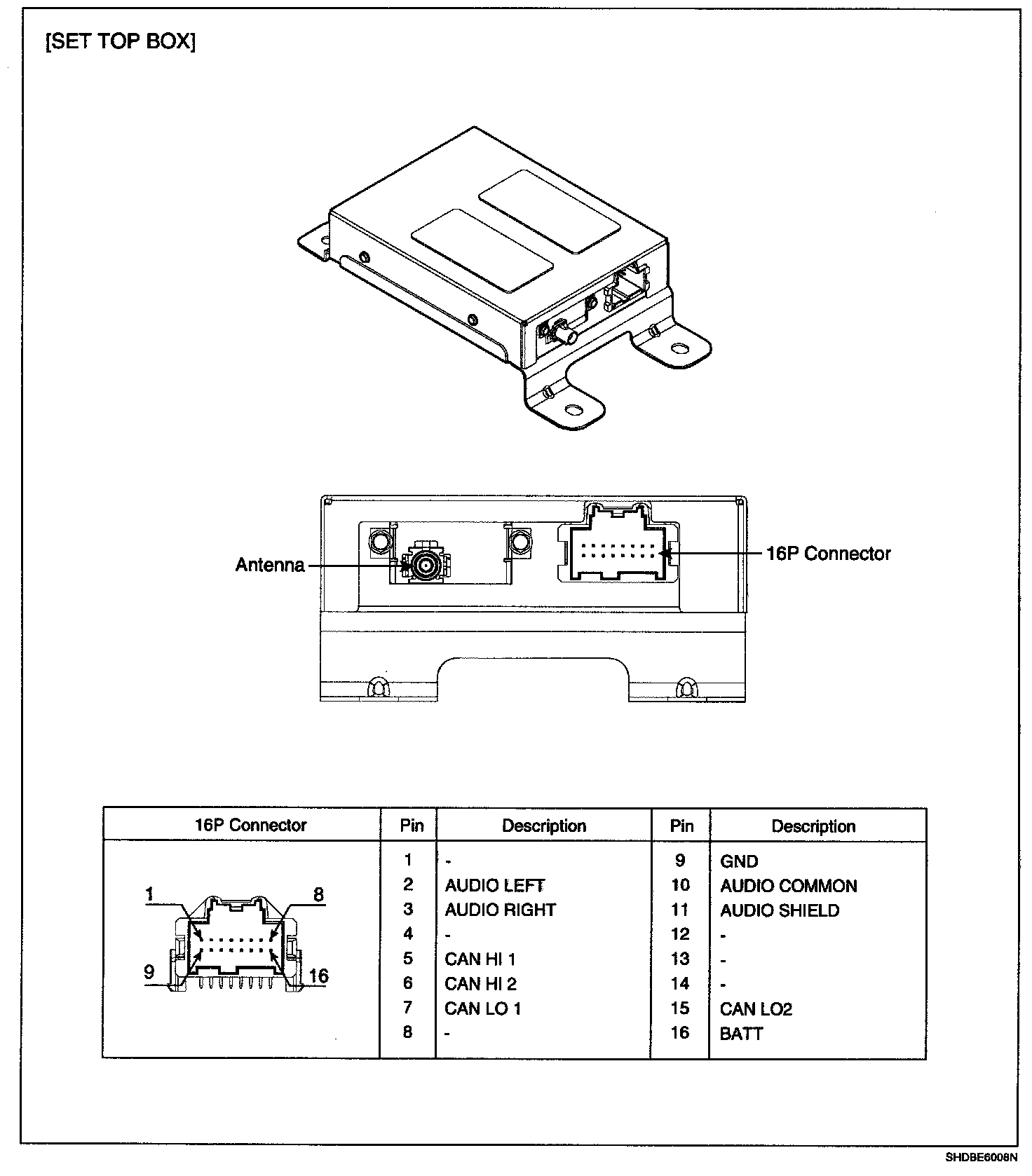

Set Top Box:
