Blower Motor Relay: Service and Repair
BLOWER RELAYREPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Disconnect the connector of the blower relay at the below blower unit.
3.

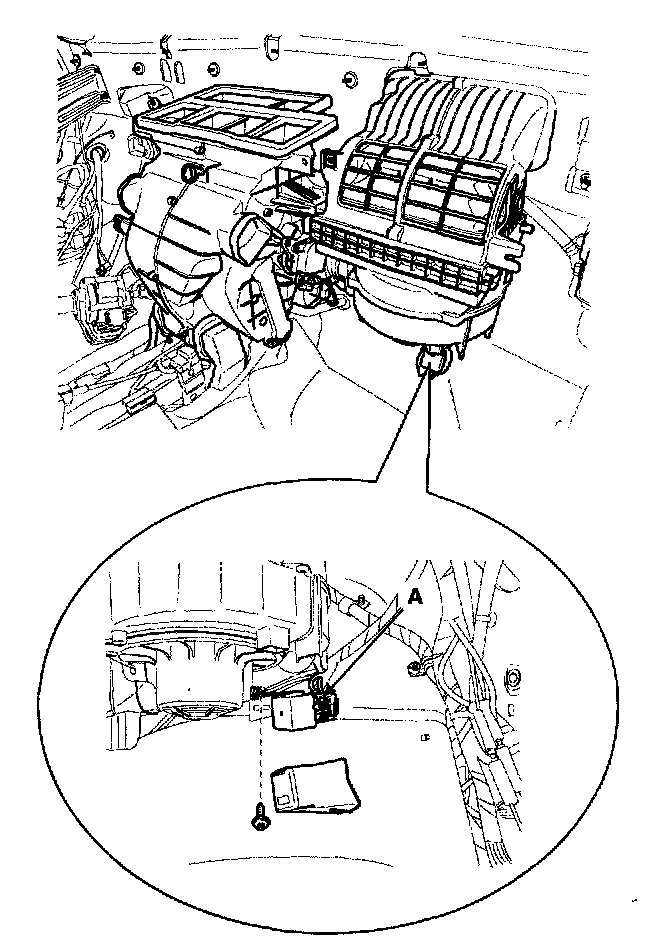

Remove the blower relay (A) after loosening the mounting screw.
4.
Install in the reverse order of removal.
